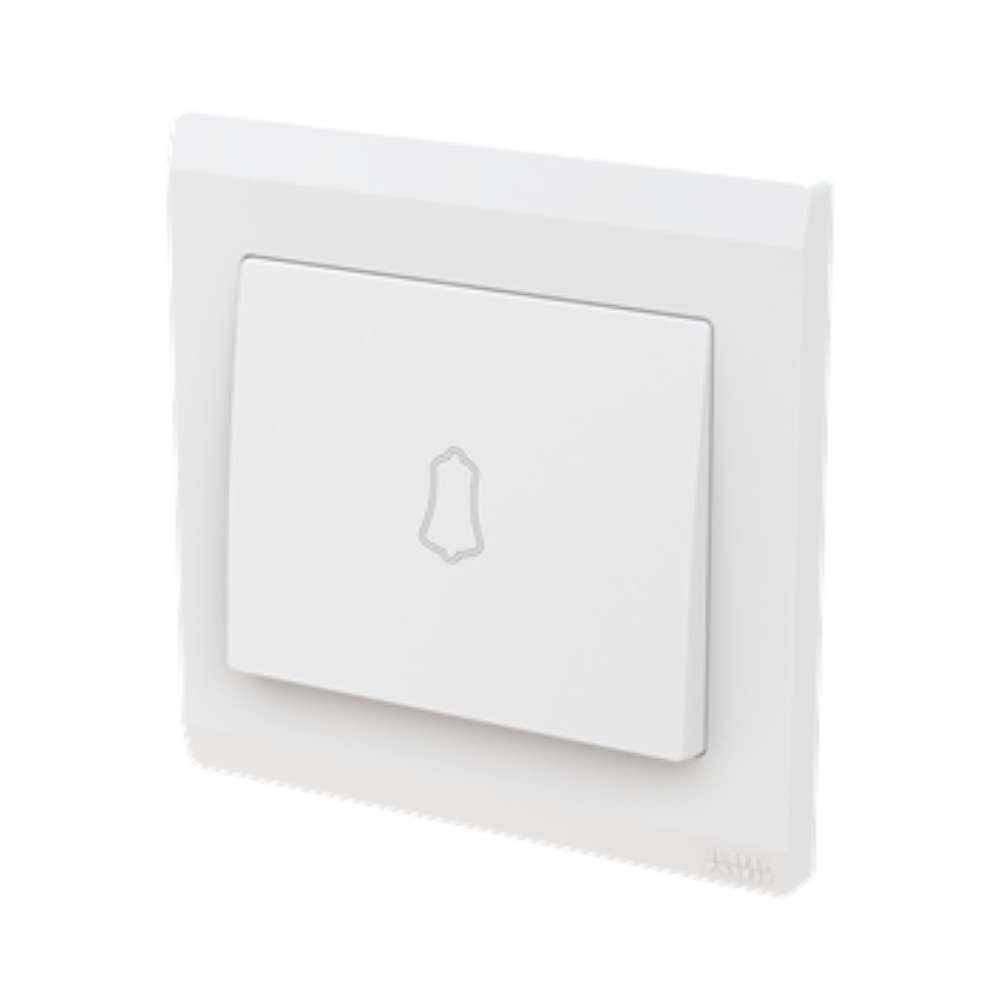

ABB Inora 1 Gang 1 Way 10A Bell Push Switch White BL429

Isolate the circuit if maintenance around the terminals is required. Clean the faceplate with a soft, lightly damp cloth and avoid solvents, abrasive cleaners or excessive water. Periodically check for loose mounting, sticking operation, discoloration, heat damage or cracking, particularly in high-use entrances and dusty construction environments.

The electrician should verify terminal tightness, conductor identification, earthing where applicable, continuity, insulation resistance, polarity and compatibility with the protective device. The push action should then be tested to confirm that the bell operates correctly and stops or resets when the button is released. Any transformer, relay or smart-control interface should also be checked for overheating or abnormal operation.

Cable selection depends on whether the system uses extra-low voltage, mains voltage, a transformer, a relay or an automation input. The conductor size, insulation rating, containment and circuit protection must suit the connected equipment and applicable UAE wiring requirements. Low-voltage signalling cables should be segregated from mains wiring where required.

It should be installed near the main entrance in a visible and accessible position, clear of door movement, water exposure and sharp architectural edges. The final mounting height should follow the consultant's drawings, accessibility requirements and local authority or project specifications. For villas and external entrances, shading and weather protection are especially important.

Although the stated rating is 10A, this model is identified and marked as a door bell push switch. Door bell push mechanisms are generally intended for brief activation rather than continuous control of lighting, fans, socket outlets or appliances. Use a purpose-designed maintained switch, contactor or relay for those loads and follow the relevant circuit design requirements.

It may be used as a manual trigger for compatible smart home, relay, door-entry or security systems when the controller accepts the switch's contact type. Do not connect it directly to electronic control inputs unless the required voltage and contact arrangement have been confirmed. An isolation relay or interface module may be necessary.

An ingress-protection rating is not provided in the listed product information, so the switch should not be assumed to be weatherproof. For exposed UAE entrances, gates or boundary walls, install it only inside a suitable rated weatherproof enclosure or choose a dedicated outdoor push switch with the required IP rating, UV resistance and temperature suitability.

It can be fitted on common construction surfaces using the correct flush or surface-mounted box. Blockwork installations require properly aligned conduit and a secure embedded box, while drywall requires a suitable cavity box. On tiled walls, the opening should be accurately cut and the box kept level so the 86 x 86 mm plate sits flat without stressing the tile or switch body.

Yes, it can be incorporated into concealed electrical installations when a compatible flush back box and suitable conduit are positioned during first-fix work. Contractors should coordinate the entrance location, finished wall level, box depth, cable route, door bell transformer and chime position before plastering, tiling or cladding begins.

The switch has listed overall dimensions of 35.2 x 86 x 86 mm and is intended for a single-gang installation. Select a back box that matches the switch fixing centres, mounting format and required depth. The box must also provide enough space for safe cable bending and terminal connections; installers should confirm physical compatibility before final wall finishing.

Isolate and verify the electrical supply before installation. Fit a compatible single-gang back box, route the specified cable, connect the conductors to the terminals according to the product and door bell wiring diagrams, secure the switch without overtightening, and align the 86 x 86 mm faceplate. Restore power only after continuity, insulation and functional checks have been completed. Installation should be performed by a qualified electrician.

Only if the bell or chime voltage, current and circuit design are compatible with the switch rating. Many modern chimes, video door-entry systems and smart door bells require low-voltage dry-contact inputs rather than direct 230V switching. Always follow the bell manufacturer's wiring diagram and use the specified transformer, relay or interface module where required.

The switch is suitable for consideration in UAE residential and commercial projects when its voltage, load and wiring arrangement match the door bell system. UAE supplies are generally 230V at 50Hz, but many door bells operate through a low-voltage transformer or dedicated power supply. A qualified electrician should confirm compatibility and install it in accordance with the applicable UAE authority regulations and project specifications.

This modern white single-gang wall switch is designed to control a doorbell or door chime and can be integrated into a home automation setup. It provides push-button control and an on/off switch for automation tasks, with a 10A rating suitable for typical doorbell circuits.
