ABB Inora 1 Gang 13A Unswitched Fused Connection Unit White BL506

Keep the faceplate clean and dry, using a soft cloth without abrasive or solvent-based cleaners. During planned electrical maintenance, isolate the supply and inspect the unit for loose mounting, cracking, overheating, discolouration or damaged terminals. Any internal inspection, fuse replacement or rewiring should be performed by qualified personnel, with the circuit safely isolated and tested before being returned to service.

Do not repeatedly replace the fuse or fit one with a higher rating. Isolate the circuit and have a qualified electrician check for appliance faults, damaged cables, loose terminals, short circuits, earth leakage, overload or an incorrect fuse selection. The unit should also be inspected for heat damage or discolouration and replaced if its terminals, fuse carrier or housing have deteriorated.

Cable and fuse selection must be based on the connected load, appliance flex rating, installation method, ambient temperature, grouping, voltage drop and upstream protection. The fuse must protect the smallest downstream conductor and comply with the equipment manufacturer's instructions. UAE ceiling voids, service shafts and outdoor-adjacent spaces can experience high temperatures, so applicable cable derating factors should be included in the electrical design.

Before energising, the electrician should inspect conductor identification, terminal tightness, earthing, fuse selection and enclosure fit. Appropriate electrical tests may include protective-conductor continuity, insulation resistance, polarity, earth-fault loop impedance and RCD or RCBO operation where applicable. Results should be recorded as required by the project quality plan, consultant and relevant UAE authority.

The fuse provides overcurrent protection but an unswitched unit does not offer convenient local switching or normal double-pole isolation. If the appliance manufacturer or project specification requires nearby isolation for maintenance or emergency operation, a suitable switched fused connection unit or separate isolator should be installed. Isolation arrangements must comply with the circuit design and applicable UAE requirements.

Use in kitchens or bathrooms depends on the installation zone, environmental conditions, circuit protection and local regulations. No outdoor or water-ingress rating is stated in the supplied product data, so the unit should not be exposed directly to rain, water jets, condensation or excessive dust. For damp or outdoor locations, install it only inside a correctly rated enclosure or select a purpose-made weatherproof accessory with an appropriate IP rating.

The installer should review the latest local wiring regulations and project requirements together with the applicable standards for fused connection units and cartridge fuses, commonly including the relevant parts of BS 1363 and BS 1362. The exact ABB model's declaration of conformity, test certificates and authority approval should be confirmed rather than assuming compliance from the 13A rating alone.

Its 13A fused connection format is relevant to UAE projects that use British-style wiring accessories. For project acceptance, the consultant or contractor should verify the exact product certification and compliance documentation against the current UAE electrical regulations, applicable BS/IEC requirements, project specifications and the rules of the relevant local authority or utility. Approval requirements may differ between emirates and project types.

It may be suitable as a fused connection point on an appropriately designed ring-final or radial circuit, subject to the approved electrical design and local regulations. The circuit arrangement, conductor size, upstream protective device, RCD or RCBO protection, fault-loop conditions and permitted number of spurs must be verified by the project electrician. It should not be added to an existing circuit without confirming available capacity and protection coordination.

Installation should be completed by a licensed or suitably qualified electrician. The supply must be isolated, locked out where applicable and proven dead before work begins. Line, neutral and earth conductors should be identified and connected to the marked terminals, with supply and load conductors placed according to the product diagram. Use the specified cable size, avoid exposed copper, tighten terminals to ABB's recommended torque, fit the correct fuse and secure the unit squarely to a compatible single-gang back box.

The listed dimensions are approximately 17.4 × 86 × 86 mm, with a low-profile white finish suited to contemporary residential and commercial interiors. Contractors should verify the back-box depth, terminal space and final faceplate dimensions before procurement, particularly where conduit entries or multiple conductors occupy the box.

The unit is designed for a fuse connection rated up to 13A. Confirm whether a fuse is supplied in the package before installation, as packaging can vary. Where a fuse must be fitted or replaced, use an approved BS 1362 fuse with a rating selected to protect the connected appliance and flex; a 13A fuse should not be fitted automatically if the equipment requires a lower rating.

Typical applications include fixed fans, lighting equipment, extractors, control panels, small water-heating accessories, security equipment and selected kitchen or HVAC auxiliaries within the unit's electrical rating. The appliance load, starting current, cable size, manufacturer instructions and circuit protection must all be checked before connection. It should not be used for equipment drawing more current than the unit or installed fuse permits.

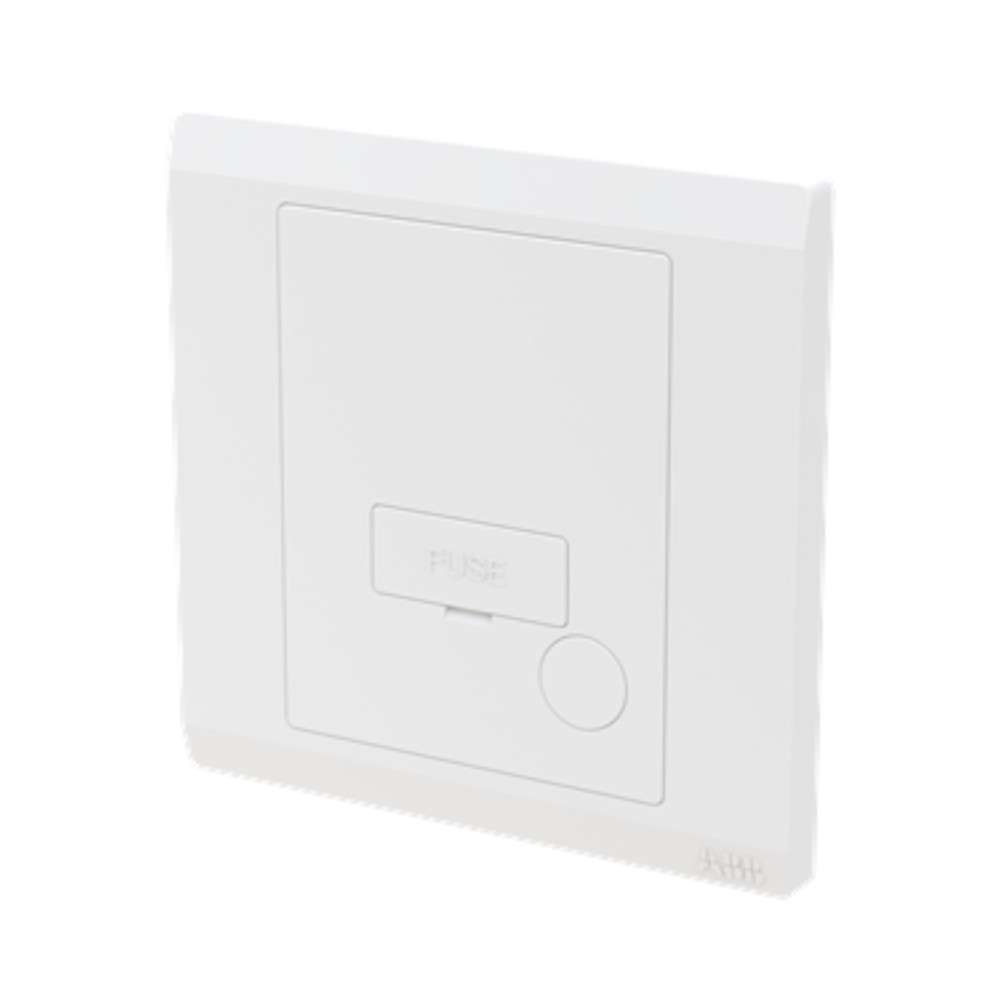

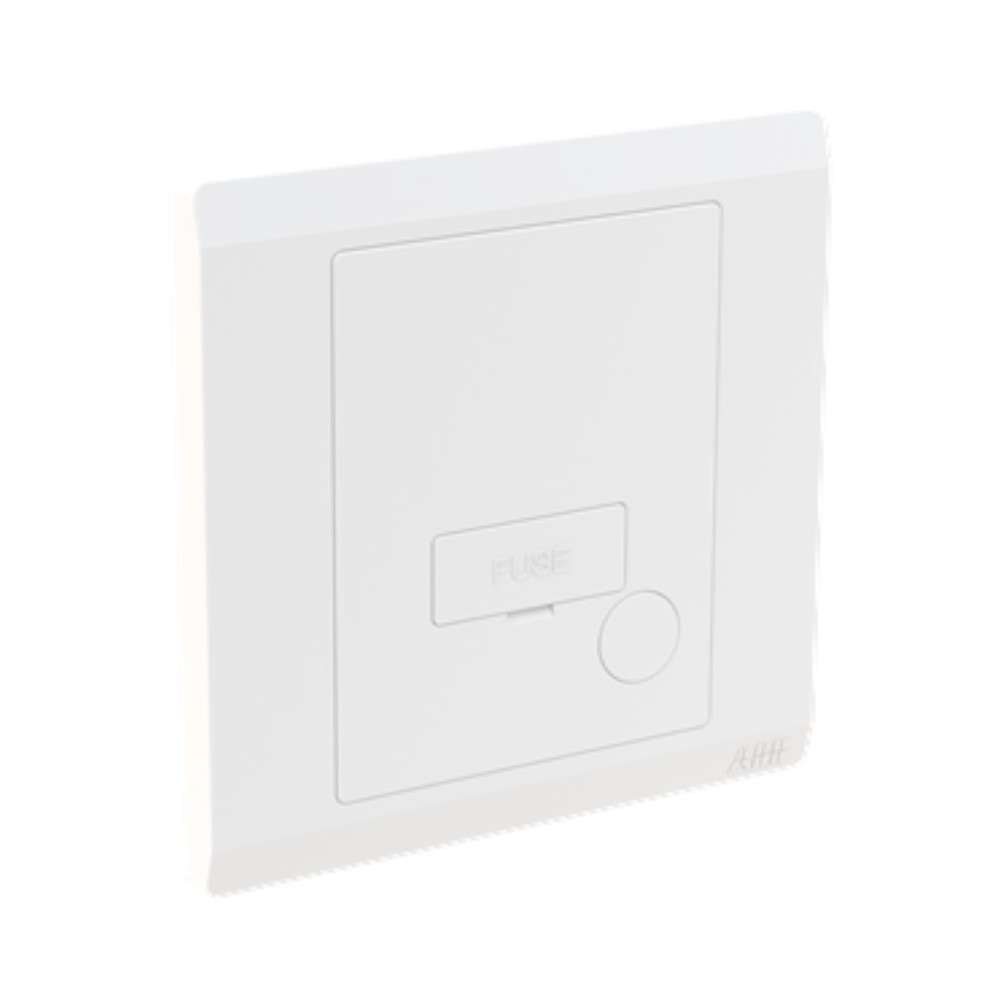

It's a single-gang white socket with an inline 13A fuse (fuse connection) that is unswitched, meaning there is no built-in on/off switch in the socket. It provides fused power for connected appliances while keeping a slim, modern profile in your wall space.
