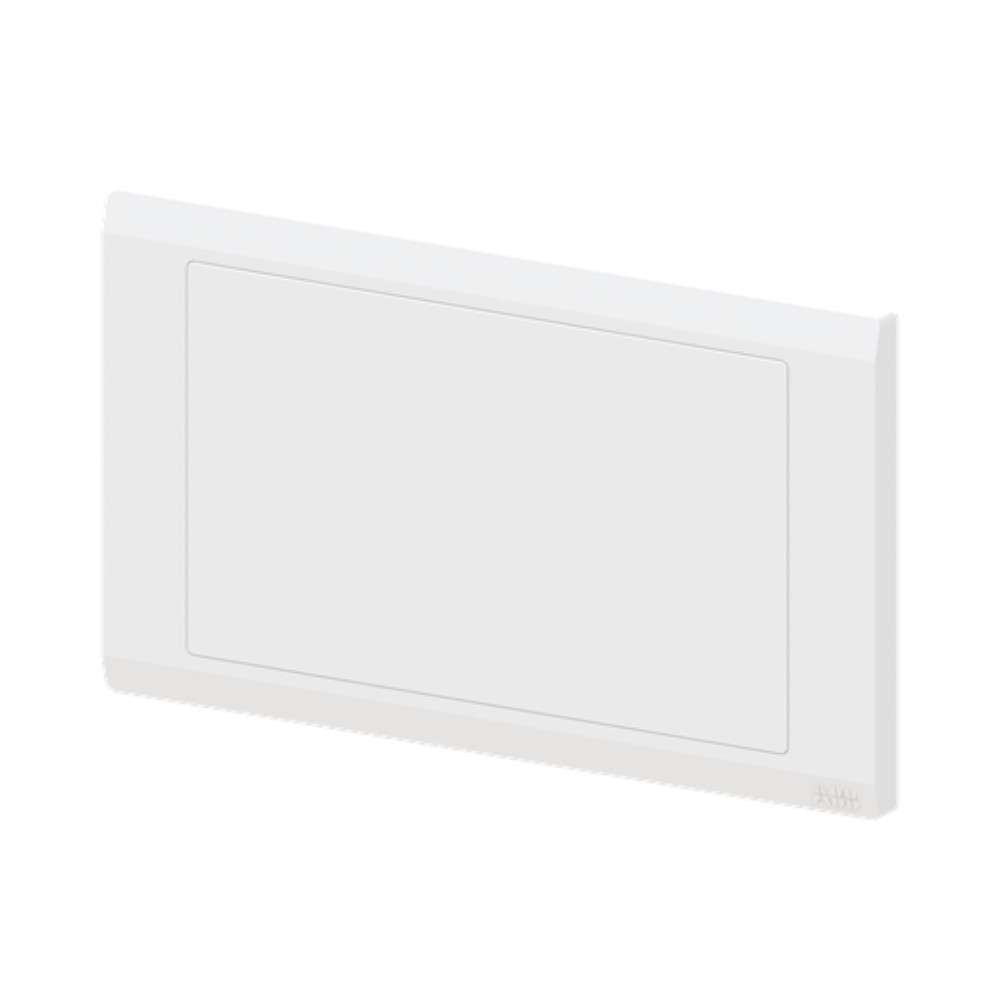

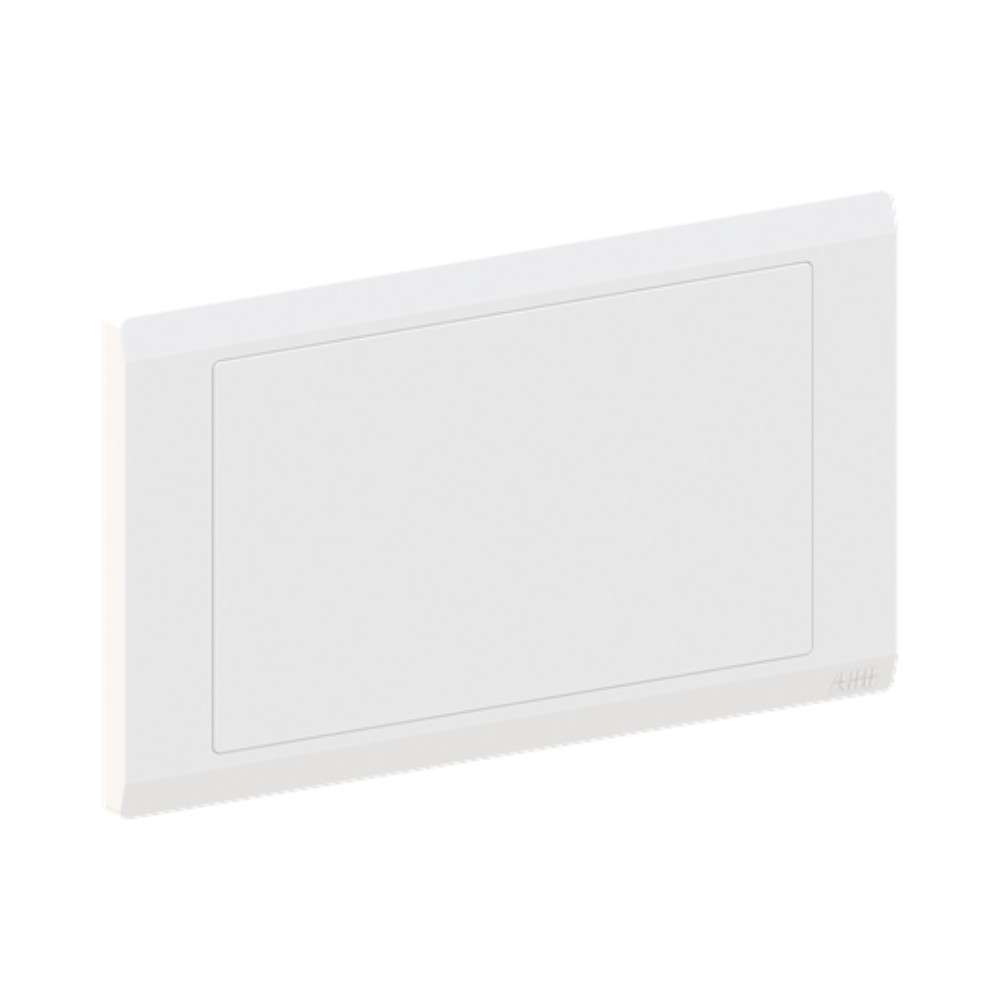

ABB Inora 2 Gang Blank Plate White BL505

Confirm the SKU 42196-NOS, white colour, 2-gang format, listed dimensions of 12.7 × 146 × 86 mm, mounting compatibility and required quantity. Also check the project finish schedule and whether the location requires a standard indoor plate or a specifically rated weatherproof accessory.

Isolate power if there are nearby electrical accessories, then wipe the surface with a soft, lightly damp cloth and dry it immediately. Avoid abrasive pads, harsh chemicals, solvents and excessive water, as these may mark the white finish or enter the electrical box.

The plate can conceal the normal edges of a correctly installed 2-gang back box, but it is not intended to repair broken plaster, oversized cut-outs or loose boxes. The substrate and back box should first be repaired and securely fixed so the plate sits flat without gaps or distortion.

Compatibility should not be assumed solely from the 2-gang description. Check the box dimensions, screw centres, mounting depth and accessory system before installation. For the most consistent alignment and finish, use the plate with a compatible ABB Inora mounting arrangement or a back box verified by the installer.

Yes. It is useful for temporarily or permanently closing reserved electrical points during phased fit-outs. Contractors can retain a 2-gang back box for a future socket, lighting control, fan control, smart-home device or other accessory while delivering a tidy and protected wall finish.

It may be used only where the installation location and enclosure satisfy the required moisture protection, electrical zoning and local regulations. Because no IP rating is specified, it should not be installed in splash zones or exposed wet locations unless it forms part of an approved, suitably rated enclosure.

No IP or weather-resistance rating is stated for this product, so it should not be assumed suitable for direct outdoor exposure, wet areas or dusty construction environments. For outdoor use, install electrical accessories only within a correctly selected weatherproof enclosure with an IP rating appropriate to the location and UAE site conditions.

The plate should be installed as part of an electrical system that complies with applicable UAE regulations and the requirements of the relevant authority, such as DEWA, ADDC or the local electricity provider. No specific UAE approval or certification is stated in the supplied product data, so project-specific compliance should be confirmed before procurement.

Yes, it is relevant for UAE residential, commercial and hospitality fit-outs where unused 2-gang electrical points need a clean finish or are being reserved for future services. The installer must confirm compatibility with the project specification, back-box system and requirements of the relevant local authority, consultant and utility.

Unused conductors may remain inside the back box only when they are correctly identified, individually insulated or terminated with approved connectors, and arranged so they are not pinched by the plate. A blank plate must not be treated as a substitute for safe cable termination or an approved junction-box arrangement.

Isolate the relevant electrical circuit, confirm it is de-energised with an approved tester, inspect and safely terminate any conductors inside the box, position the plate over the compatible 2-gang back box, and secure it using the correct fixings without overtightening. Installation should be completed by a qualified electrician in accordance with the accessory instructions and applicable UAE electrical requirements.

No. The BL505 is a solid blank plate and does not contain apertures for switches or sockets. Its 2-gang designation refers to the width of the wall box or opening it is intended to cover. If operational accessories are required, select compatible ABB Inora switch, socket or modular faceplate components.

A 2-gang blank plate covers a double-width electrical back box when switches, sockets, dimmers or control modules are not currently required. It is commonly used in apartments, villas, offices, shops and construction projects to create a clean wall finish while retaining the location for possible future installation.

It’s a dual‑gang blank faceplate designed to cover two openings in a standard wall back box, providing a clean, modern look for unused outlets or switch spaces.
