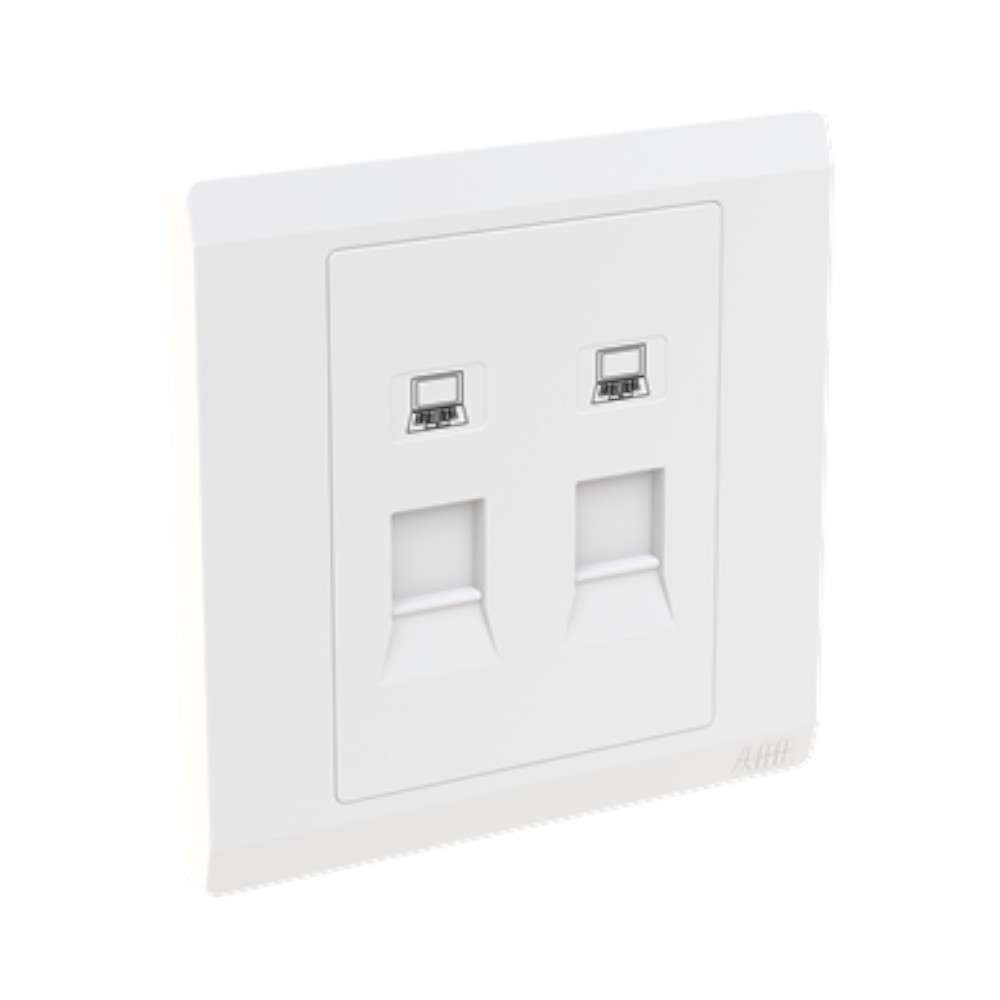

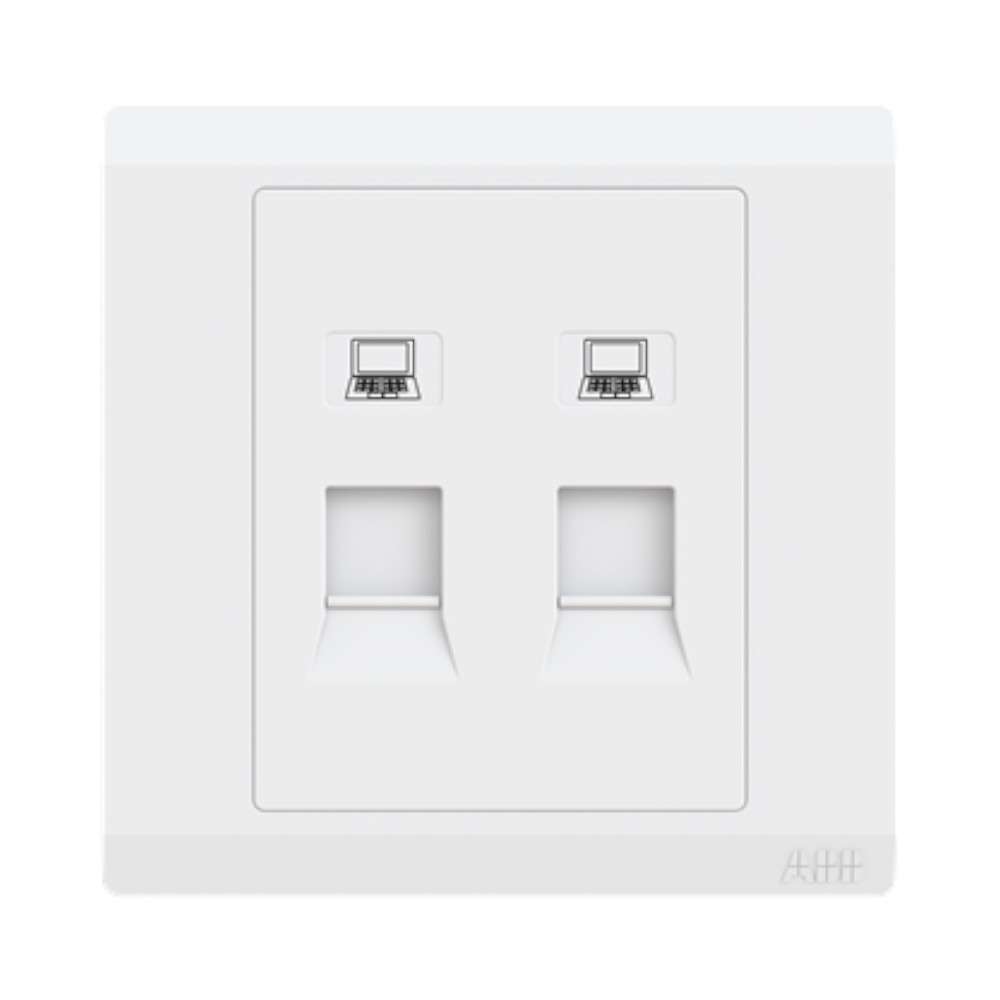

ABB Inora 2 Gang RJ45 Cat 5e Data Outlet White BL332

Start with a visual check of the conductor termination, wiring sequence, outlet label, and module seating. Use a network cable tester to identify open pairs, shorts, reversals, split pairs, or miswiring. For specified network performance, use a calibrated certification tester to verify the complete link against the required cabling category and retain the test results for construction QA/QC and handover records.

Disconnect connected equipment where necessary, then wipe the plate with a soft, dry or slightly damp cloth. Do not spray cleaner directly into the RJ45 openings or use abrasive pads, solvents, or strong chemicals. Periodically inspect the plate for looseness, cracks, discolouration, damaged clips, or intermittent network connections, and have defective modules or fittings checked by a qualified technician.

Power and data services should be kept in their designated boxes or segregated compartments, with routing and separation arranged according to the project design and applicable regulations. Do not place exposed mains conductors in the same unsegregated enclosure as data cabling. Proper separation reduces electrical risk and helps limit electromagnetic interference that could affect network performance.

This standard interior faceplate should not be assumed to be weatherproof or IP-rated. For exposed balconies, gardens, plant areas, wash zones, or other dusty and humid locations, use an enclosure and accessories with an appropriate verified IP rating. In air-conditioned indoor spaces, keep the plate dry and away from direct sunlight, water ingress, and excessive heat.

Yes, it is suited to indoor residential and commercial network installations commonly required in the UAE, subject to project approval and compatibility with the selected ABB Inora components. Installations should follow approved drawings, consultant specifications, relevant UAE authority requirements, and the structured-cabling standard stated for the project, such as ISO/IEC 11801 or ANSI/TIA-568 where applicable.

Coordinate the outlet position with architectural drawings, furniture layouts, electrical points, AV systems, and IT equipment before wall finishing. Provide a compatible back box with enough depth for the module and cable bend radius, keep conduits clear, and protect the box from plaster and paint. Data cabling should be routed with suitable separation from mains power cables and sources of electromagnetic interference in accordance with the consultant's specification and applicable local requirements.

Yes. A structured-cabling or extra-low-voltage technician should confirm module compatibility, terminate the cable, maintain the required pair geometry, and test the completed link. For construction handover, certification with a suitable cable analyser is preferable to a basic continuity check, particularly where Cat6 or Cat6A performance is specified.

Plan and label both data cables, install the correct concealed or surface back box, terminate each cable onto a compatible RJ45 module using the specified T568A or T568B wiring scheme, secure the modules in the appropriate support, and then fit the BL332 faceplate evenly. Maintain cable bend radius, avoid excessive untwisting of conductor pairs, and do not overtighten the plate. After installation, test and label each outlet according to the project documentation.

It can be used at network points for computers, IP telephones, smart TVs, wireless access points, printers, CCTV equipment, building-management devices, and other Ethernet-connected systems. Typical UAE applications include villas, apartments, offices, hotels, retail units, schools, clinics, and commercial fit-out projects. The two-position design is useful where separate voice and data lines or two independent Ethernet connections are required.

The faceplate itself does not determine the network category or data speed. Final Cat5e, Cat6, or Cat6A performance depends on the compatible RJ45 modules, cable, patch panels, patch cords, termination quality, bend-radius control, and testing method used throughout the permanent link or channel. Select all components to match the project specification and avoid mixing components that could reduce certified performance.

The listed dimensions are approximately 17.4 x 86 x 86 mm. Its white finish and compact square profile suit modern offices, apartments, villas, shops, classrooms, and other finished interiors. Installers should verify the dimensions, back-box depth, fixing arrangement, and module compatibility against the approved project sample before bulk installation.

No. The listing is for the ABB Inora BL332 plate only. RJ45 keystone jacks or data modules are not included. Before installation, confirm that the selected modules fit the ABB Inora BL332 mounting format; a generic RJ45 module may not fit correctly even if its connector is commonly described as RJ45.

It's a 2-gang faceplate designed to cover two RJ45 data outlets for ABB Inora BL332 wiring. It provides a clean, white finish for a neat network port presentation on walls or panels.

Wipe it with a soft, dry or lightly damp cloth. Avoid harsh cleaners or abrasive materials that could scratch the finish.
