ABB Inora 3 Gang 2 Way 10AX Switch White BL107

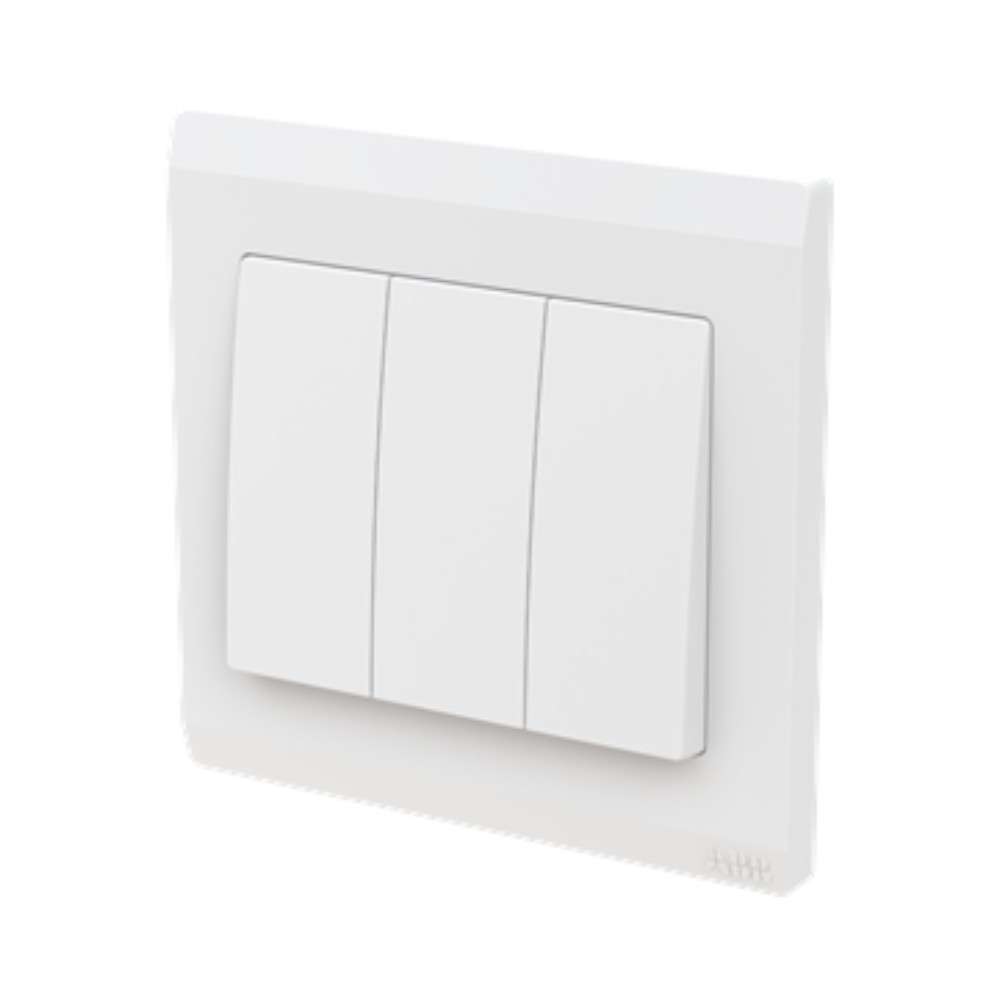

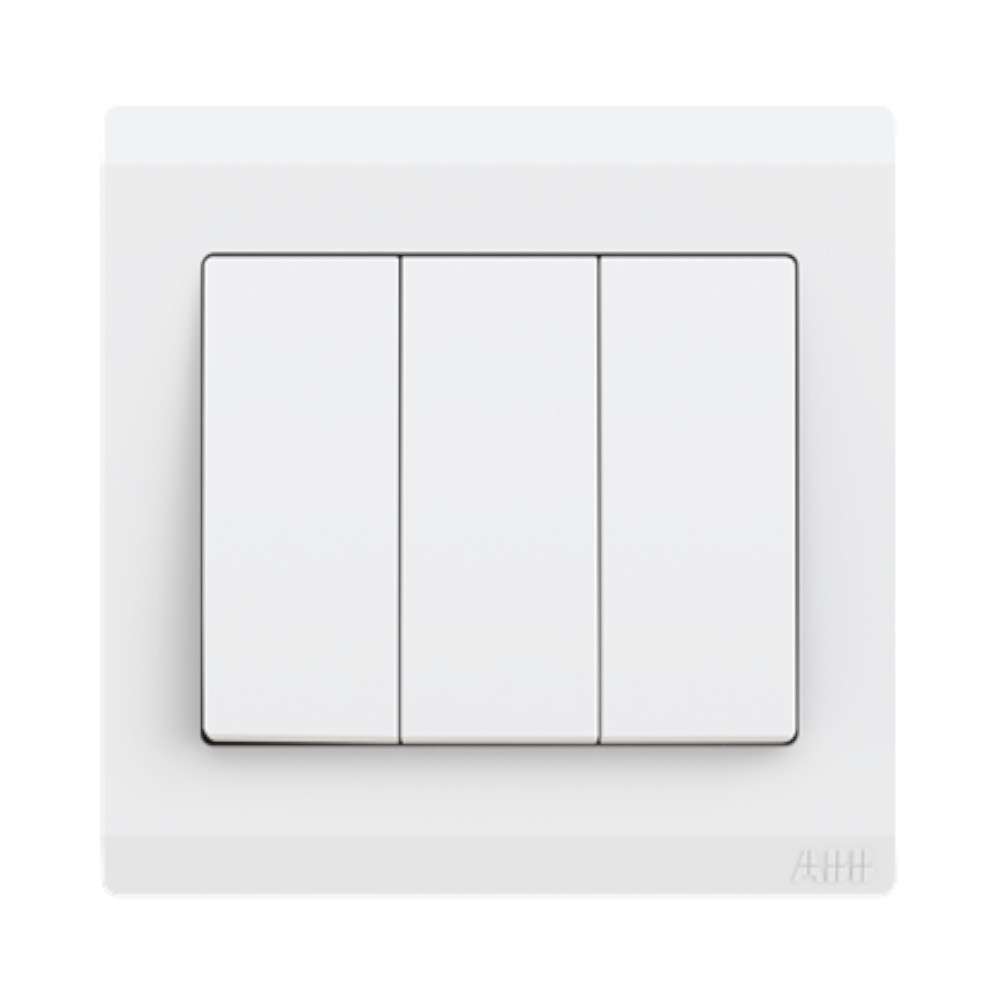

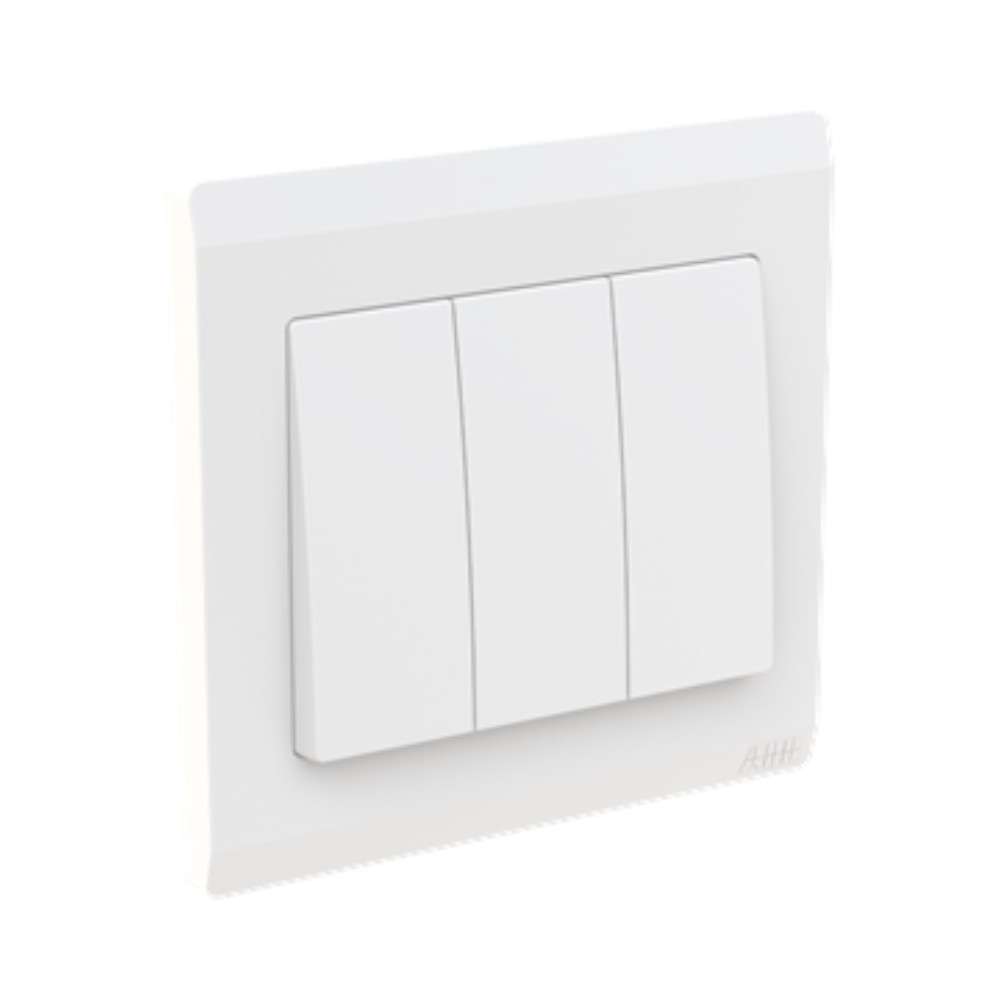

The ABB Inora BL107 combines three lighting controls in one 86 x 86 mm faceplate, helping reduce wall clutter in multi-zone rooms. Its two-way functionality supports flexible lighting layouts, while the neutral white finish coordinates with many residential and commercial interiors. For project procurement, contractors should confirm compatibility, approvals, quantities and installation requirements against the electrical schedule.

Isolate the circuit if inspection is required, and clean the faceplate using a soft, dry or slightly damp cloth. Do not use abrasive pads, solvents or excessive water. Periodically check for loose mounting, discoloration, unusual warmth, buzzing or intermittent operation. Any damaged or overheating switch should be isolated and inspected by a qualified electrician.

It can be a suitable replacement when the existing wall box, fixing arrangement, circuit type and load are compatible. Replacing a one-way switch with a two-way model is often possible for one-way operation, but creating control from a second location normally requires additional wiring. The electrician should identify every conductor rather than relying only on wire colour.

Installation should comply with the regulations of the relevant UAE authority, such as DEWA, ADDC or the applicable local utility, as well as the project's approved specifications and current wiring rules. A qualified electrician should verify circuit protection, conductor size, earthing, mounting location, product approval and suitability for the connected load before commissioning.

Use in kitchens or other indoor areas depends on the installation zone and environmental conditions. For bathrooms, wash areas, balconies and outdoor locations, the required ingress protection, moisture resistance and permitted mounting zone must be verified. As no specific IP rating is provided in the product data, it should not be assumed to be weatherproof; an appropriately rated enclosure or dedicated weatherproof switch may be necessary.

The product is best treated as a lighting control switch. It should not be used as a socket outlet or as an isolator for water heaters, cookers, air-conditioning equipment or other heavy loads. Fan or appliance control is appropriate only if the equipment's electrical characteristics, startup current and switching requirements are confirmed as compatible with the 10A switch rating and local regulations.

It may be used with compatible LED lighting circuits when the total steady-state current and LED-driver inrush current remain within the switch manufacturer's permitted limits. Large groups of LED drivers can create high startup current even when their normal wattage is low. For substantial LED loads, an electrician should consider load splitting, a suitably rated contactor or another approved control device.

A conventional two-way circuit requires a common connection and two traveller or strapper conductors between the paired switches, together with the appropriate line and switched-line arrangement. The exact cable layout depends on the project design. Conductors must be correctly sized, identified and protected, and wiring should follow ABB guidance and applicable UAE electrical regulations.

The listed dimensions are 37.1 x 86 x 86 mm, making it suitable for many commonly used square wall-box arrangements. However, installers should confirm the box dimensions, fixing centres, available wiring depth and terminal clearance before purchase. Extra depth may be required where several two-way conductors are present.

Installation should be completed by a qualified electrician. The circuit must first be isolated and verified as dead. Each gang's common and two-way terminals should then be wired according to ABB instructions and the approved circuit drawing, with conductors correctly identified, terminated and tightened. The mechanism should be secured in a compatible wall box, aligned, fitted with its faceplate and tested for continuity, insulation, polarity and correct operation before energising.

This configuration is useful in UAE villas, apartments, offices, hotels, shops and other fit-out projects where several lighting zones must be managed from one wall position. Two-way control is especially practical for staircases, corridors, bedrooms with bedside switching, large living rooms and rooms with more than one entrance.

Yes. Its three independent gangs can control three separate lighting circuits, such as ceiling lights, wall lights and decorative lighting. They may be used as one-way controls or incorporated into two-way arrangements, subject to correct wiring and the use of compatible switches at the other control points.

The switch has a stated current rating of 10A. The connected load must remain within the manufacturer's rating, and the operating voltage, lamp type, inrush current and circuit protection must also be checked before installation. It is primarily intended for lighting control rather than use as a power socket or high-load appliance isolator.

It's a three-gang wall switch plate (three individual switches) that supports two-way switching for multiple lighting circuits. With a white finish and the Inora BL107 design, it offers a clean, modern look while letting you control up to three separate lights or lighting circuits from a single plate.
