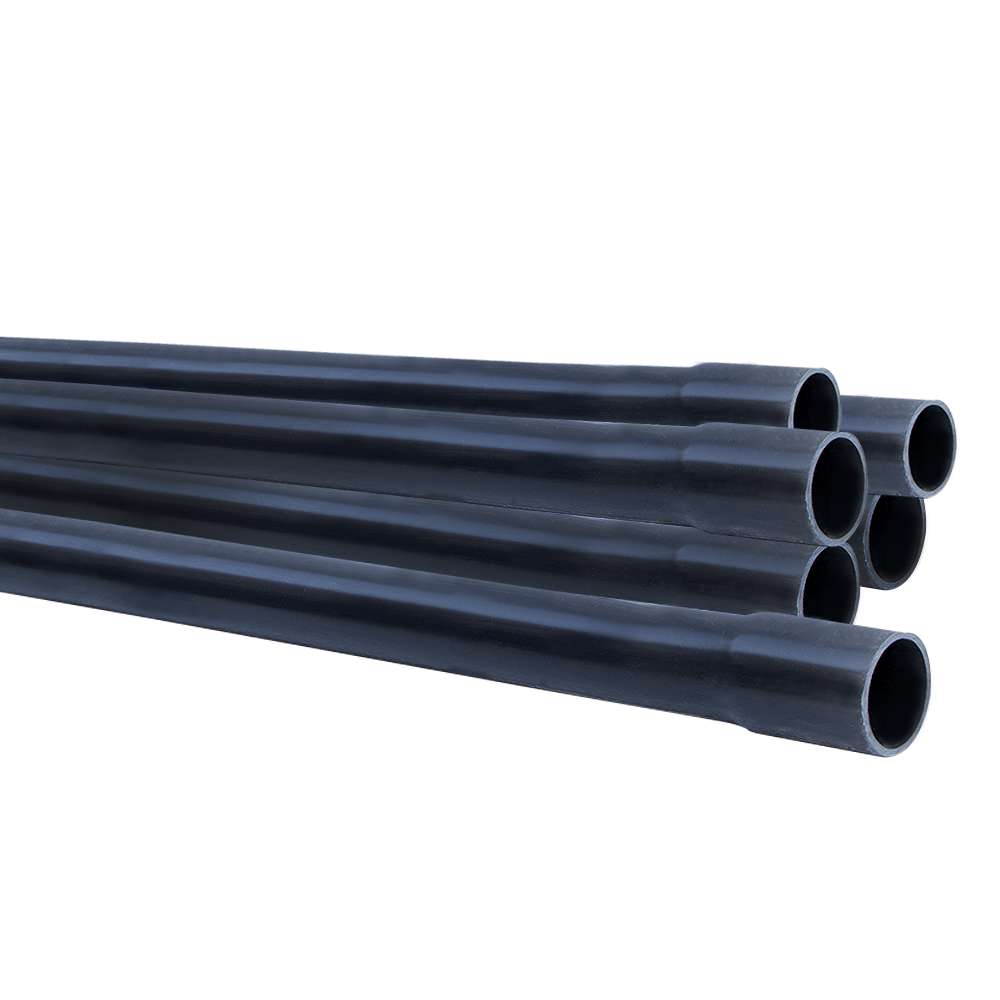

Al Gawas 40mm x 5.8m Class 10 PVC Pipe

- Diameter: 40 mm - Length: 5.8 m - Class: Class 10 (thick-walled, high-pressure rated) - Pressure rating: up to 10 bar - Certification: WRAS approved - Finish: Smooth interior and exterior surfaces - Material: PVC with corrosion and chemical resistance - Suitable fittings: 40 mm solvent-weld PVC fittings

WRAS approval indicates the pipe meets UK Water Regulations for potable water systems and safe usage in regulated water supplies. It helps ensure safety, compliance, and suitability for drinking-water-related applications.

Common uses include high‑pressure water distribution in industrial plants, pump houses, municipal water networks, and residential systems where robust wall thickness and reliable flow are required.

Install with 40 mm solvent‑weld PVC fittings. Steps: (1) measure and cut to length, (2) deburr edges, (3) dry-fit to ensure alignment, (4) apply appropriate primer and cement to both the pipe end and fitting, (5) insert and hold until the joint sets, (6) support the run with proper brackets, and (7) test the line for leaks up to the rated pressure.

- 40 mm PVC cement and primer - PVC pipe cutter or fine-toothed saw - Deburring tool - 40 mm solvent-w Weld fittings (elbows, tees, couplings, adapters) - Pipe supports/brackets and clamps - Measuring tape and marker - Personal protective equipment (gloves, eye protection)

This pipe offers extra thick Class 10 walls for higher pressure resistance and WRAS approval, which provides reliability for critical systems. If you need similar 40mm options at different prices, you can compare with other 40mm Class 10 PVC pipes available on Fepy, such as 40mm Class 10 PVC Pipe – 3m and 40mm Class 10 PVC Pipe – 10m variants: https://www.fepy.com/product/40mm-class-10-pvc-pipe-3m and https://www.fepy.com/product/40mm-class-10-pvc-pipe-10m

- Wear appropriate PPE when cutting and gluing (gloves, eye protection). - Use PVC primer and cement in a well-ventilated area. - Avoid exposing PVC pipe to excessive heat or direct UV light for prolonged periods. - Ensure clean, dry connections and proper support to prevent sagging or joint stress. - Confirm the system remains within the 10 bar rating and do not exceed it.

- Flush the line with clean water periodically to prevent sediment buildup. - Inspect joints for leaks or cracks during maintenance checks. - Avoid exposing the pipe to chemicals or conditions not compatible with PVC. - Keep exterior surfaces protected from prolonged exposure to direct sunlight to minimize aging (store and install as per guidelines).

- Measure accurately for the run, accounting for fittings and allowances. - Use a straightedge or ruler to mark a clean cut at the correct length. - Cut squarely with a fine-toothed saw or pipe cutter. - Deburr the cut edge to remove burrs and prevent damage to joints. - Check fit before applying primer and cement.

PVC pipes with corrosion and chemical resistance typically offer long service life in water applications. The 40mm Class 10 pipe’s extra-thick walls contribute to durability under higher pressure, maintaining reliable flow with smooth interior surfaces to reduce head loss.

Yes. For pairing with this pipe, you can explore other 40mm PVC options and related connectors on Fepy, such as 40mm Class 10 PVC Pipe – 3m and 40mm Class 10 PVC Pipe – 10m, which provide different lengths to suit your project. Example alternatives include: - 40mm Class 10 PVC Pipe – 3m: https://www.fepy.com/product/40mm-class-10-pvc-pipe-3m - 50mm Class 10 PVC Pipe – 5m: https://www.fepy.com/product/50mm-class-10-pvc-pipe-5m
