مفتاح أحادي الاتجاه (10Amp) من (ABB) موديل (INORA BL430) لون أبيض

The product is identified as ABB INORA BL430, SKU 42200-NOS, with EAN 6941593436743. It is a white 1 Gang 1 Way 10A push-type switch. These identifiers can help contractors, procurement teams and maintenance personnel match replacement units and project schedules accurately.

Isolate the circuit before maintenance and clean the faceplate with a soft, dry or slightly damp cloth. Do not use abrasive pads, solvents or excessive water. If the switch becomes hot, discoloured, loose, noisy or intermittent, stop using the circuit and have it inspected by a qualified electrician rather than attempting an internal repair.

After installation, a qualified electrician should inspect terminal security, conductor identification, faceplate alignment and back-box fit. Required circuit tests should be completed using calibrated equipment before energising. The switch should then be operated repeatedly to confirm smooth push action, reliable on-and-off control and the absence of arcing, overheating or loose connections.

Contractors should verify the approved brand and model, 1 gang 1 way switching requirement, 10A rating, white finish, 35.2 x 86 x 86 mm dimensions, back-box compatibility, terminal capacity and load characteristics. A sample installation is advisable before bulk procurement for villas, towers, offices or fit-out packages.

It is not generally recommended as the primary control or isolation device for high-load equipment such as air conditioners, water heaters, pumps or large motors. Such equipment may require a higher-rated double-pole switch, local isolator, contactor or motor-control device selected according to the equipment rating and UAE project requirements.

It may be used indoors in suitable dry locations. In bathrooms, kitchens, utility areas or outdoor environments, the installation must comply with required electrical zones and ingress-protection rules. Because no IP rating is provided in the product data, the BL430 should not be assumed to be weatherproof or splash-proof; use an appropriately rated enclosure or a dedicated IP-rated switch where moisture, dust or direct water exposure is possible.

The switch should be installed in accordance with the approved project drawings, applicable UAE electrical regulations and the requirements of the relevant local authority, such as DEWA, ADDC or the authority serving the project location. UAE projects frequently reference BS 7671 principles, but the latest local regulations, consultant specifications and manufacturer instructions take precedence.

Yes, its 10A lighting-control format, white finish and 86 x 86 mm profile make it relevant to UAE villas, apartments, offices, retail units and fit-out projects. The project consultant or electrician must still confirm compatibility with the approved back-box system, project specifications, electrical load schedule and requirements of the relevant UAE authority.

A standard mechanical 1 way switch normally switches the live conductor and generally does not require a neutral connection at the switch itself. The exact terminal markings and wiring diagram supplied with the product must be followed. A neutral conductor should never be connected to an unmarked switching terminal.

Installation should be completed by a qualified electrician. The circuit must be isolated at the distribution board, locked out where applicable and verified dead before work begins. The electrician should identify the permanent live and switched-live conductors, connect them to the marked terminals, ensure correct conductor stripping and terminal tightening, fit the mechanism into a compatible back box, install the faceplate and test polarity, insulation, continuity and operation before energising.

No. A 1 way switch controls a circuit from one location only. For staircase, corridor, bedroom or villa applications where one light must be controlled from two positions, use a suitable 2 way switching arrangement and compatible switches.

It can generally be used as a basic on-and-off switch for LED lighting, provided the total load and the LED drivers' inrush current are compatible with the switch and circuit design. Large groups of LED drivers can generate high switching inrush even when their normal running current is low, so a qualified electrician should confirm suitability for commercial or high-load installations.

The switch is primarily suitable for compatible lighting circuits with a current not exceeding its 10A rating. It may also operate certain fans or other fixed loads when their voltage, running current, starting current and load type are compatible with the switch rating. It should not be used as a substitute for a socket outlet, isolator, motor starter, dimmer or emergency-disconnection device unless the electrical design specifically permits it.

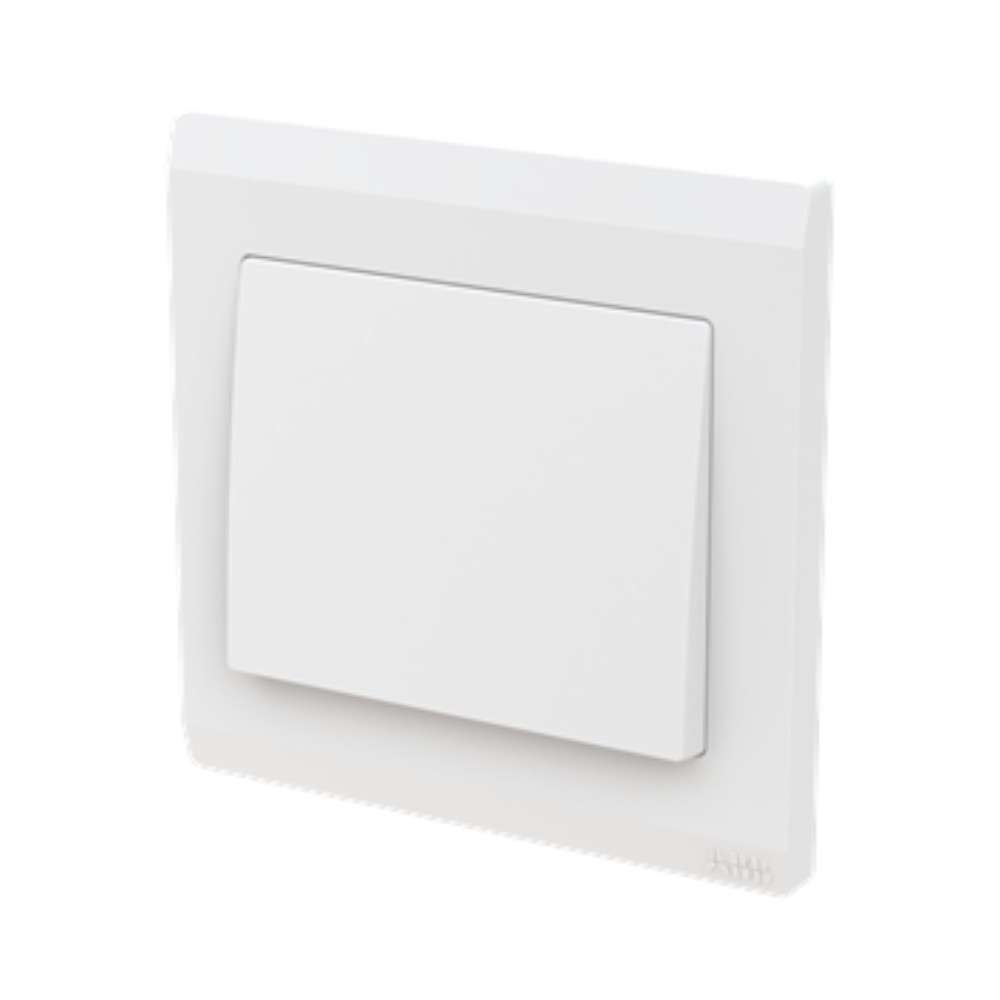

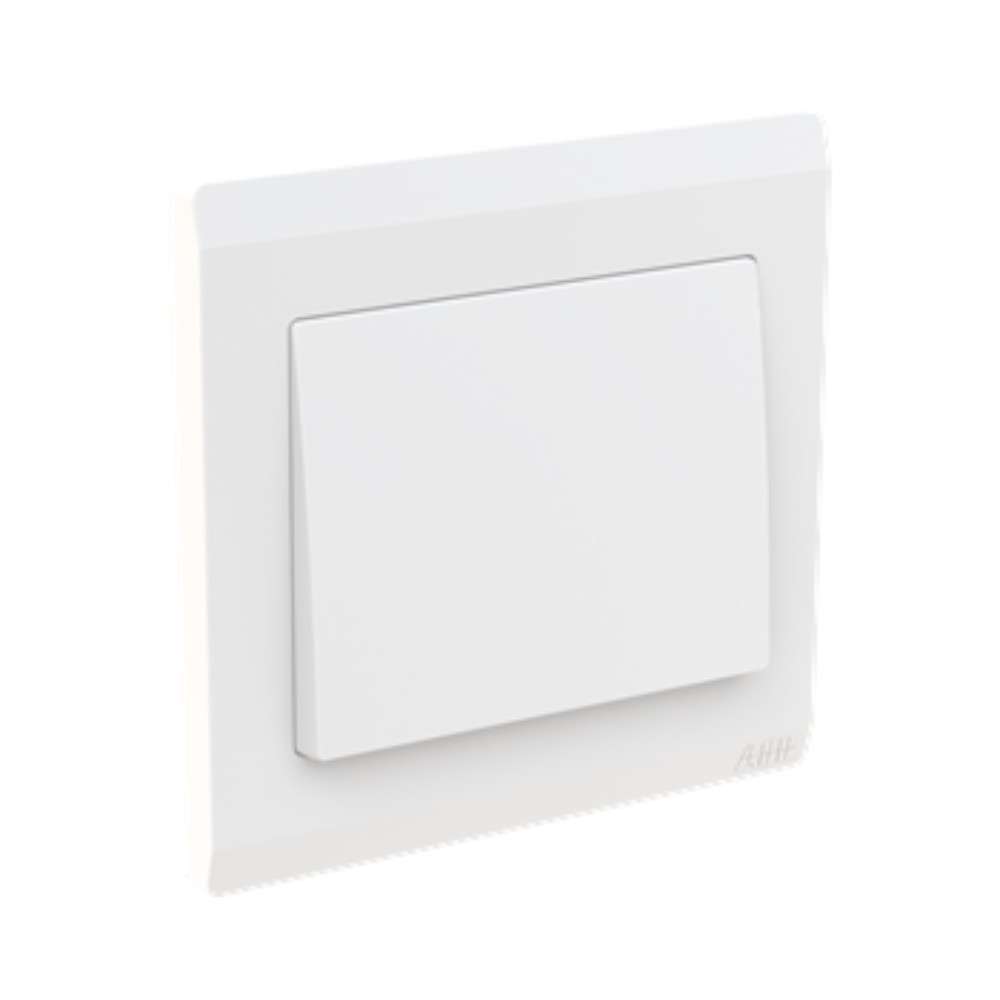

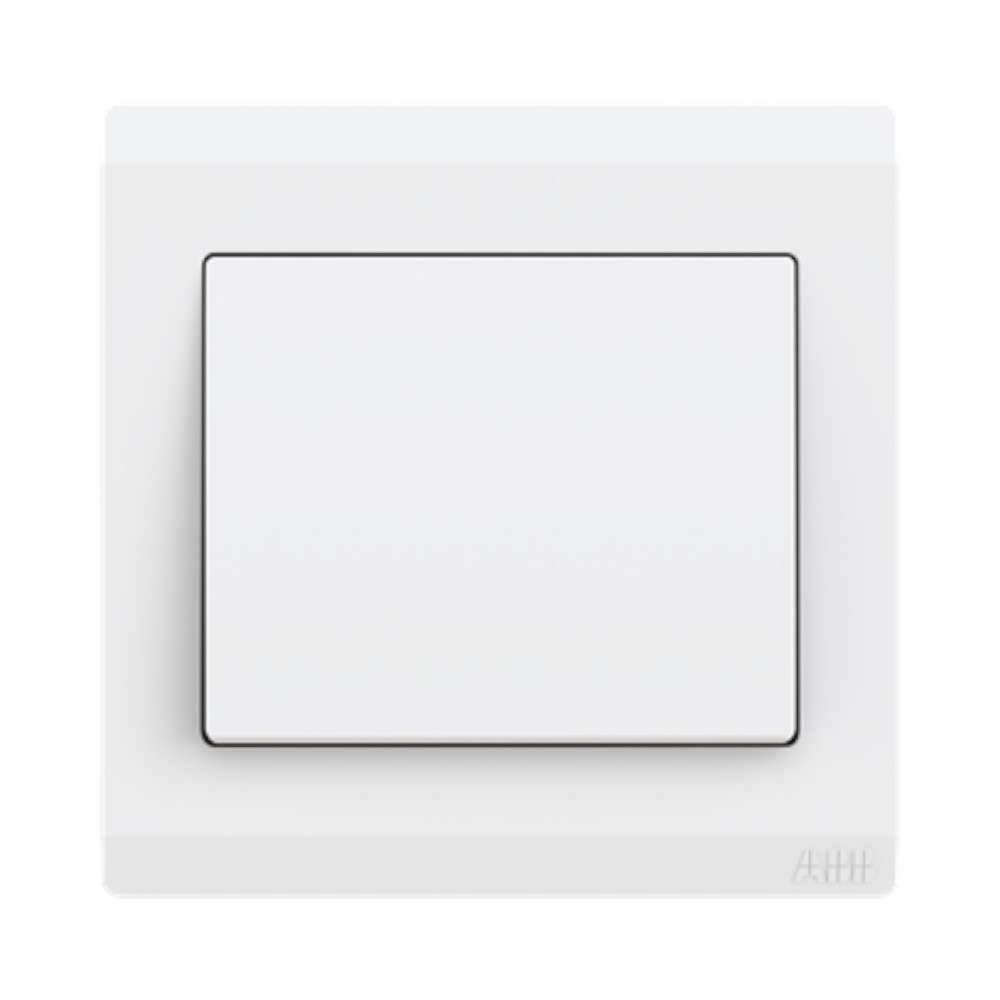

It’s a sleek, white 1-gang push-button switch rated for 10A, designed to control a single lighting circuit (1 gang, 1 way). It uses a push-action mechanism for on/off operation and fits standard 1-gang back boxes with a compatible faceplate.
