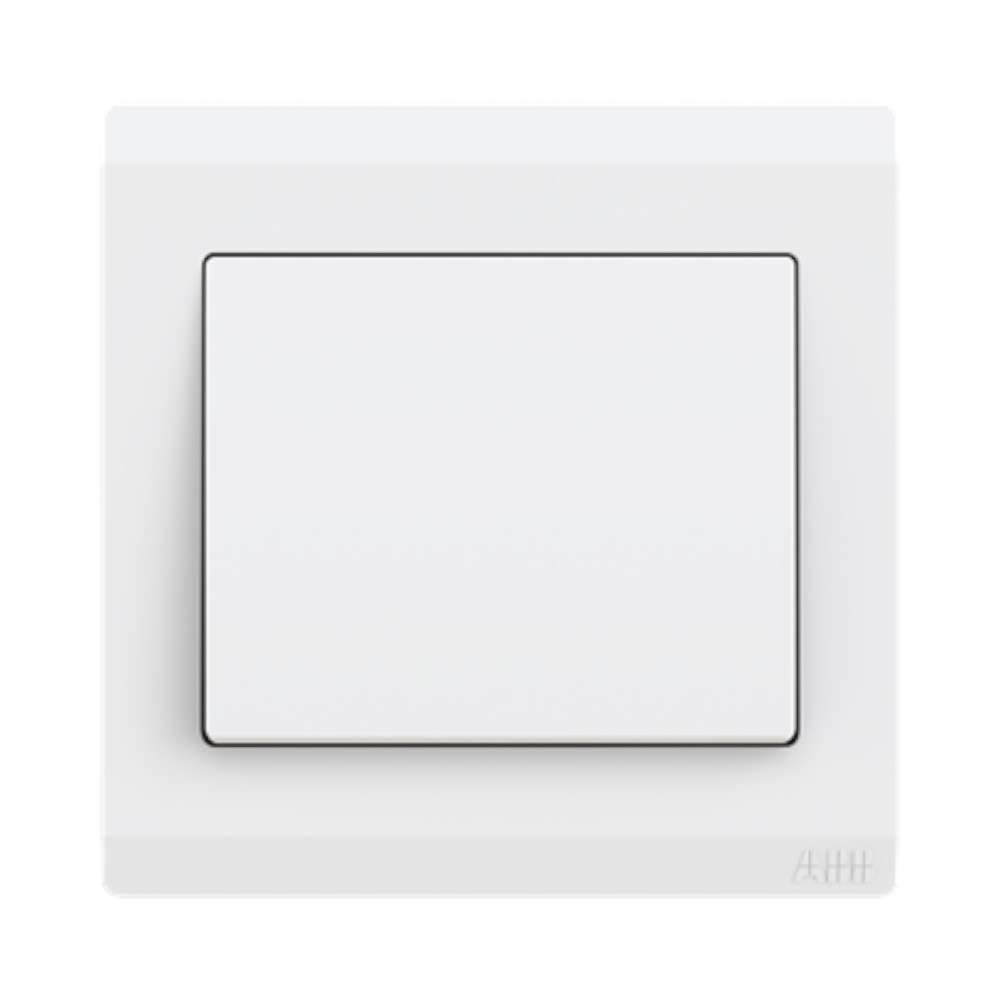

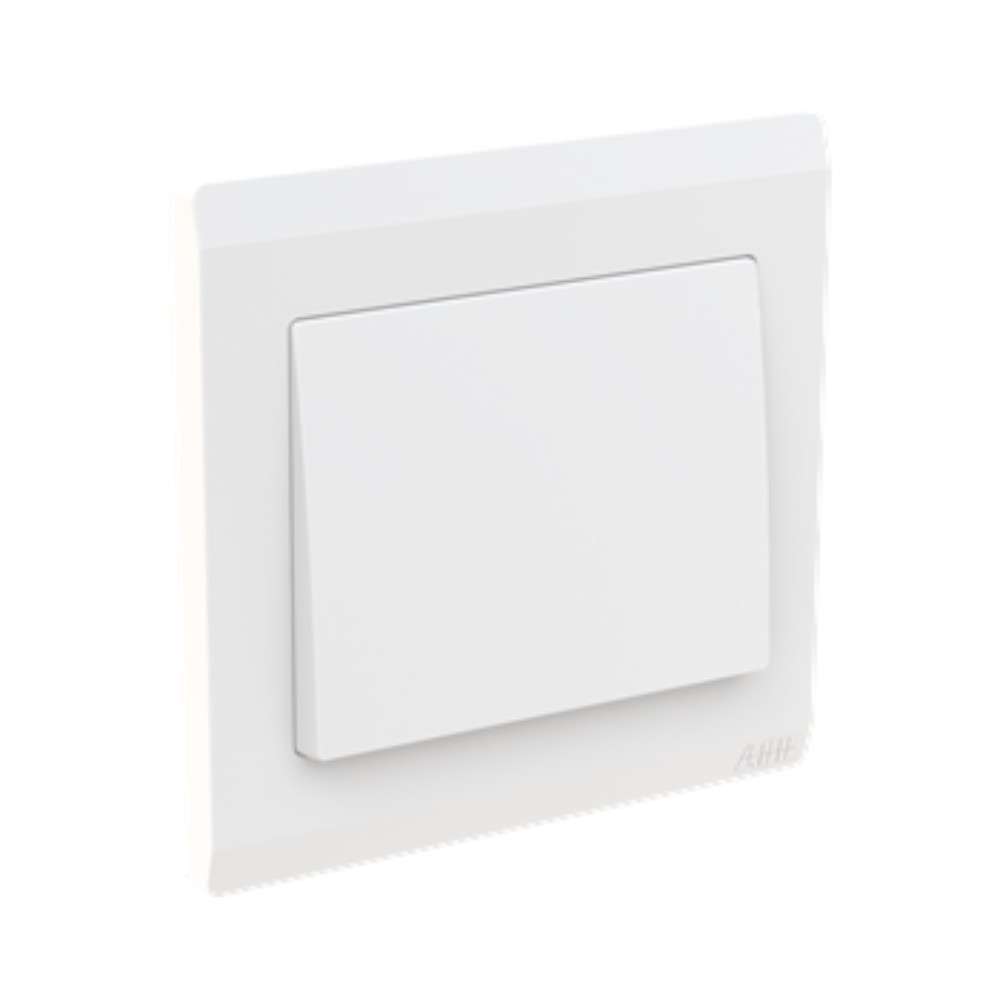

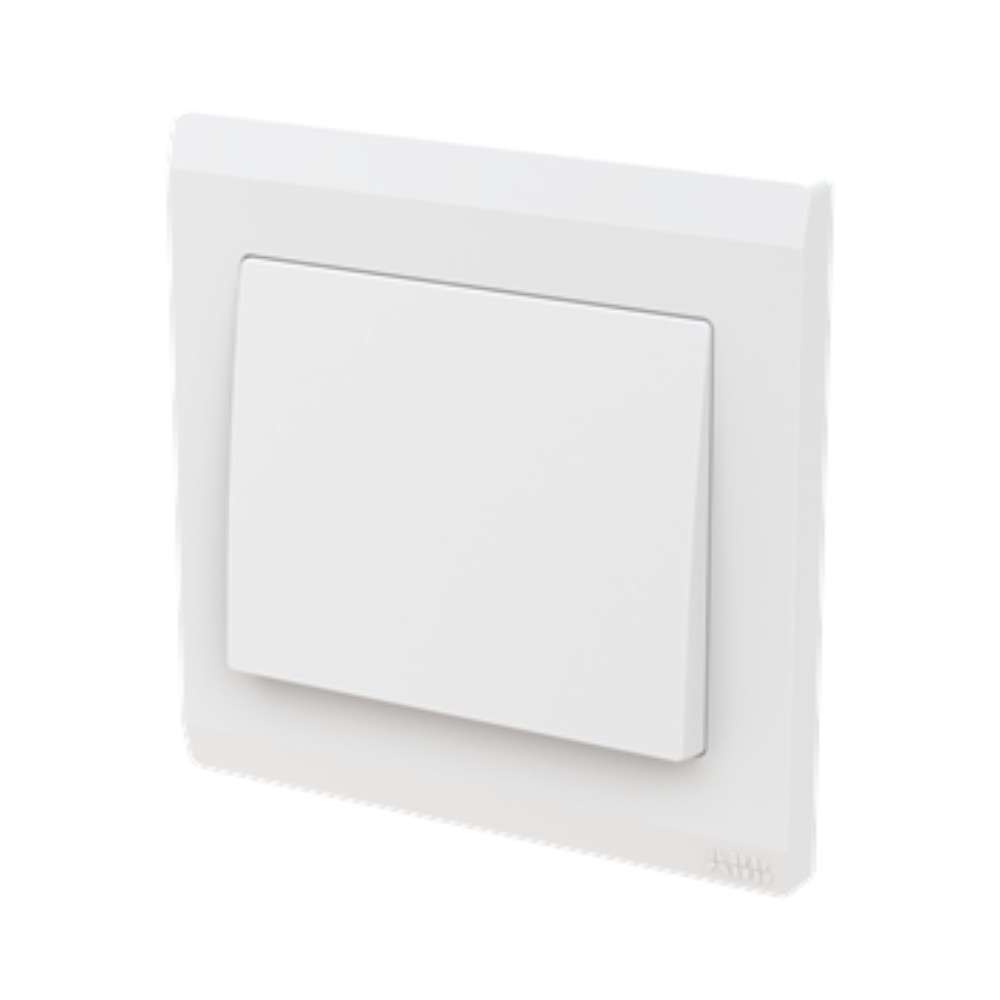

مفتاح إضاءة ثنائي (10Amp) باتجاهين من (ABB) موديل (Inora BL105) لون أبيض

Check the project requirement for one-gang, two-way operation, a 10A rating, white finish and 86 x 86 x 35.2 mm dimensions. Also confirm wall-box compatibility, load type, circuit voltage and any required IP rating. The listed SKU is 42212-NOS and the EAN is 6941593436224, which can help with procurement and material schedules.

Isolate the circuit before inspection or maintenance. Clean the faceplate with a soft, lightly damp cloth and avoid abrasive pads, solvents or excessive water. If the rocker feels loose, becomes unusually warm, produces noise or shows discoloration, stop using the circuit and arrange inspection by a qualified electrician.

Yes, its 86 x 86 mm format, white finish and 2-way lighting function make it relevant to residential, hospitality, office and light-commercial fit-outs in the UAE. For renovations, verify the existing wall-box dimensions and wiring arrangement. For new construction, coordinate switch positions, box depth, conduit routes and circuit schedules before plastering or final wall finishes.

The electrician should verify conductor identification, terminal tightness, continuity of protective conductors, insulation resistance, polarity and correct operation from both switching positions. The circuit protective device and earthing arrangement should also be checked before energisation and project handover.

Cable conductor size, insulation type and protective-device rating must be selected by the electrical designer or contractor according to the circuit load, installation method, voltage drop, fault protection and local regulations. The back box should accommodate the switch depth of 35.2 mm plus the conductors without sharp bending, overcrowding or damage to insulation.

Suitability depends on the installation zone and required ingress-protection rating. No specific IP rating is provided in the listed product data, so it should not be assumed to be weatherproof or splashproof. For bathrooms, kitchens, balconies and outdoor locations, use an enclosure or switch with the IP rating required by the site conditions and applicable UAE regulations.

Use it only where the connected equipment is compatible with the switch’s 10A rating and load type. Motors, fans and other inductive loads can have higher starting currents than lighting loads and may require a purpose-rated switch, isolator, contactor or fan controller. It should not be treated as a replacement for a socket outlet or a dedicated appliance isolator.

It may be used with compatible LED lighting circuits, provided the operating current, LED-driver inrush current and total connected load are within the switch and circuit limits. Large groups of LED drivers can produce high startup current even when their normal running wattage is low, so the project electrician should verify compatibility for commercial or high-load installations.

A 2-way mechanical switch can generally be used for single-location control by using the common terminal and one of the two switched terminals. The electrician must follow the markings on the actual product and verify correct polarity, continuity and operation after installation.

A conventional mechanical 2-way switch generally switches the live conductor and normally does not require a neutral at the switch position. However, the exact wiring arrangement depends on the circuit design. Neutral conductors must not be connected to switching terminals unless specifically required by the manufacturer’s diagram.

Installation should be completed by a qualified electrician with the circuit isolated, locked out where required and tested for absence of voltage. For a typical 2-way circuit, the permanent live and switched-live conductors are connected through the common and traveller terminals of two compatible switches. Always follow the terminal labels and ABB instructions, as terminal positions can vary between models. Secure the conductors correctly, mount the mechanism level in a compatible wall box, fit the faceplate and test operation before handover.

The listed dimensions are 86 x 86 x 35.2 mm. Before installation, confirm that the wall box, mounting depth, screw positions and surrounding finish are compatible, particularly on projects using standard 86 mm concealed boxes.

A 2-way switch is commonly specified for villa staircases, apartment corridors, hotel rooms, office passageways, bedrooms with bedside controls and rooms with two entrances. It allows users to switch the same lighting point on or off from either end of the space.

A 1-gang 2-way switch controls a single lighting circuit and lets you operate the light from two different locations. It is rated for up to 10 amps at typical residential voltage (around 220–240V AC). The ABB Inora BL105 White unit is designed for modern interiors, providing a reliable on/off function for standard lights within its 10A limit.
