لوحة مفتاح كهربائي رفيعة من (ABB) موديل (Inora BL504) لون أبيض

Isolate the nearby electrical circuit if maintenance could disturb the plate. Wipe the surface with a soft, dry or slightly damp cloth and avoid abrasive pads, strong solvents or excessive water. Periodically check that the plate remains secure, undamaged and flush with the wall, especially after decoration or renovation work.

Check the required quantity, 86 x 86 mm face dimensions, back-box compatibility, fixing arrangement, wall finish, indoor or environmental conditions and project-approved accessory schedule. Also confirm that a blank plate is permitted at the location and that any concealed conductors can be safely terminated while remaining accessible where required.

Yes. Its slim profile, classic design and white finish suit many residential, office, hospitality and retail interiors, particularly where other accessories have a similar white appearance. For projects requiring a consistent finish, verify compatibility and visual matching with the specified ABB Inora accessory range before bulk procurement.

Yes. Contractors can use it to finish a back box reserved for a future switch, socket, thermostat, automation controller or other accessory. Any retained cables should be safely terminated, clearly identified and documented on the relevant as-built drawings or circuit schedules so that future work can be performed safely.

The plate provides a physical cover for a compatible electrical box, but it is not a circuit-protection device and does not replace insulation, earthing, proper conductor termination or an IP-rated enclosure. Any wiring behind it must be made safe in accordance with the approved electrical design and applicable installation regulations.

Use in bathrooms, kitchens or other damp locations depends on the electrical zone, enclosure arrangement and required ingress-protection rating. The supplied information does not identify this blank plate as weatherproof or assign it an IP rating. It should therefore not be assumed suitable for exposed outdoor, wet or wash-down locations unless installed within an appropriately rated system approved for that environment.

Yes, provided a compatible single-gang back box is correctly fixed and flush with the finished wall surface. On drywall, use a suitable dry-lining box; on blockwork, use an appropriate concealed or surface box; and on tiled walls, ensure the cut-out is neat and does not interfere with the plate seating. The blank plate should not be screwed directly to unsupported wall material.

Its 86 x 86 mm single-gang format and neutral white finish make it relevant to many UAE villas, apartments, offices, retail units and fit-out projects. Compatibility should still be checked against the specified electrical back box, project schedule and authority requirements. Electrical work must comply with applicable UAE regulations and the requirements of the relevant local authority, consultant and project specification.

First isolate the relevant circuit at the distribution board, lock out the supply where required and verify that the conductors are dead with an approved tester. Safely terminate and arrange any cables inside the back box, align the plate with the compatible fixing points, tighten the fasteners evenly and check that the plate sits flat against the wall. Installation should be completed by a qualified electrician.

Yes, it can cover an unused opening when the installed back box and fixing points are compatible with the plate. Any redundant conductors inside the box must first be safely isolated, identified and terminated using approved methods. The blank plate must not be used as a substitute for proper electrical insulation or cable termination.

A 1 gang blank plate is used to close an unused single-gang electrical box, such as an opening left after removing a switch, socket, dimmer, timer or control device. It is useful during renovations, electrical layout changes, phased construction and fit-out work where a concealed box may be retained for possible future use.

The listed dimensions are 86 x 86 mm with an overall depth of approximately 14.2 mm. This square format is commonly used for single-gang electrical accessories in UAE residential and commercial projects. Confirm the back-box size, fixing arrangement and site dimensions before ordering.

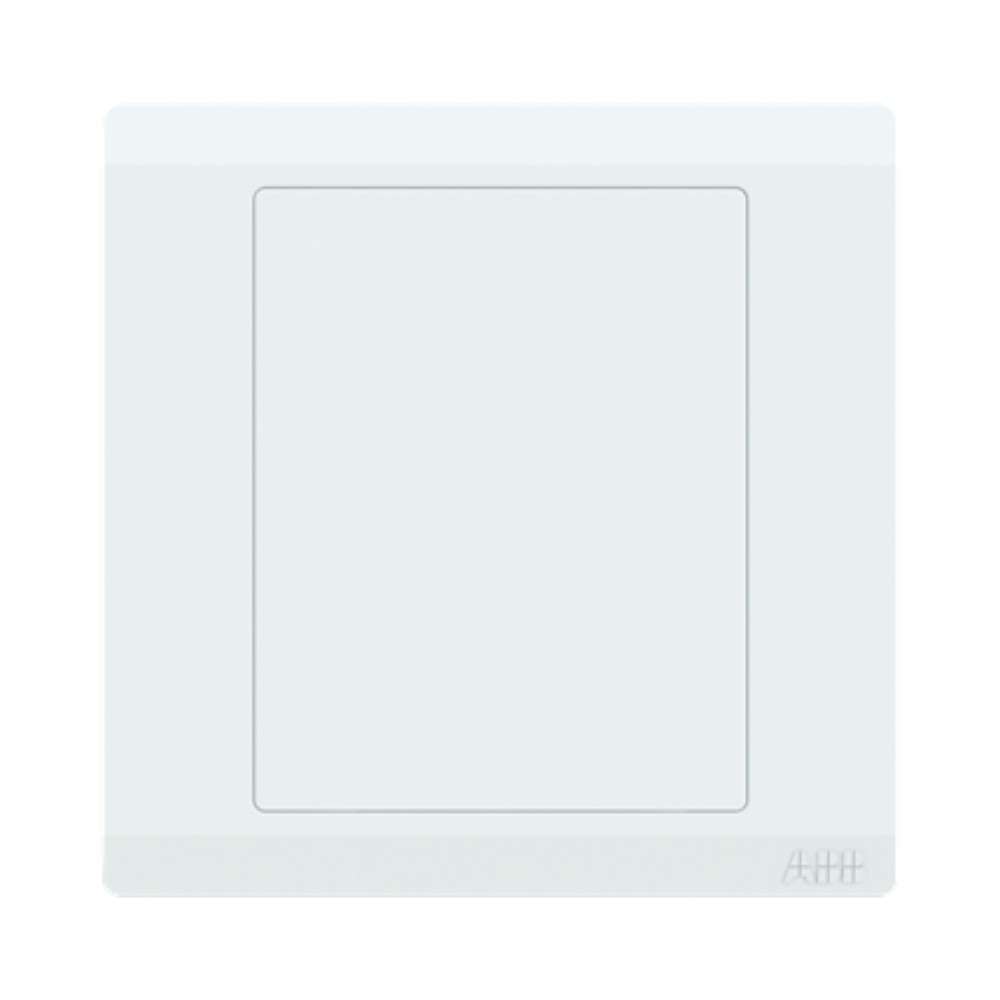

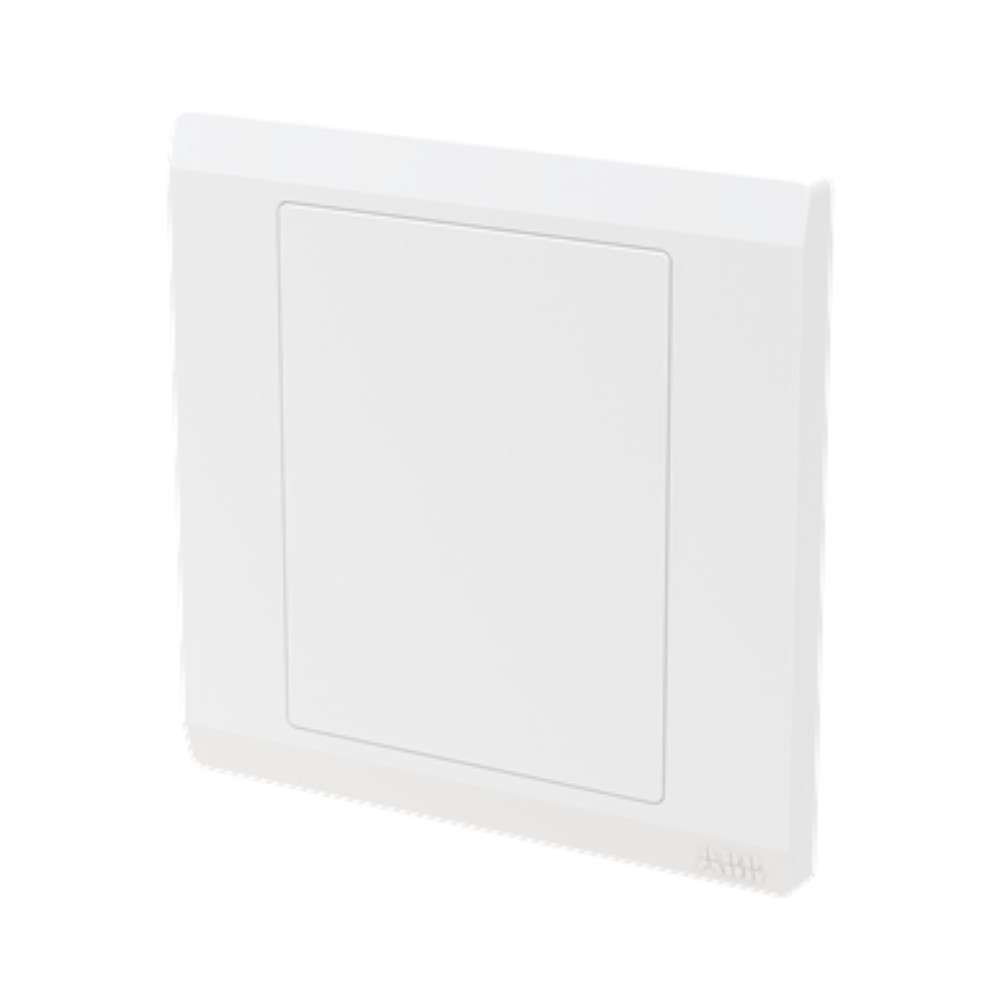

It's a slim 1-gang wall plate designed to cover unused switch openings, giving walls a clean, finished look with a white finish that blends with most decor.

Consider whether you need a discreet, clean wall finish, the room’s decor and color, and if a slim 1-gang blank plate meets your concealment needs. Also ensure it matches standard wall box dimensions for a snug fit.
