منفذ توصيل الهوائيات الأحادي (ABB) بزاوية (45) درجة لون أبيض (Inora BL308)

Disconnect connected equipment and wipe the faceplate with a soft, dry or lightly damp cloth. Do not use abrasive pads, solvents or strong chemical cleaners. Periodically check that the faceplate and coaxial connector remain secure, particularly in hotel rooms, rental properties and other high-use installations.

Inspect the termination for a secure centre conductor and shield connection, then check for continuity, shorts and excessive signal loss using appropriate coaxial test equipment. Connect the intended TV or satellite receiver and verify signal strength, signal quality and channel reception. In larger UAE developments, testing results may need to be documented as part of ELV commissioning and handover.

No outdoor or weatherproof IP rating is provided for this product, so it should be treated as an indoor outlet. Do not install it in exposed balconies, gardens, wet areas or dusty external locations unless it is placed inside a suitably rated enclosure approved for the environment.

Yes. During construction, ELV coaxial cabling should be routed and contained with suitable separation from power cables in accordance with applicable UAE regulations, project specifications and manufacturer instructions. Where cables must cross, a perpendicular crossing is generally preferred. Proper separation helps reduce interference and supports safer maintenance.

No. This product is identified as a SAT signal outlet and is intended for coaxial television or satellite connectivity; it is not a mains socket, lighting switch or dimmer. It should not be used to power appliances or control lights and fans. Any unrelated references to lighting control should not be treated as specifications for SKU 42203-NOS.

It may form the room-side termination of a compatible satellite system, but the complete connection depends on the project design. The cable may run from a dish LNB, multiswitch, splitter or communal distribution system. Confirm that the outlet supports the required signal path, connector and DC-control requirements before connecting a satellite receiver.

Use good-quality 75-ohm coaxial cable specified for the building's satellite or TV distribution system. For satellite installations, the cable should provide effective shielding and support the required frequency range with low signal loss. Cable type, connector format and distribution equipment must be selected as a compatible system by the project's ELV or telecommunications specialist.

Use a one-gang back box that matches the outlet's 86 x 86 mm format, fixing centres and 25.2 mm listed product depth, while allowing additional room for the coaxial cable and its minimum bend radius. Back-box compatibility should be checked before wall chasing or final fit-out because box dimensions and fixing arrangements can vary between accessory ranges.

Isolate nearby electrical circuits, remove the required length of the coaxial cable jacket without damaging the shield, prepare the cable for the specified connector and terminate it securely at the rear of the outlet. Fit the mechanism into a compatible concealed or surface back box, align the 86 x 86 mm faceplate and tighten the fixings without overtightening. Test signal continuity and reception after installation. A qualified low-voltage or ELV technician should carry out the work.

Yes, its standard 86 x 86 mm format is relevant to many wall-accessory installations used in UAE residential and commercial construction. Before procurement, the contractor should verify compatibility with the specified back box, wiring-accessory range, coaxial distribution design and project consultant requirements. Installation must also follow applicable local authority regulations and approved project drawings.

It is suitable for indoor TV and satellite points in villas, apartments, offices, hotels, meeting rooms and other UAE properties with structured coaxial cabling. Typical locations include living rooms, bedrooms, majlis areas and media rooms. The outlet should only be connected to a compatible satellite or TV distribution network.

The angled connection directs the coaxial plug and cable away from the wall at a controlled angle. This can make the connector easier to reach, support tidier cable management and reduce sharp cable bends behind televisions, cabinets or media units. Maintaining a suitable bend radius helps protect coaxial cable performance.

This is a stylish 1‑gang SAT outlet with a 45° angled socket, featuring a brushed stainless steel cover and an integrated finger plate. It uses a CoLabel 32189 DIN socket for TV connections, helping you keep cables tidy while blending with modern decor.

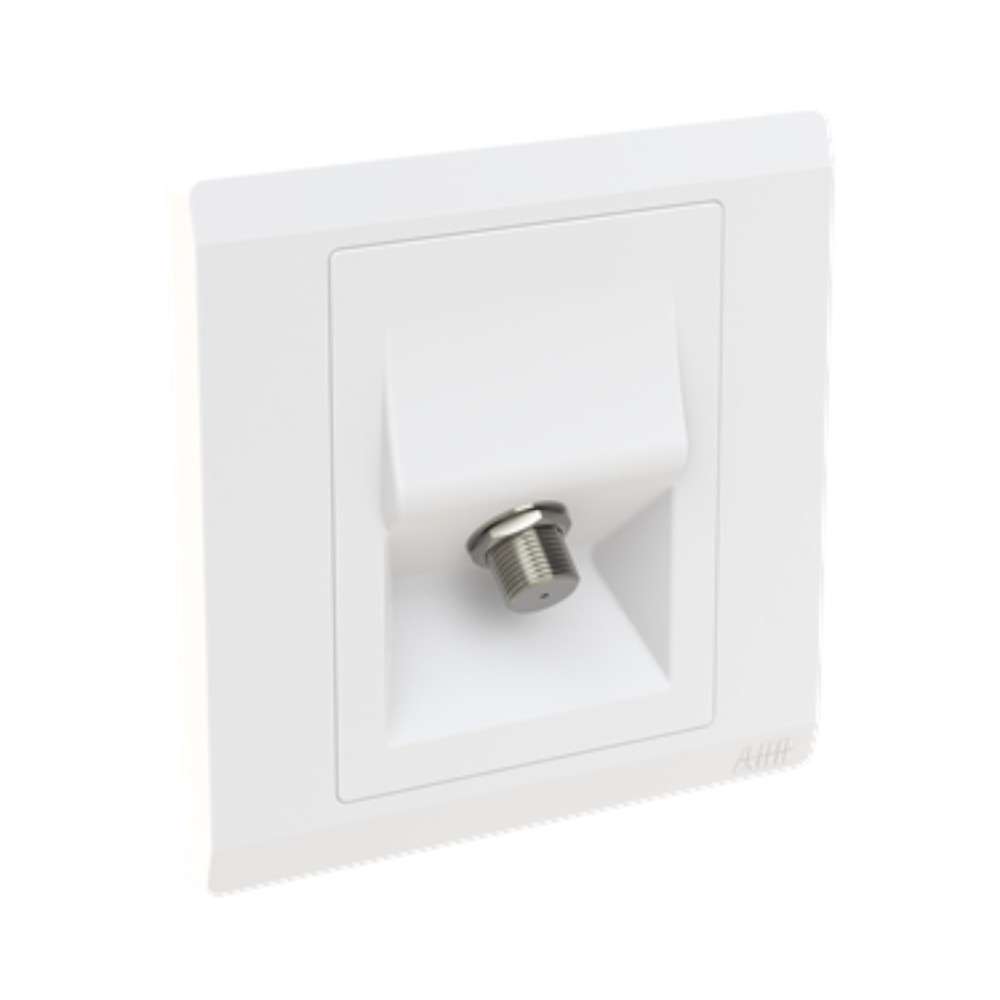

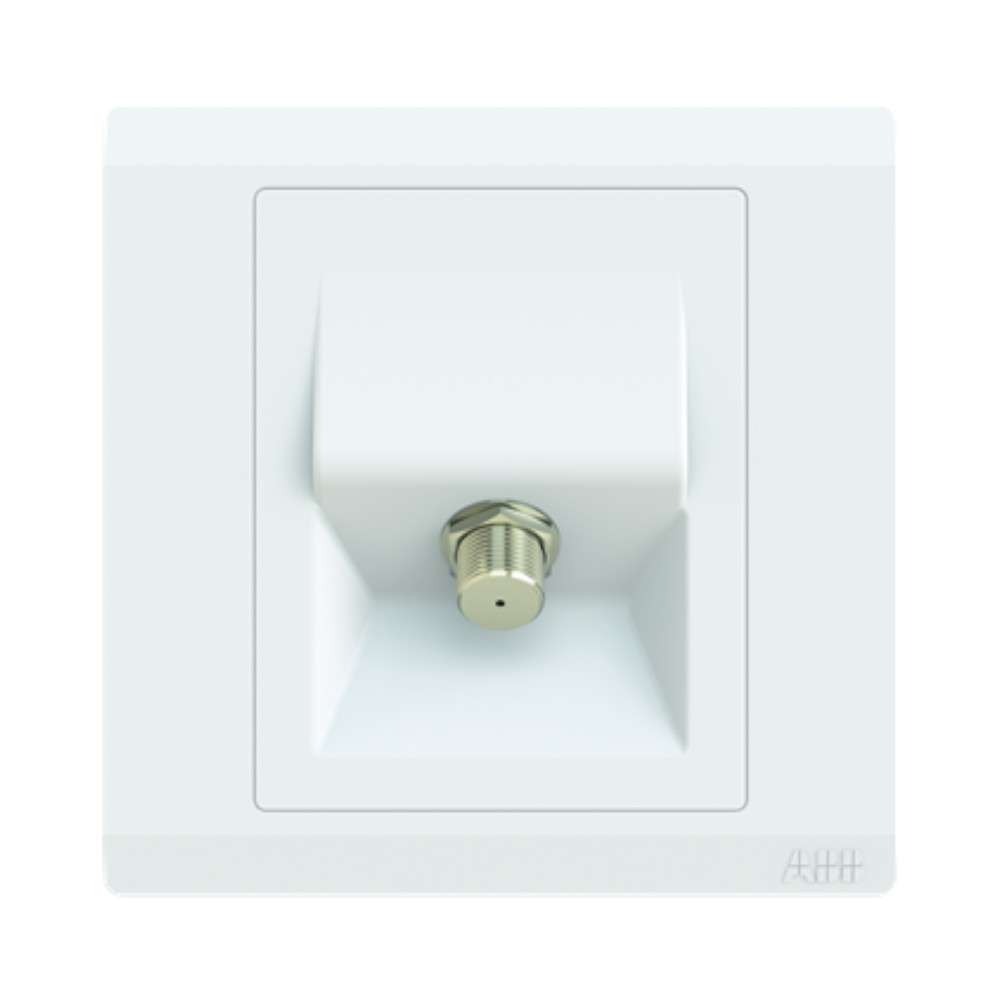

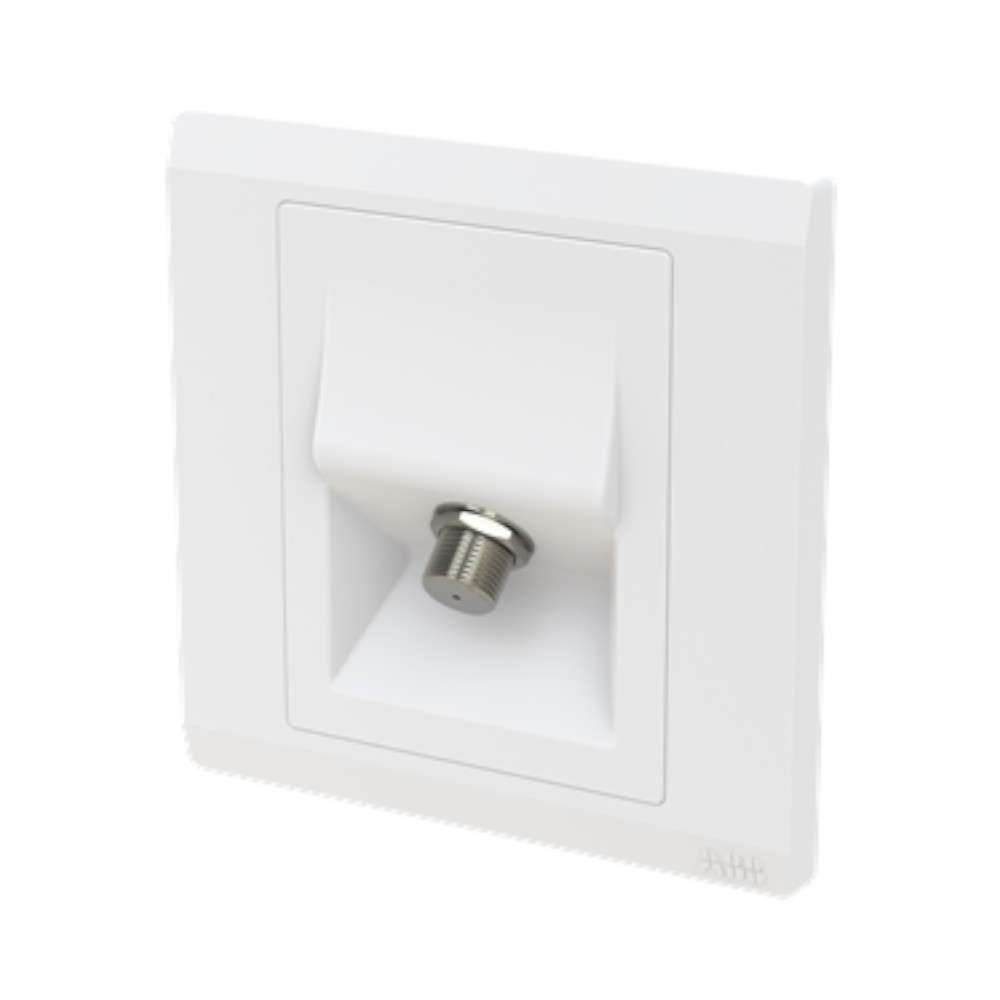

The ABB Inora BL308 is a single-gang satellite outlet designed to provide a neat termination point for a coaxial TV or satellite signal cable. Its 45-degree angled connection helps improve plug access and cable routing while reducing the projection of the connected cable. The white 86 x 86 mm faceplate suits residential, commercial and hospitality interiors.
