مفتاح كهربائي ثلاثي (10Amp) أحادي الاتجاه من (ABB) موديل (Inora BL103) لون أبيض

Isolate the electrical supply before inspection or maintenance. Clean the faceplate using a soft, dry or slightly damp cloth, and avoid abrasive pads, solvents, excessive water and chemical cleaners that could damage the finish or enter the mechanism. Replace the switch if there is cracking, overheating, discoloration, buzzing, loose operation or intermittent switching, and have the circuit inspected by a qualified electrician.

It can be a suitable replacement when the existing accessory is also a compatible three-gang, one-way switch and the back box, fixing arrangement, conductor capacity and electrical load match. An electrician should not rely only on wire colours; each conductor should be safely identified and tested. If any circuit is controlled from two locations, a different switching configuration may be required.

Contractors should confirm the approved brand and model, three-gang one-way configuration, 10A rating, 86 x 86 mm plate size, back-box compatibility, circuit load, terminal capacity, colour and required quantity. They should also compare the item against electrical drawings, load schedules, material submittals, consultant approvals and local authority requirements. The EAN for product identification is 6941593436149, and the FEPY SKU is 42215-NOS.

No ingress-protection rating is provided in the listed product data, so the switch should be treated as an indoor accessory for dry locations unless ABB documentation confirms otherwise. In bathrooms, kitchens, balconies, gardens or other damp and exposed areas, the required installation zone and IP rating must be checked. Outdoor use generally requires a weatherproof enclosure or a purpose-designed outdoor switch compliant with local project requirements.

It may control a compatible fan or appliance circuit only when the load type, startup current and running current are suitable for the switch. It should not automatically be treated as a direct control for socket outlets, water heaters, air conditioners, pumps or other heavy loads. Such circuits commonly require appropriately rated double-pole switches, fused connection units, isolators, relays or contactors selected by a qualified electrical engineer.

It can be used with compatible LED lighting circuits when the total operating current and driver inrush current are within the permitted switching capacity. LED drivers can generate a brief startup current significantly higher than their normal running current, particularly when several fittings are connected to one rocker. For larger LED lighting groups, an electrician should check ABB's load guidance and consider a relay or contactor.

A conventional mechanical one-way switch normally interrupts the live conductor and may not require a neutral connection at the switch itself. However, the exact terminal arrangement must be verified from the markings or wiring instructions supplied with the ABB BL103. Neutral conductors, protective earth conductors and any loop connections must be handled according to the circuit design and applicable UAE electrical requirements.

Installation should be completed by a qualified electrician. The supply must be isolated, locked out where applicable and verified dead before work begins. The electrician should identify the permanent live conductor and three switched-live conductors, terminate them according to the markings supplied with the switch, maintain earth continuity, tighten terminals to the manufacturer's requirements and secure the mechanism to a compatible back box. The circuit should then be tested for polarity, insulation resistance, continuity and correct operation before energising.

The switch format and 10A rating are relevant to common UAE residential and commercial lighting applications. Suitability for a specific project must be confirmed against the product markings, approved project specifications and the requirements of the applicable local authority, such as DEWA, ADDC, SEWA or the relevant emirate's utility provider. Installation should also follow applicable wiring regulations and project requirements based on standards such as BS 7671 and BS EN/IEC 60669 where specified.

This switch is suitable for indoor lighting control in villas, apartments, offices, shops, hotels, workshops and other buildings. Its three rockers are useful for areas with several lighting zones, such as living rooms, kitchens, meeting rooms and partitioned commercial spaces. It may also control compatible fans or appliances when their electrical characteristics are within the switch rating and the circuit has been correctly designed.

The listed dimensions are approximately 37.1 x 86 x 86 mm. The 86 x 86 mm faceplate format is commonly used in UAE building projects, but the installer should verify the concealed back-box dimensions, fixing centres, wiring space and installation depth before fitting.

The ABB Inora BL103 has a stated current rating of 10 amps. The connected load must remain within the voltage, current and load-type ratings marked on the product or stated in ABB documentation. LED drivers, motors, fans and other inductive or high-inrush loads can place greater stress on switch contacts than standard resistive loads, so an electrician should confirm compatibility and use a suitable relay or contactor where required.

This switch is designed to control multiple lighting circuits or devices from a single wall plate. The 3-gang configuration lets you manage up to three separate loads, with a 1-way (on/off) operation for each circuit, all in a sleek white finish.

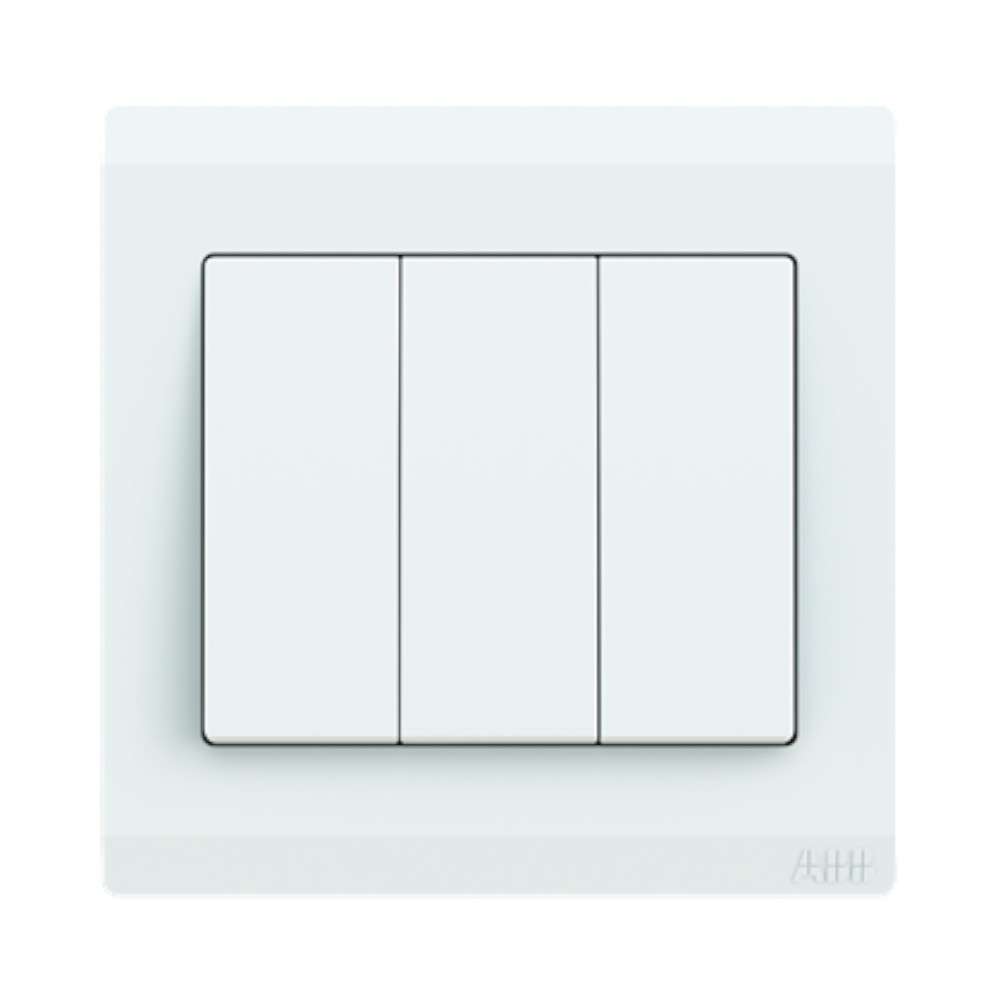

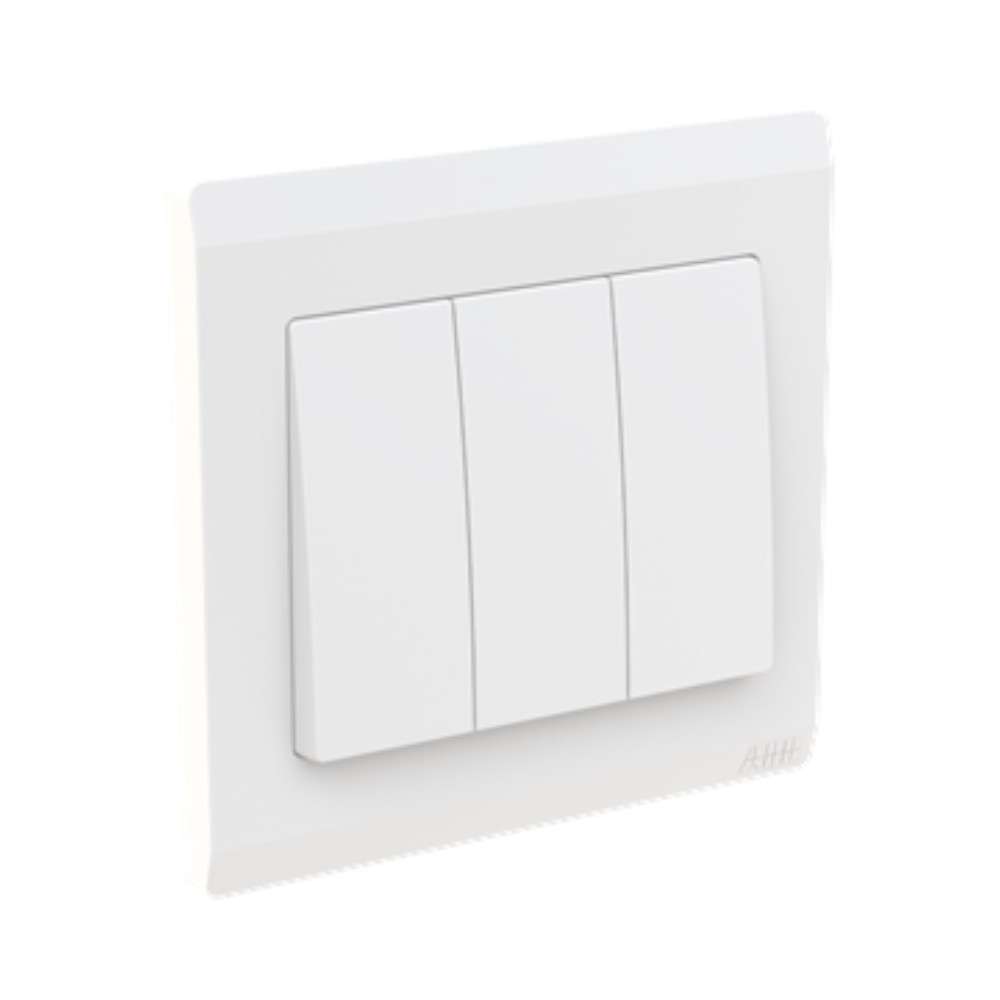

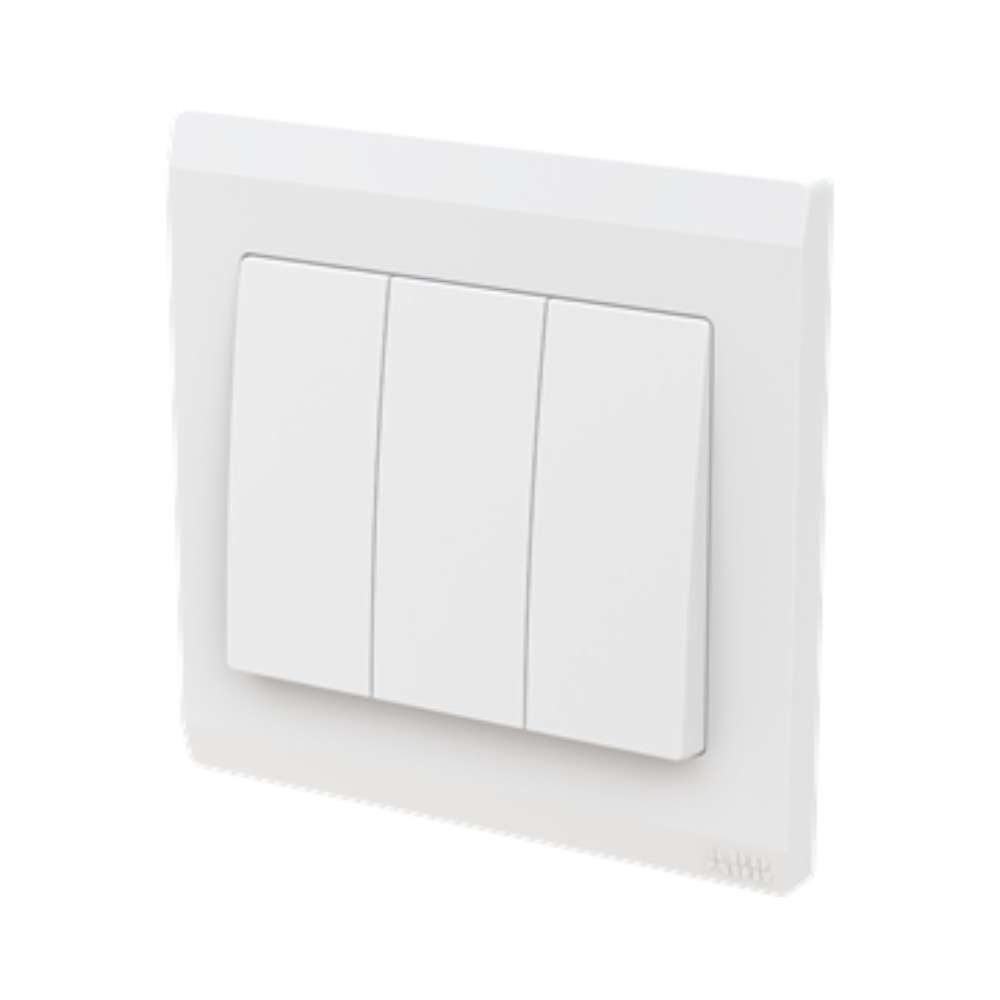

The ABB Inora BL103 is a white, three-gang, one-way wall switch designed to provide independent on/off control of three electrical circuits from one location. Each rocker can typically control a separate lighting circuit or another compatible load, subject to the switch rating and circuit design. Its compact 86 x 86 mm faceplate and clean finish suit residential, commercial and construction projects in the UAE.
