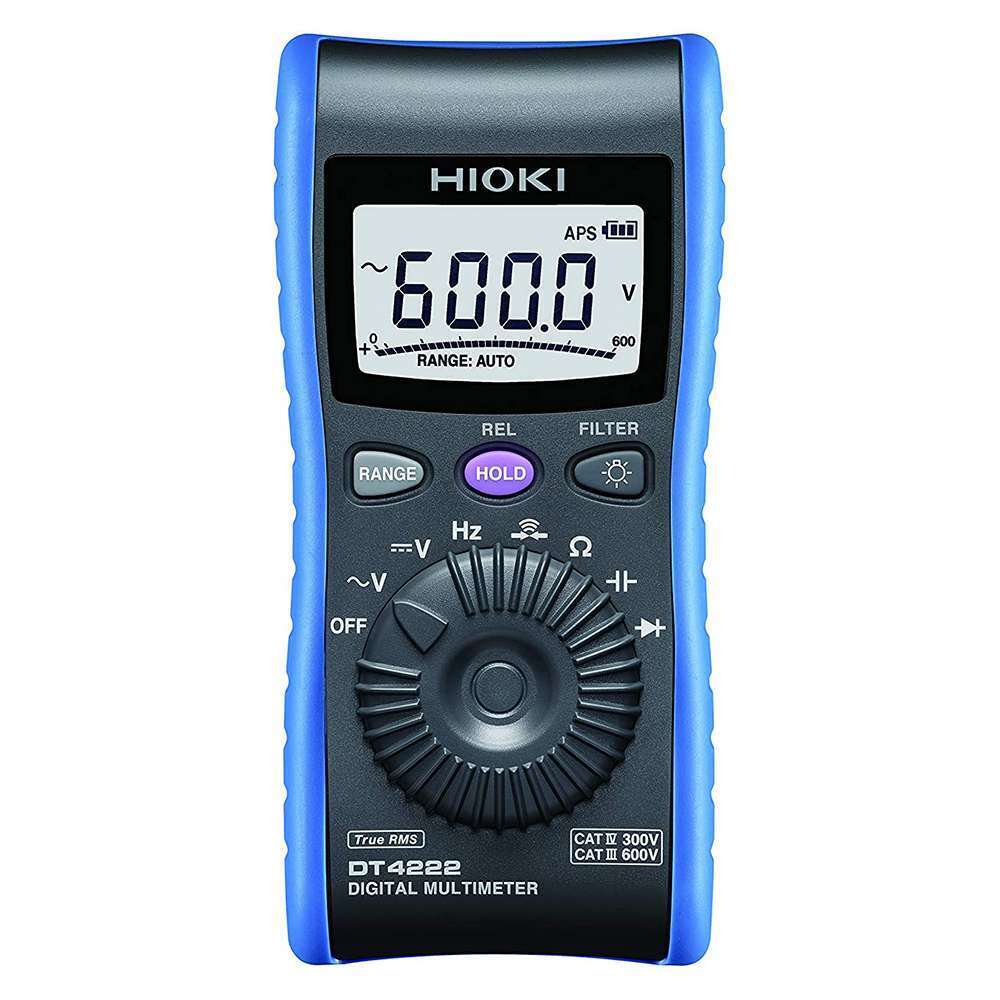

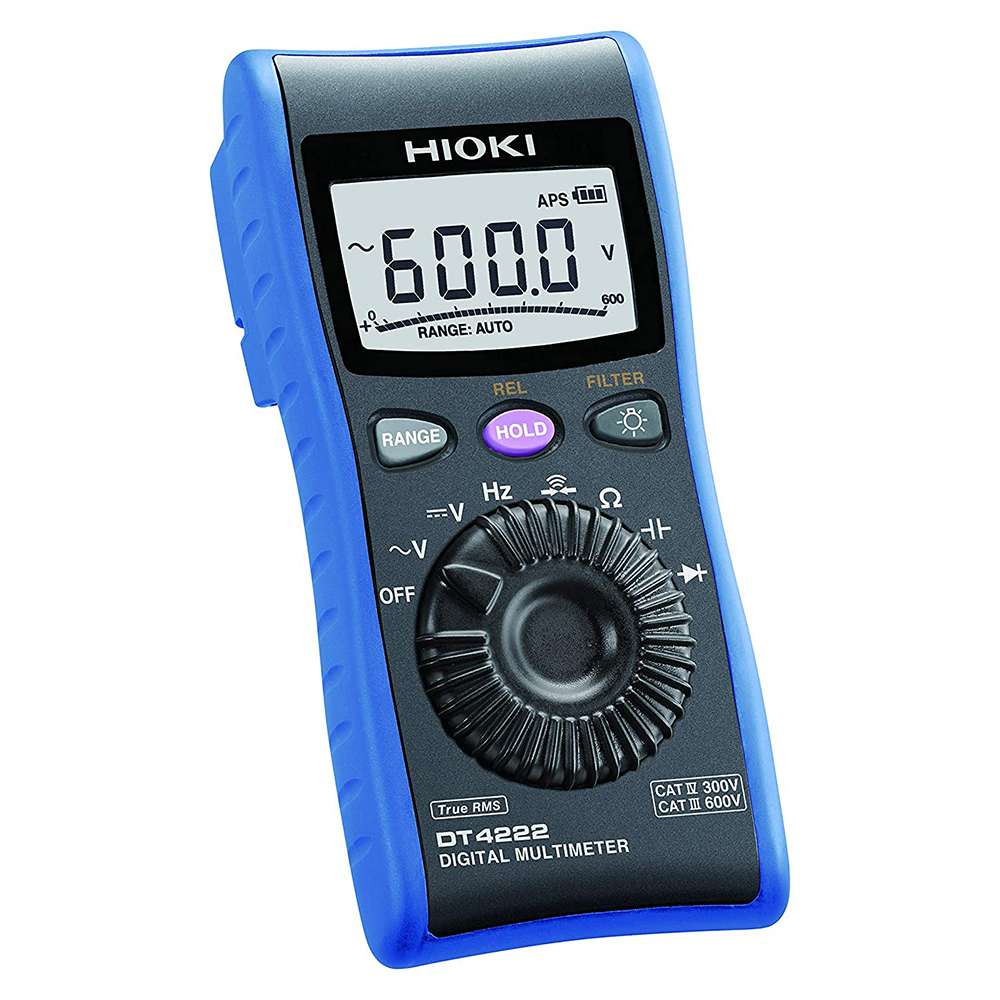

عداد رقمي متعدد المقاييس هيوكي (Hioki) موديل (DT4222)

It measures voltage (AC and DC), resistance, current, and capacitance, and includes diode testing for semiconductor testing. It has a 20-segment bargraph display, LED backlight, data hold, auto-off, reverse polarity protection, and ESD protection. The device is CAT IV 600 V rated and powered by a large internal rechargeable battery for longer operation between charges.

Switch the meter to the diode test mode, connect the test leads to the diode under test (polarity matters for forward bias). Read the forward voltage drop and monitor reverse leakage. Use the reading to assess diode health and switching characteristics. Ensure the circuit is de-energized before testing and follow basic safety practices when probing live circuits.

Set the meter to the appropriate voltage mode (DC or AC). Connect the red probe to the point under test and the black probe to the reference point. Ensure the measured voltage does not exceed 600 V and follow the CAT IV safety guidelines. Read the voltage value from the display and use the auto-ranging or manual range as needed for accuracy.

The DT4222 is rated CAT IV 600 V for safe use on power circuits, includes reverse polarity protection, ESD protection, overload protection, and an automatic shutoff feature to conserve battery life. These features help protect both the user and the instrument during testing.

It offers a backlit display for easy viewing in dim environments, a 20-segment bargraph for quick progress visualization, data hold for freezing readings, and a fast 5 ms/div sampling rate for rapid troubleshooting. The internal rechargeable battery supports extended use between charges.

It's well-suited for electronics troubleshooting, circuit analysis, diode and semiconductor testing, power supply validation, automotive diagnostics, and any application requiring fast, precise voltage, resistance, current, and capacitance measurements with diode testing capabilities.

For users choosing among Hioki models on Fepy, the DT4222 is designed for fast troubleshooting and diode testing with CAT IV 600 V protection. If you need slightly different features or ranges, you can compare with related models on Fepy such as the Hioki DT4223, DT4221, or the DT4300, which are listed on the site with dedicated product pages for side-by-side evaluation.

Consider these Hioki options on Fepy for side-by-side comparison: Hioki DT4223 Digital Multimeter (https://fepy.com/hioki-dt4223-digital-multimeter), Hioki DT4221 Digital Multimeter (https://fepy.com/hioki-dt4221-digital-multimeter), and Hioki DT4300 Digital Multimeter (https://fepy.com/hioki-dt4300-digital-multimeter). Each page provides specifications that help you decide which model best fits your testing needs.

The DT4222 is ideal for fast diagnostics in electronics repair, prototyping, lab testing, and on-site fieldwork where quick diode testing, safe high-voltage measurement up to 600 V, and reliable readings are essential. Its combination of speed, safety features, and a rechargeable battery makes it a versatile tool for technicians and engineers.

Charge the internal battery and turn on the meter. Select the desired measurement mode (voltage, resistance, current, capacitance, or diode test). Connect test leads carefully, observe safety precautions, and use data hold or backlight as needed. Rely on the 5 ms/div sampling for rapid measurements, and refer to the CAT IV 600 V rating to ensure safe operation on higher-energy circuits.

If you’re evaluating value, the DT4222’s feature set—fast testing, diode testing, 600 V capability, and safety protections—offers strong value for professional use. For returns, consult Fepy’s return policy on the product page or the site’s returns section to understand any timeframes and conditions applicable to electronic test equipment.
