Question 1

What is the Eagle PLT-10M ECON Floor Weighing Scale and what is it designed for?

Accepted Answer

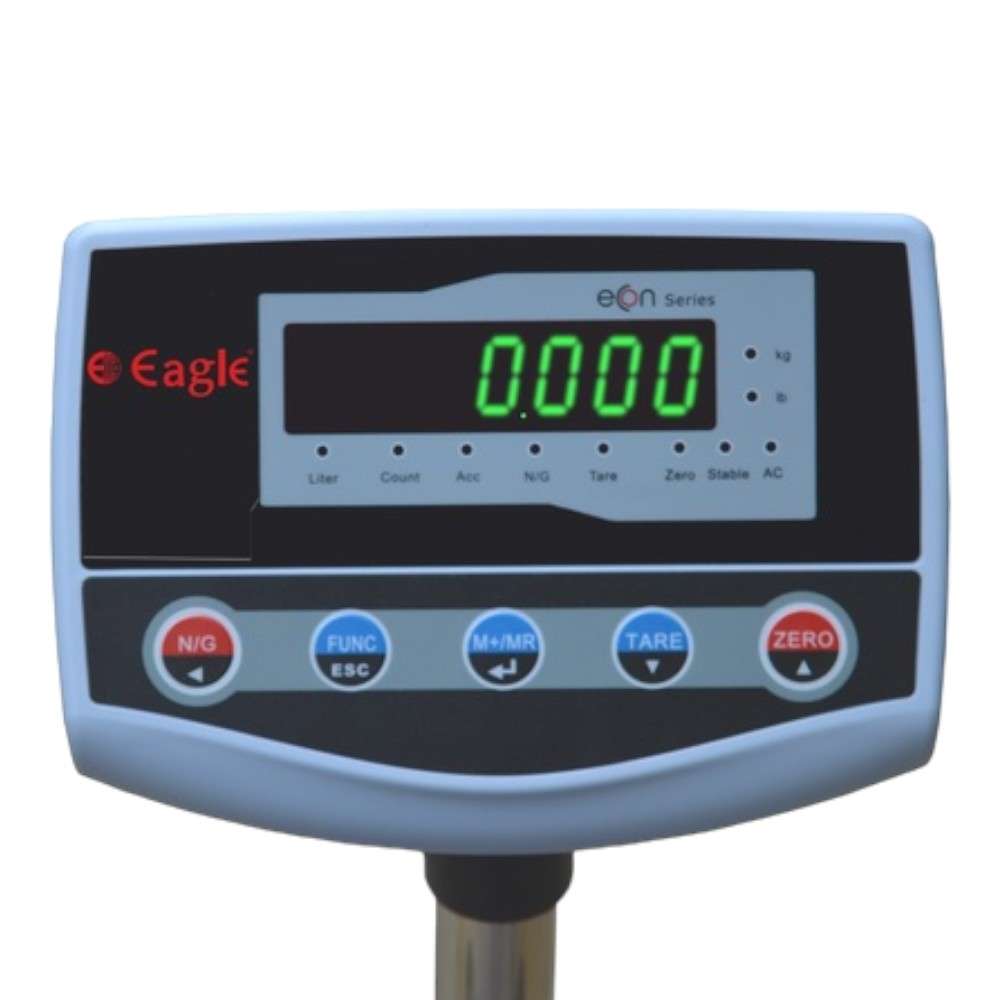

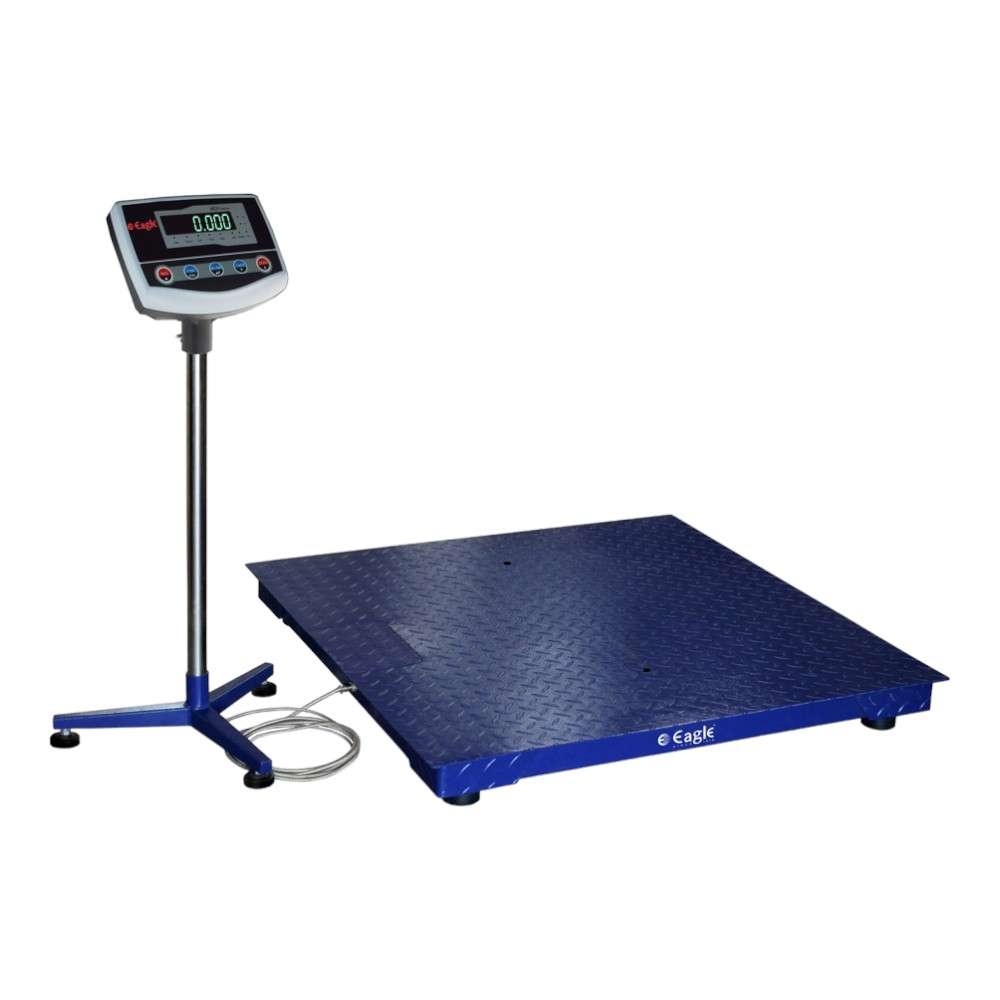

The Eagle PLT-10M ECON is a heavy-duty floor platform scale designed for industrial environments. It weighs up to 3000 kg on a 1000 x 1000 mm platform, with a robust mild steel construction, IP68 protection, and a 20 mm LED display for easy reading in challenging conditions.

Question 2

What are the key specifications I should know about this scale?

Accepted Answer

Platform size: 1000 x 1000 mm. Capacity: 3000 kg. Platform material: mild steel with a chequered surface. Display: 20 mm LED readout. Power: 100–250 V, 50–60 Hz. Protection: IP68. Features include auto tare, zero tracking, liter conversion, anti-slip leveling feet, sealed keypad, and a rugged load cell for accuracy in harsh environments.

Question 3

How does liter conversion work on this scale and when should I use it?

Accepted Answer

Liter conversion lets you estimate liquid volume from weight using the liquid’s density. To use it correctly, you’ll need a known density for the liquid (in kg/L). Once set, the scale can display an approximate volume in liters for that liquid based on the measured weight. This is useful for quick inventory checks of liquids, but keep in mind density variations with temperature can affect accuracy.

Question 4

What are the typical use cases for the PLT-10M ECON floor scale?

Accepted Answer

Ideal for industrial weighing tasks such as pallet or bulk item weighing, inventory checks on shop floors or warehouses, batching in manufacturing, and material handling where a robust, high-capacity platform is required and durable IP68 protection is beneficial.

Question 5

How do I install and start using this floor scale?

Accepted Answer

Place the scale on a level, sturdy surface and adjust the anti-slip leveling feet until the platform is stable. Connect to a suitable power source (100–250 V, 50–60 Hz). Power on, allow the display to initialize, and use the zero tracking and auto tare functions as you place items on the platform. The sealed keypad and simple display are designed for straightforward operation in rugged environments.

Question 6

How do I ensure accuracy and perform basic maintenance on this scale?

Accepted Answer

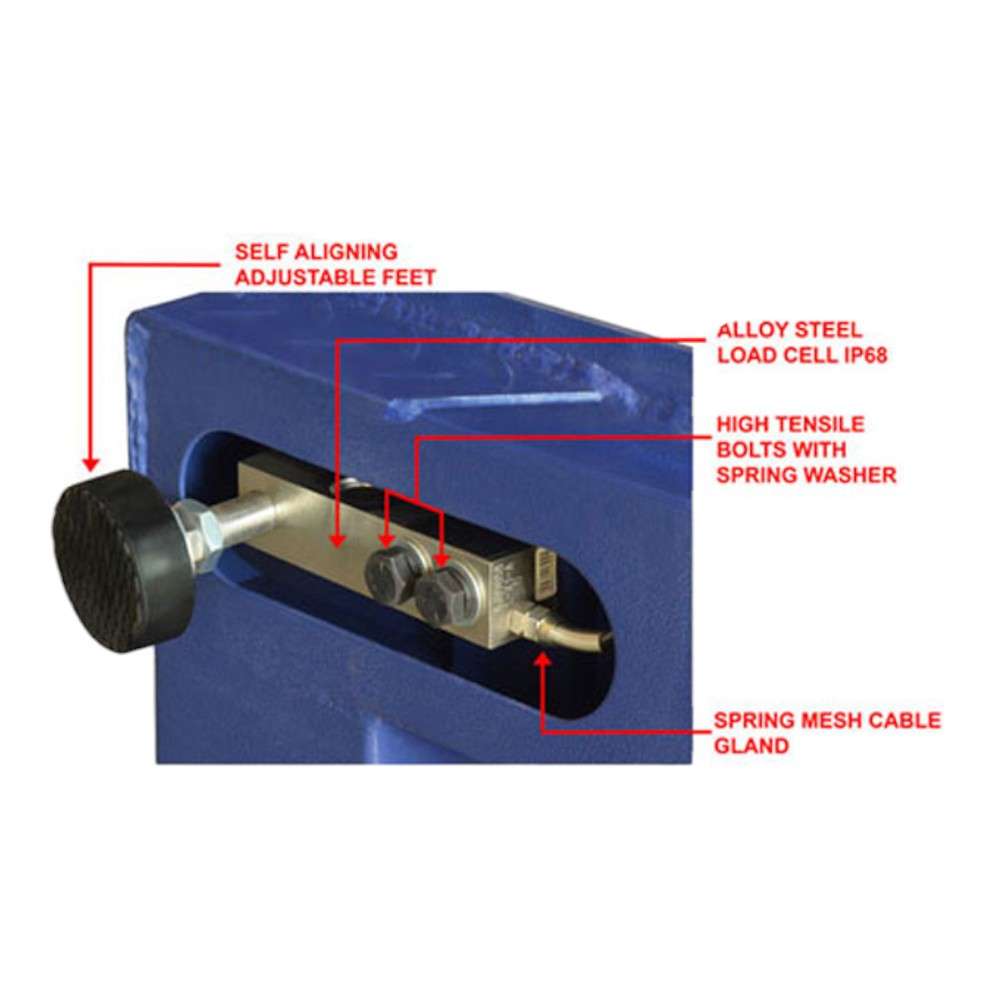

Regularly verify accuracy with known calibration weights and perform a basic check of the auto tare and zero tracking. Keep the platform clean and dry; wipe with a damp cloth, avoiding harsh chemicals. Inspect load cells and electrical connections periodically, and ensure the anti-slip feet remain intact and properly adjusted to keep the scale level.

Question 7

What makes the PLT-10M ECON different from its peers on Fepy.com?

Accepted Answer

Key differentiators include its high 3000 kg capacity on a generous 1000 x 1000 mm platform, IP68 protection for harsh environments, a bright 20 mm LED display, liter conversion capability, auto tare, zero tracking, and a rugged mild steel platform with anti-slip leveling feet for stability.

Question 8

Which similar floor scales are available on Fepy.com, and how do they compare?

Accepted Answer

Here are two close alternatives on Fepy.com for quick comparison: 1) Eagle PLT-6M ECON Floor Weighing Scale — smaller capacity but same robust design. URL: https://www.fepy.com/eagle-plt-6m-econ-floor-weighing-scale 2) Eagle PLT-15M ECON Floor Weighing Scale — higher capacity option if you need more than 3 tons. URL: https://www.fepy.com/eagle-plt-15m-econ-floor-weighing-scale

Question 9

What type of safety and compliance considerations should I be aware of?

Accepted Answer

The scale carries IP68 protection for ingress protection against dust and water exposure, making it suitable for damp or wash-down areas. Do not exceed the 3000 kg rated capacity, and handle with care to avoid overload, which can damage load cells and the electronics. Regular maintenance and proper installation help maintain safety and accuracy.

Question 10

What should I consider when choosing this scale versus other options (value, longevity, and support)?

Accepted Answer

Consider whether you need the 3000 kg capacity and 1000 x 1000 mm platform, the IP68 rating for harsh environments, features like liter conversion, auto tare, and zero tracking, as well as the total cost of ownership including maintenance and potential future calibration needs. Compare with similar models on Fepy to find the best fit for your workflow and budget.

Question 11

What should I expect in the standard package and what practical setup tips can help right away?

Accepted Answer

Expect the floor scale with platform, power connection, and basic user manual. For immediate setup, place the scale on a level surface, secure the anti-slip feet, connect to a power source, power on, and verify zero. Use auto tare to zero the platform with no load before weighing items, and use the large 20 mm display for easy reading in busy environments.

Question 12

Are there recommended accessories or compatible options I can add on Fepy to extend functionality?

Accepted Answer

Yes, you can look for calibration weights, mounting accessories, and data interfaces on Fepy that are compatible with Eagle floor scales. These can help with routine calibration, enhanced data capture, and integration with existing warehouse management systems.

الميزان الأرضي إيجل (Eagle) بحمولة وزنية (3000kg) و بقياس منصة تحميل (1000x1000mm) موديل (PLT-10M ECON)
