زاوية التأطير جيبروك جيبفريم (Saint-Gobain) موديل (GA3) قياس (0.6X3000MM)

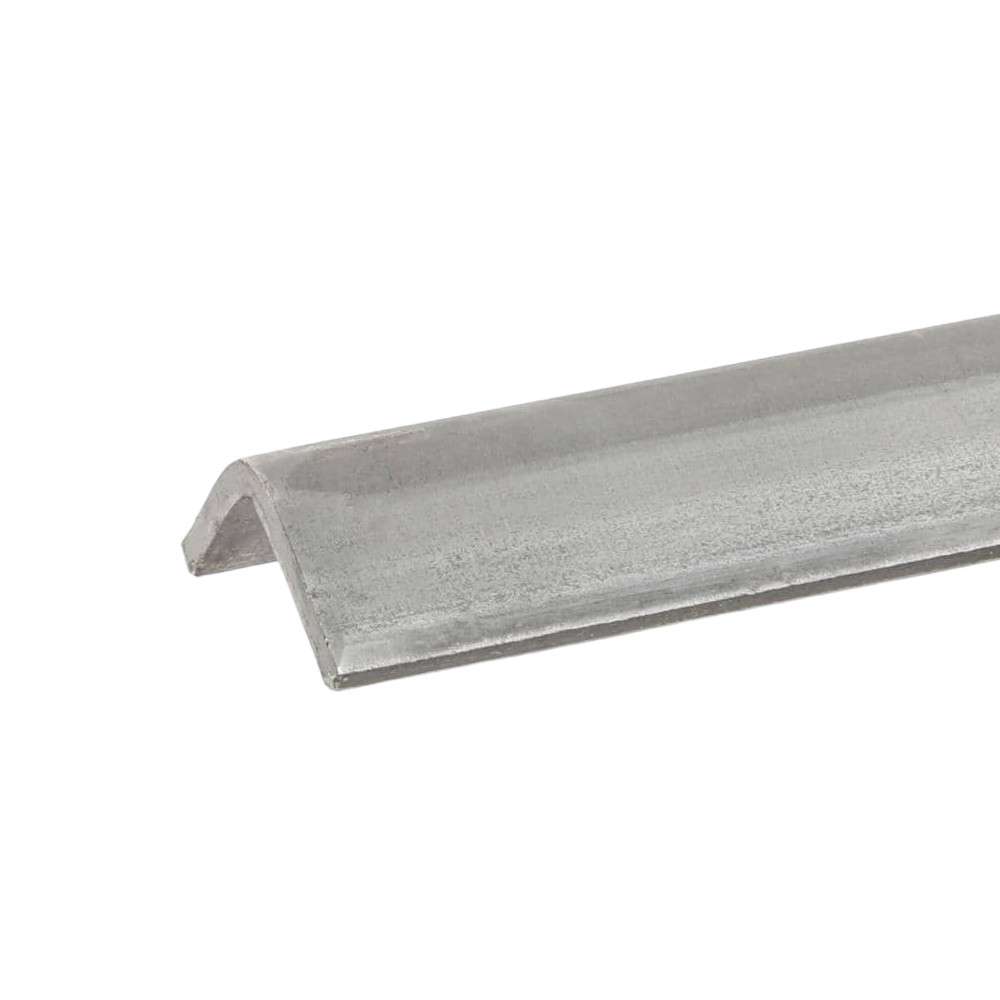

The Gyproc Gypframe GA3 Angle is a strong metal angle profile designed for general plasterboard fixing and framing. It measures 0.6 x 3000 mm and is made from high-grade steel. It provides a sturdy edge and support for walls, ceilings, corners, archways, and other plasterboard installations, with an interlocking clip to hold two pieces together.

Key specs: 0.6 mm thickness, 3000 mm length, high-grade steel construction, interlocking clip to join pieces, designed for general-purpose fixing and plasterboard framing.

Install by screwing the GA3 Angle directly into wall studs or joists using standard wood screws. Align the angle along the edge where support is needed, join sections with the interlocking clip, and secure plasterboard or other components to the frame as required.

Yes. The GA3 Angle can be bent or formed to accommodate non-standard layouts, corners, arches, or other custom shapes, allowing greater flexibility in your plasterboard project.

GA3 Angle is ideal for framing walls and ceilings, reinforcing corners, creating edge supports for plasterboard, and forming recesses or structures like shelves, cupboards, doors, and windows. It works well wherever a sturdy metal edge or frame is needed for plasterboard installations.

Handle with protective gloves to avoid sharp edges. Store in a dry area to prevent corrosion and ensure proper PPE during cutting or bending. While GA3 Angle is designed for general use, follow local building codes and standard safety practices for metal framing and plasterboard installation.

GA3 Angle is a general-purpose profile suitable for a wide range of plasterboard fixings. For lighter fixings, GA2 Angle may be used, while GA4 Angle is typically targeted at heavier-duty applications. See the available alternatives on Fepy for exact specifications and suitability: GA2 Angle — https://fepy.com/product/gyproc-gypframe-ga2-angle; GA4 Angle — https://fepy.com/product/gyproc-gypframe-ga4-angle.

Common use cases include framing walls and ceilings, protecting plasterboard edges at corners, supporting archways or niche openings, and forming recess shelves, cupboards, doors, and windows where a clean, rigid edge is required.

Plan the layout and cut lengths as needed, then fix the GA3 Angle to studs or joists with standard wood screws. Ensure the interlocking clips are engaged when joining sections, and attach plasterboard to the frame or align boards along the edge for a solid finish. Deburr any sharp edges after cutting.

Fepy’s standard return policy applies to GA3 Angle. If you need to return, ensure the product is unused and in its original packaging within the allowed return window, and follow the documented return process on Fepy.

GA3 Angle offers a balance of strength and cost for general-purpose plasterboard fixing. Its 0.6 mm thickness and 3 m length provide durability without excessive cost, making it a practical choice for many standard installations. When evaluating value, consider project requirements, required strength, and compatibility with other Gypframe components (GA2 or GA4) as options to tailor performance and price.
