قناة التثبيت و التأطير العميقة جيبروك جيبفريم (Saint-Gobain) قياس (52-DC-50) طول (3000MM)

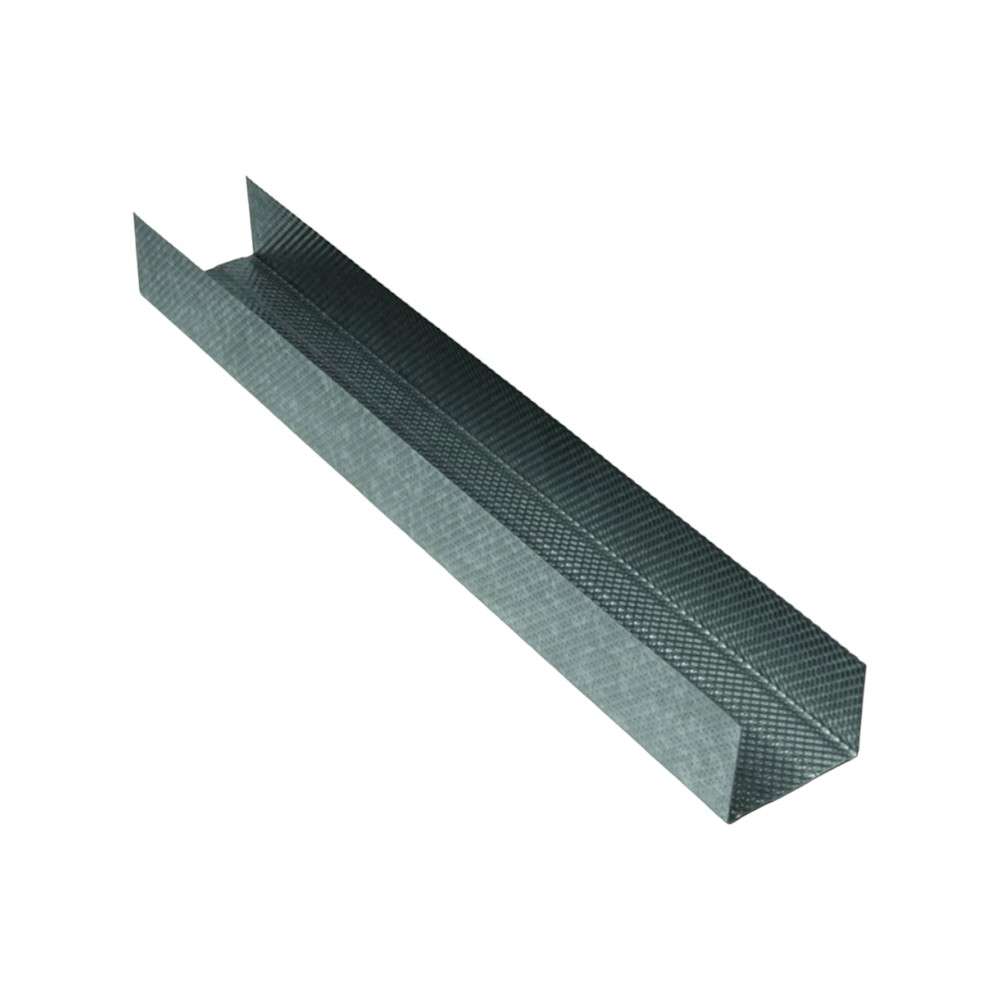

The Gyproc Gypframe deep channel is a metal stud track used to fix walls onto masonry surfaces and to form lightweight partitions, ceilings and similar drylining applications. The 3000 mm length offers flexibility for long runs, while the 52 mm width provides a robust fixing surface.

Length: 3000 mm; width: 52 mm; maximum load capacity: 50 kg; material: steel. The profile features a wider edge for strong masonry contact and a narrower bottom for a neat finish.

The wider edge improves metal to masonry contact, increasing fixing strength and stability, while the narrower bottom minimizes bulk for a clean appearance and easier installation in tight spaces.

Choose the deep channel when fixing to masonry surfaces or when you need higher load capacity and more robust fixing for partitions, ceilings or taller walls. It provides added durability compared with some standard tracks.

Installation steps: plan the layout, cut the channel to length if needed, position it along the wall, and fix it to the masonry using appropriate screws or anchors. Ensure the channel is straight and level, then attach any gypsum boards or studs as required to complete the build.

Use masonry screws or anchors rated for the expected load, preferably corrosion-resistant types. Follow Gyproc installation guidelines for spacing and fixings to ensure a secure connection.

The channel is rated for a maximum load of up to 50 kg. For heavier panels or joints, distribute the load across multiple channels and fixings to avoid concentrating stress in a single point.

Yes. Wear appropriate PPE when handling metal profiles, use proper cutting tools and deburring, store components flat and dry, and ensure fixings are secure and aligned with local drylining/building guidelines.

Alternative Gyproc Gypframe options available on Fepy.com include: 1) Deep Channel 3000mm 50 DC — https://fepy.com/product/saint-gobain-gyproc-gypframe-deep-channel-3000mm-50-dc 2) Drywall Track 3000mm 50 — https://fepy.com/product/gyproc-gypframe-drywall-track-3000mm-50 3) Deep Channel 3000mm 60 DC — https://fepy.com/product/saint-gobain-gyproc-gypframe-deep-channel-3000mm-60-dc. These options vary in depth and load capacity, so choose based on the required fixings and wall type.

Yes, it can be cut to length. Use tin snips or a metal saw, then deburr the cut edge to prevent injury and ensure a clean fit.

Its long 3000 mm length reduces joint points, the 52 mm width provides strong support, and it is designed to integrate with the Gyproc Gypframe system for a faster, tidier installation with reliable performance.

Store flat in a dry area, off the ground and away from rough handling. Keep packaging intact until use to prevent bending or damage, and handle edges with gloves to avoid cuts.
