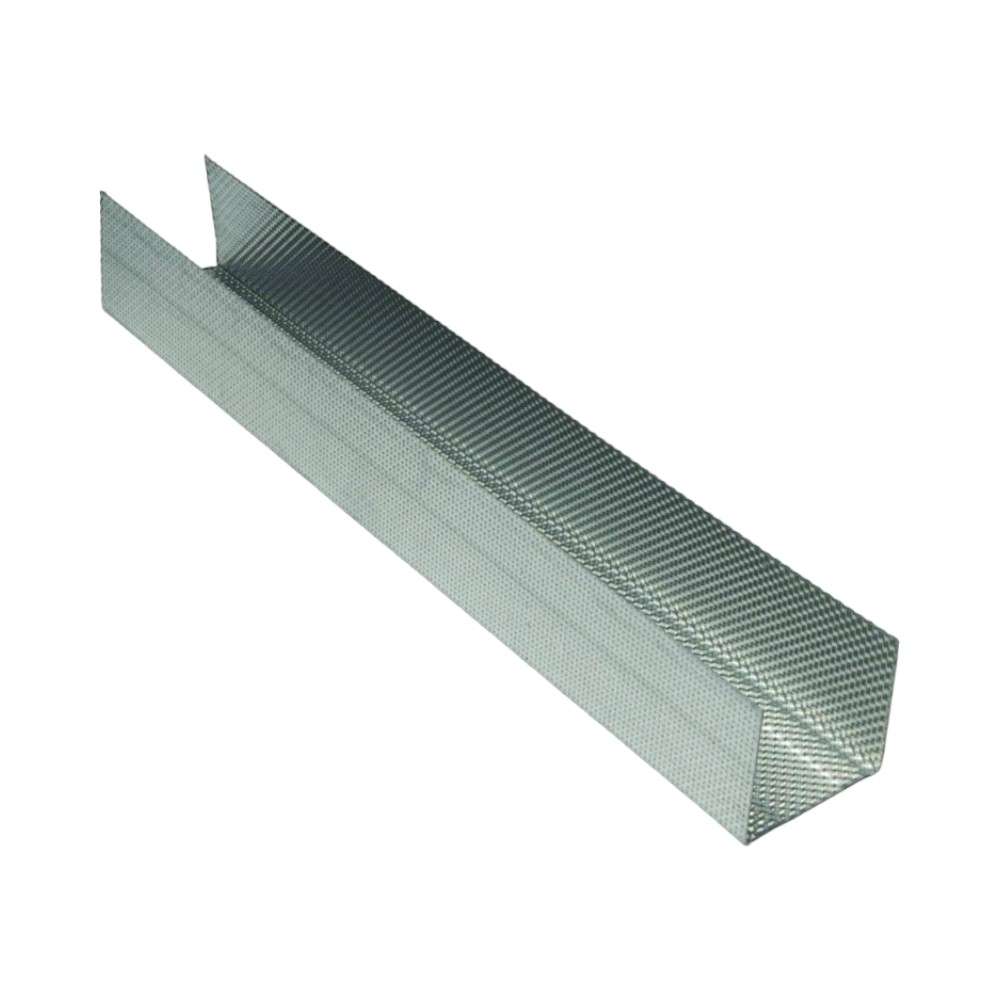

قناة التثبيت و التأطير جيبروك جيبفريم (Saint-Gobain) قياس (94-DC-50) طول (3000MM)

Dimensions: length 3000 mm, width 94 mm, depth 50 mm. Material: hot-dip galvanised steel, engineered for plasterboard framing and enhanced corrosion resistance.

Key benefits include increased stability and rigidity for plasterboard assemblies, a self-supporting design that can speed up installation, improved fire and acoustic performance, and excellent corrosion resistance thanks to hot-dip galvanised steel.

It is suitable for interior walls and ceilings in both renovation and new construction projects where Gyproc plasterboard is used, providing a robust framing solution for dry construction environments.

General installation steps: plan the layout to align with plasterboard sheets, cut the channel to the required length, position it where framing is needed, and fix the channel to the structural framework or existing studs using appropriate self-tapping screws. Ensure channels are plumb and level, then proceed with attaching plasterboard panels to the channel framing according to Gyproc installation guidelines.

You’ll typically need metal-cutting tools (snipe or saw) to cut the channel, a tape measure, a level, tin snips, and self-tapping screws compatible with Gyproc systems. Have a drill/driver handy for driving screws and any additional fixings specified by your Gyproc design plan.

Wear appropriate personal protective equipment such as gloves and eye protection when handling and cutting metal channels. Be mindful of sharp edges, follow electrical safety precautions in walls/ceilings, and ensure the work area is clear of obstructions during installation.

The deep channel design contributes to fire performance and acoustic stability when used as part of a Gyproc system. The hot-dip galvanised steel offers excellent corrosion resistance, enhancing long-term durability in interior dry environments.

Yes. It is designed for use with Gyproc plasterboard systems. For best results, follow Gyproc installation guidelines and ensure you’re pairing it with suitable plasterboard thickness and profiles as per your project specifications.

Store channels in a dry, well-ventilated area, kept flat or supported to prevent bending. Protect edges from damage and moisture, and transport with care to avoid personal injury from sharp edges.

This channel provides a robust, long-lasting framing solution for Gyproc plasterboard projects, delivering value through strength, corrosion resistance, and compatibility with Gyproc systems. If you need to return unused or unopened items, refer to Fepy’s standard return policy as applicable at the time of purchase.
