زاوية تثبيت الجدران جيبروك (Saint-Gobain) على شكل حرف (T) قياس (3600MM)

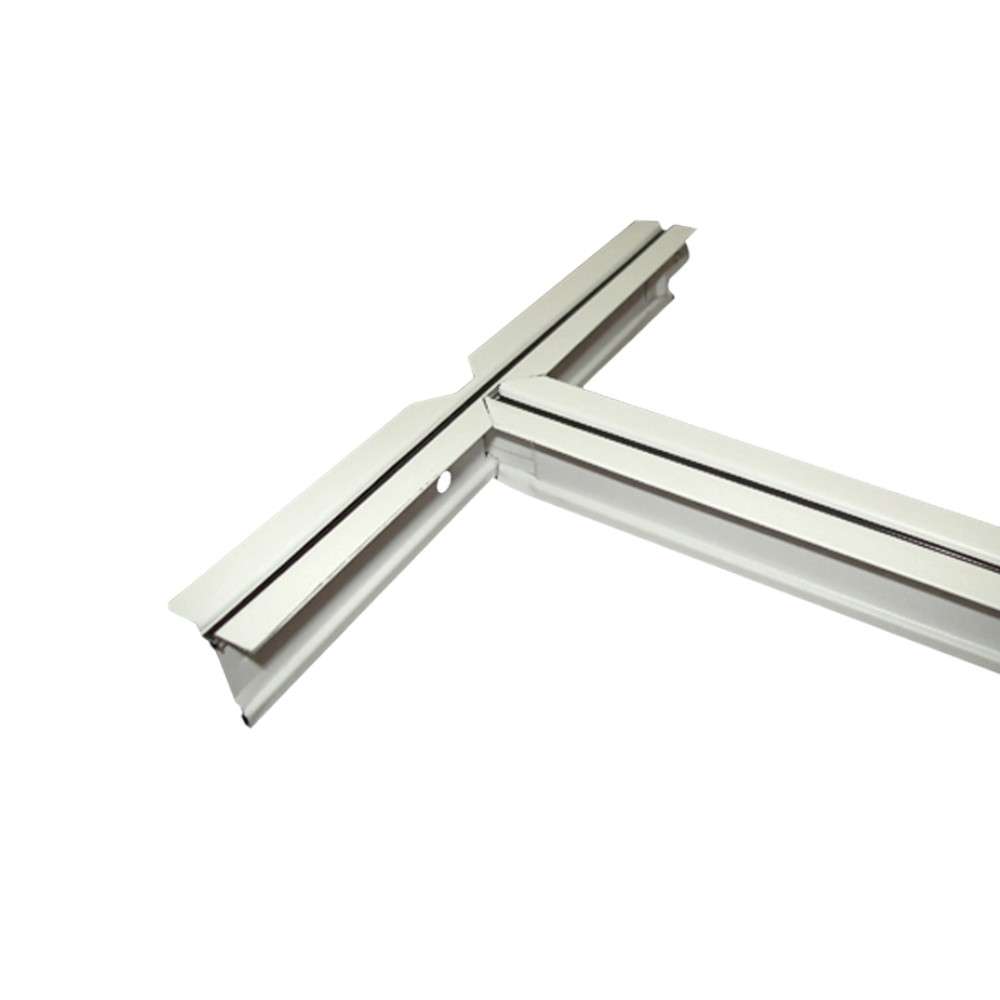

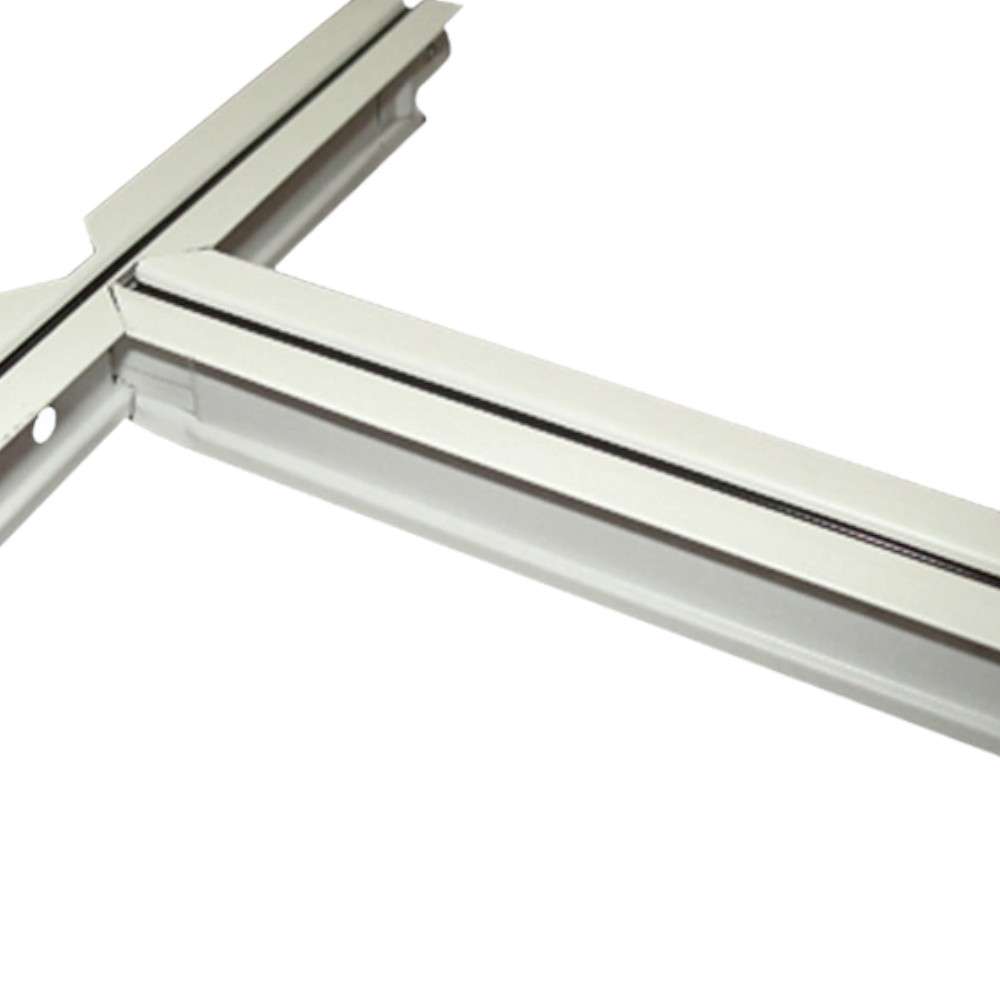

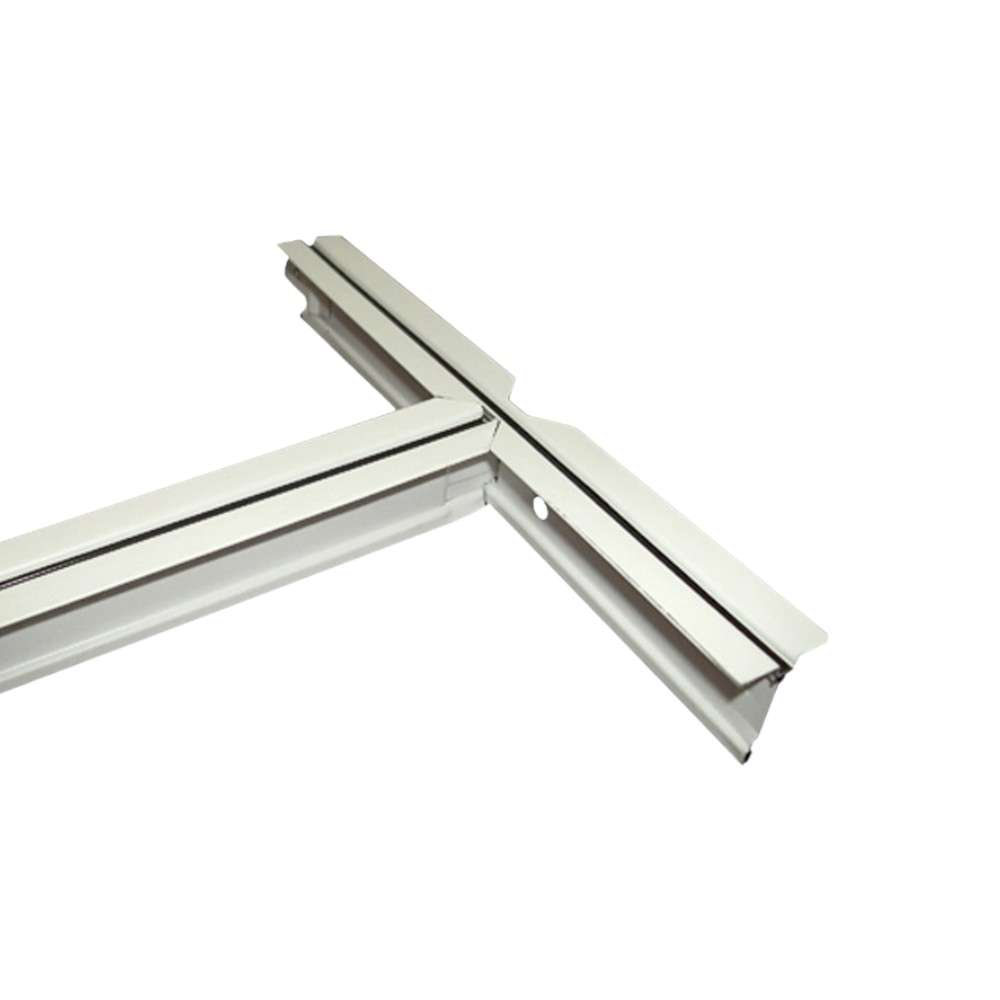

The 3600MM T Wall Angle is a lightweight, pre-painted galvanized steel profile used to connect two Gyproc walls within Gyproc Gypframe systems. It creates a robust, stable connection between walls and provides a ready-to-use edge for plasterboard mounting.

Key specs: length 3600 mm; lightweight yet durable steel profile; compatible with Gyproc Gypframe metal systems; pre-painted finish (no extra painting required); corrosion-resistant for internal and external applications; available in a range of sizes from 1280 mm to 3600 mm to suit different projects.

Installation is straightforward: cut the angle to the required length if needed, align it to the wall where two panels meet, and fix it using suitable self-tapping screws for metal framing. Secure at appropriate intervals, typically aligning with studs or framework, then attach plasterboard panels to the profile as you normally would.

Use it to connect two Gyproc walls, especially in external walls with plasterboard-faced insulation panels or internal walls using plasterboard-faced insulation panels. It provides a stable, precise joint and supports the plasterboard alignment across long runs.

Wear appropriate PPE (gloves, eye protection) when handling cut metal. Handle edges carefully to avoid cuts, and follow standard metal framing installation practices to ensure a secure, code-compliant connection. Ensure cut and fixings are appropriate for your local building regulations.

The 3600mm length reduces the number of joints along long walls, offering a cleaner, quicker install for long runs. Shorter variants (e.g., 1280 mm or 2400 mm) are easier to handle individually and are useful for smaller sections or tighter spaces, but may require more joints.

You’ll typically need a tape measure, pencil, tin snips or metal-cutting tool, a drill/driver, and self-tapping screws suitable for Gyproc metal framing. Use appropriate screw length to penetrate into the framework without over-tightening.

Yes, the wall angle is pre-painted, so no additional painting is required for most installations. This helps achieve a finished look quickly and reduces post-installation work.

Its combination of lightweight yet robust steel, pre-painted finish, and a long 3600 mm length minimizes joints and installation time, which can lower labor and material costs on larger projects while delivering a reliable connection for Gyproc walls.

This 3600 mm T Wall Angle is designed to fit Gyproc Gypframe metal systems and is part of a family of wall angles offered by Saint-Gobain Gyproc. Choose the length to suit your project; all sizes are intended to work within Gyproc Gypframe wall assemblies for consistent performance.

For other lengths, you can explore: Gyproc Gypframe 1280mm T Wall Angle at https://fepy.com/product/gyproc-gypframe-1280mm-t-wall-angle and Gyproc Gypframe 2400mm T Wall Angle at https://fepy.com/product/gyproc-gypframe-2400mm-t-wall-angle. These are part of the same Gyproc Gypframe family and are suitable for different project requirements.
