Question 1

What is the Hager 1Pole 6Ka MCB and what does it protect?

Accepted Answer

The Hager 1Pole 6Ka MCB is a single-pole miniature circuit breaker with a 6 kA breaking capacity. It provides overload and short-circuit protection for a circuit, and it includes residual current protection (earth-leakage/ground-fault protection) with an integral test push button for verification.

Question 2

What are the key specifications I should know about this MCB?

Accepted Answer

Key specs include: 1-pole design, breaking capacity of 6 kA, current rating options up to 16 A (typical selectable ratings within that range), aluminum-zinc alloy case, stainless steel contact springs, and an integral test push button for leakage protection verification. It is designed for rapid installation in a wide range of applications.

Question 3

Is this MCB suitable for both residential and light industrial use?

Accepted Answer

Yes. Its robust construction and 6 kA breaking capacity, along with residual-current protection, make it suitable for residential circuits as well as light commercial or industrial wiring where protection from overloads, short circuits, and earth leakage is needed.

Question 4

How does the residual current protection work in this MCB?

Accepted Answer

The device includes residual current protection to detect earth-leakage currents, providing an additional safety layer beyond overcurrent protection. You can test its function using the integrated test push button to verify proper operation.

Question 5

How do I install this MCB on a DIN rail?

Accepted Answer

Power should be off before installation. Mount the MCB onto the DIN rail, align it with the bus bar, connect the line (incoming) and load (outgoing) conductors to the terminals, and ensure screws are tightened to spec. The fast-install design is intended to make this process quick and secure.

Question 6

How do I test the protection to ensure it’s functioning correctly?

Accepted Answer

Use the integral test push button to simulate a leakage/earth-leakage condition or to verify the device’s protective function. If the MCB trips when pressed, the protection circuit is operating as intended. If it does not trip, the unit should be inspected or replaced by a qualified electrician.

Question 7

What safety and compliance standards does this MCB meet?

Accepted Answer

The MCB is designed to meet recognized safety standards and is described as compliant with IEC and UL guidelines. It uses a durable aluminum-zinc alloy case and stainless steel contact springs to enhance reliability and safety in operation.

Question 8

How do I choose the right current rating (6 A vs 10 A vs up to 16 A) for my circuit?

Accepted Answer

Select a rating based on your circuit’s expected continuous load and protection requirements. The product line includes ratings up to 16 A, with 6 A and other common values typically available. In residential or light commercial setups, an engineer or electrician can help determine the appropriate rating to balance protection and nuisance tripping.

Question 9

How do I replace an existing MCB with this Hager unit?

Accepted Answer

Identify the correct current rating and verify compatibility with your panel and busbar. Power must be off, remove the old breaker, mount the Hager MCB on the DIN rail, connect the conductors to the correct terminals, tighten connections, and perform a test using the push button. If you’re unsure, consult a licensed electrician.

Question 10

Is this MCB compatible with other brands or RCBOs in a panel?

Accepted Answer

This is a 1-pole MCB designed for standard DIN-rail installations. Compatibility with other brands or RCBOs depends on the panel’s design and busbar configuration. Always ensure the physical fit, electrical ratings, and protective coordination align with your system requirements.

Question 11

What are some good alternatives on Fepy.com, and how do they compare?

Accepted Answer

If you’re exploring options on Fepy.com, you can compare similar 1-pole MCBs from Hager, Siemens, and Schneider Electric. Examples include: Hager 1Pole 6A MCB (https://fepy.com/product/hager-1pole-6a-mcb), Siemens 1Pole 6A MCB (https://fepy.com/product/siemens-1pole-6a-mcb), and Schneider Electric 1Pole 6A MCB (https://fepy.com/product/schneider-electric-1pole-6a-mcb). These alternatives share similar form factors and ratings and can be selected based on availability, price, and any brand preferences. When comparing, look at rating (A), breaking capacity (kA), presence of residual-current protection, and mounting compatibility.

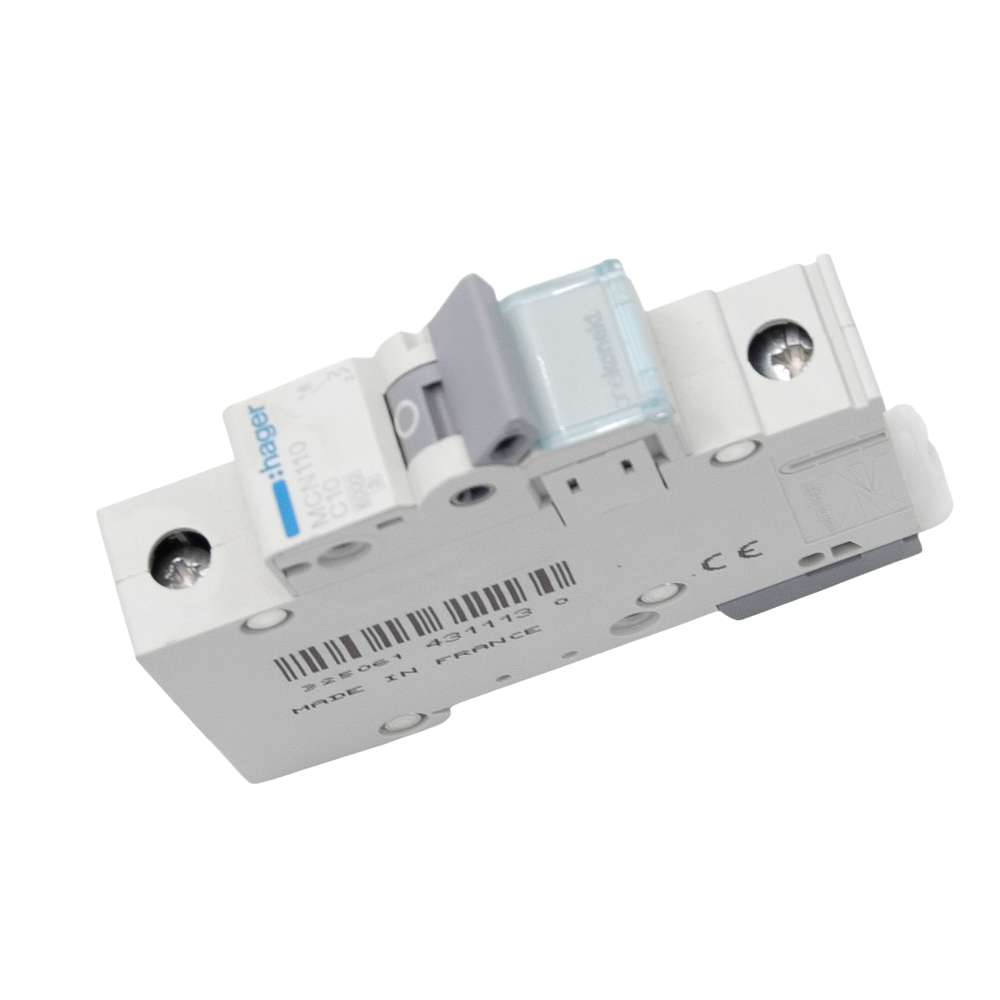

Item Name	Hager Miniature Circuit Breaker - MCB 1 Pole 10A 6KA
Brand	Hager
Model No	MCN110
Number Of Poles	1 P
Type Of Pole	1 P
Curve	C
Frequency	50/60 Hz
Type Of Supply Voltage	AC
Rated Operational Voltage UE	230/400 V
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4000 V
Magnetic Regulating Current At 40° C	5/10 In
Power Loss Per Pole At In	1,63 W
Total Power Loss Under In	1,63 W
Electric Endurance In Number Of Cycles	4000
Number Of Mechanical Operations	20000
Depth Of Installed Product	70 Mm
Height Of Installed Product	83 Mm
Width Of Installed Product	17,5 Mm
Standard Text	EN 60898-1
European Directive Wee	Concerned
Safety Protection Index IP	IP20
Operating Temperature	-25 … 70 °C
Storage Temperature	- 25 To 80 °C
Air Humidity Protection	For All Climates
Storage/Transport Temperature	-25 … 80 °C

قاطع الدارات الأحادي المصغّر (mcb) قياس (10A) من (Hager) حتى (6ka) نوع (mcn110)
