رأس تشذيب مسطح من ماكيتا (12mm) قياس (8mm) وطول القطع وقطر الساق (12mm)

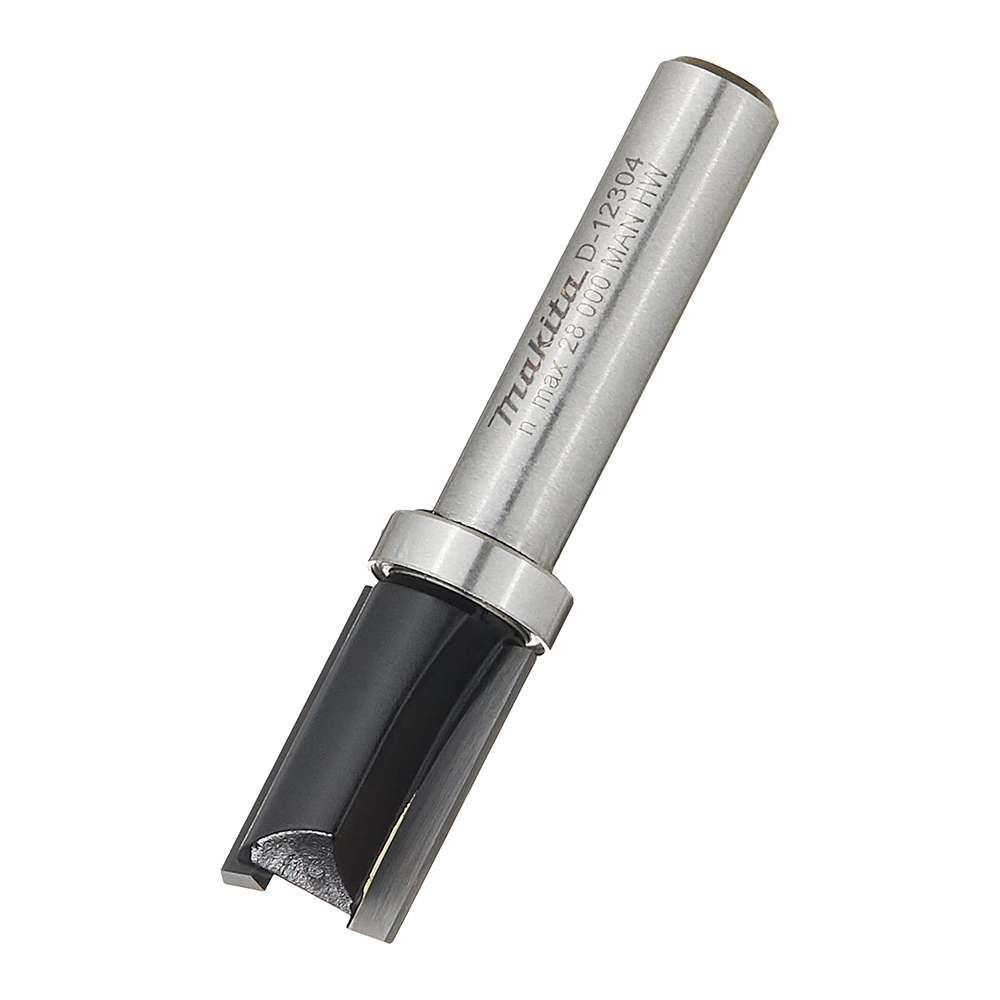

Cutting diameter: 12 mm; Cutting length: 19 mm; Shank diameter: 8 mm. The bit is designed for routers that accept 8 mm shank bits and provides a compact profile for detailed trimming work.

This flush trim bit is well-suited for wood and laminate surfaces. It delivers a smooth finish with reduced splintering when used with proper technique and a sharp cutter.

Ensure your router accepts an 8 mm shank bit and that the bit is properly tightened in the collet. Set the depth to slightly exceed the finished thickness, secure your workpiece, and guide the router along the template or edge with steady, uniform feed. Keep the bit cool and avoid forcing the router.

Use the ball-bearing guide to follow templates or edges for consistent tracking. Clamp your workpiece securely, keep the cut shallow and progressive, and maintain a steady feed rate to minimize tear-out and produce a clean edge finish.

The ball-bearing guide rolls along the workpiece edge or template, guiding the bit for precise, repeatable cuts. This is especially helpful for patterns, edge trimming, and copying shapes with high accuracy.

Wear eye and hearing protection, secure the workpiece with clamps, and keep hands away from the bit path. Use the router in a controlled manner, unplug before changing bits, and avoid freehand routing on delicate laminates to reduce tear-out.

Clean the bit after use to remove any dust or resin, lightly inspect the cutting edges for dullness or chips, and store it in a protective case or holder to prevent damage. Proper storage and occasional sharpening (if applicable) help maintain performance.

Routers that support 8 mm shank bits can use this D-12304. Most common handheld and professional routers accommodate 8 mm shanks, but always verify your router’s collet size and maximum RPM for plywood, laminate, or pattern-cutting tasks.

Compared to other 12 mm flush trim bits on Fepy, the D-12304 distinguishes itself with its ball-bearing guide for tracking precision and Makita’s typical build quality. When choosing, consider bearing type, cutting length, shank size, and the overall edge finish you need. You can explore similar options on Fepy via search results for flush trim bits.

Typically you’ll receive the 12 mm flush trim bit itself. The value comes from Makita’s build quality, the ball-bearing guide for accuracy, and the bit’s suitability for laminate and edge-trimming tasks. If you need multiple profiles or longer cutting length, you may compare with other options on Fepy to find the best fit for your project.

For pattern copying, align the template, secure both template and workpiece, and guide the bit along the template edge using the bearing. For edge trimming, keep the bearing aligned to the workpiece edge, maintain a steady feed, and avoid plunging too deep in a single pass. Use shallow passes and test on scrap material first.
