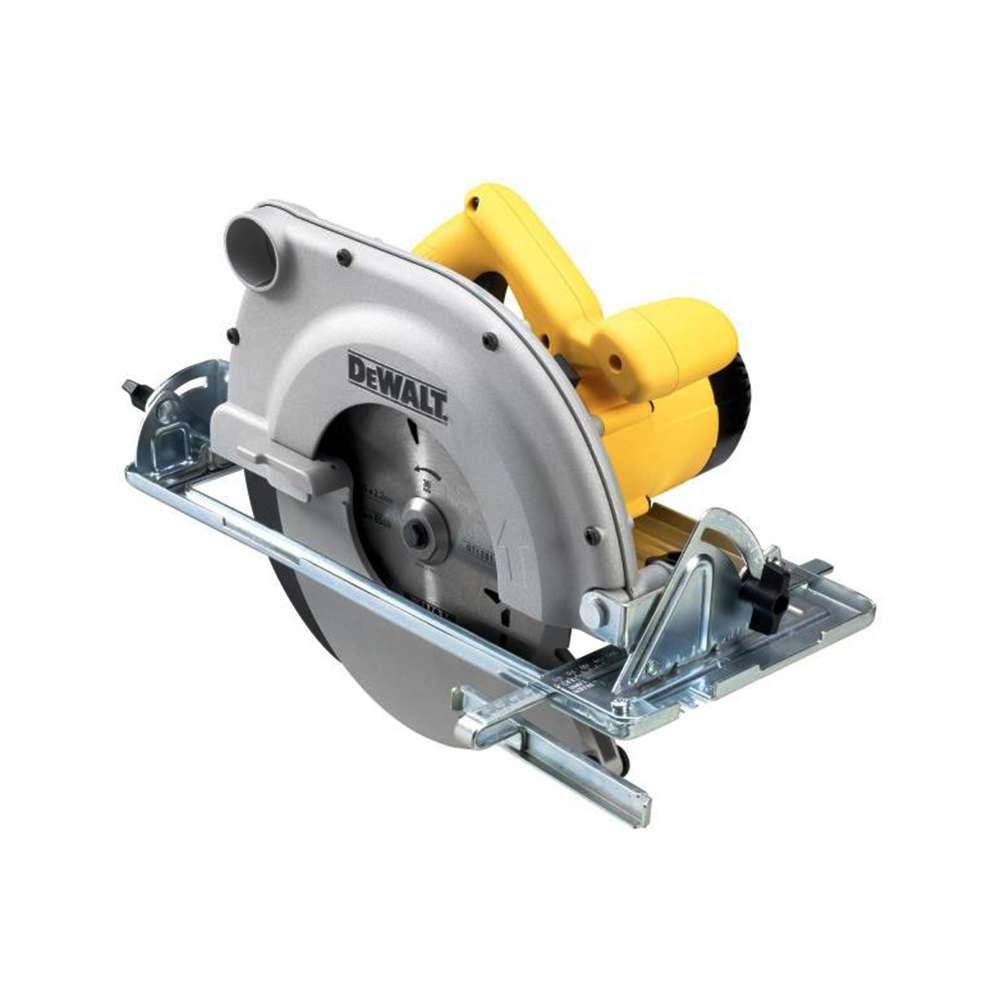

Dewalt 235mm 1750W Circular Saw

Core specs: 235 mm blade diameter, 86 mm maximum cutting depth, 1750 W motor, no-load speed up to 4700 RPM, 0–45° bevel range, and a swing stop function. It also features a die-cast aluminum base, spindle lock, and dust extraction ports for better visibility.

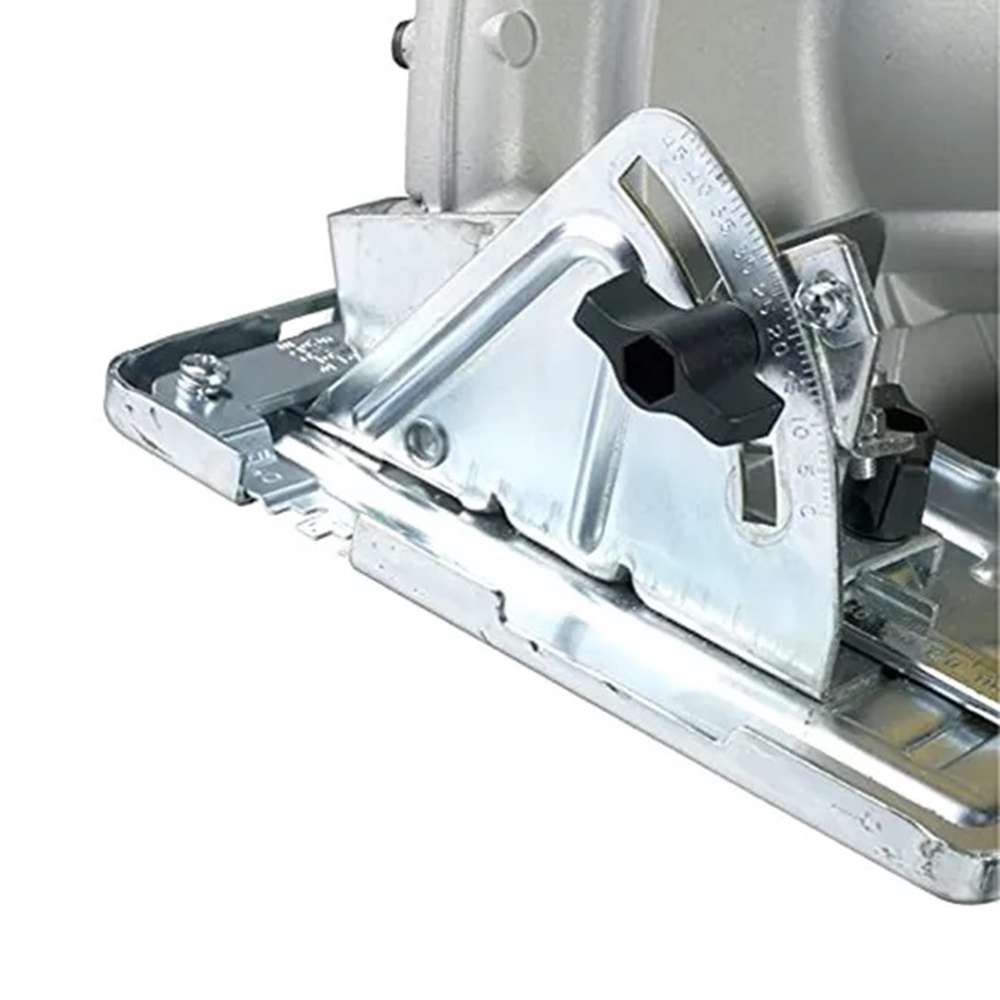

To cut at a specific depth, loosen the depth adjustment, set the base to the desired position against the material, and lock it in place. For bevel cuts, tilt the shoe to the chosen angle between 0 and 45°, then lock the bevel. The swing stop helps repeat consistent bevels on multiple cuts.

Key safety features include a spindle lock for safe blade changes, a blade guard that retracts during cutting, and integrated dust ports to keep the work area cleaner. Always wear appropriate PPE, keep hands away from the blade, and unplug before maintenance.

Unplug the saw, engage the spindle lock, use the appropriate wrench to loosen the arbor nut, replace the blade with teeth facing forward, re-tighten the nut, and ensure the blade guard returns to cover the blade fully before use.

Best results come from cutting wood, plywood, and similar materials with a sharp, suited 235 mm blade. Always match the blade to the material (e.g., wood blades for lumber, composite blades for engineered boards) and follow the blade manufacturer's guidelines for speed and feed rates.

The saw features left and right dust extraction ports designed to connect to a dust collection system or vacuum. This helps remove sawdust from the cut line, improving visibility and reducing cleanup time.

Only use blades and accessories that are designed for 235 mm circular saws and compatible with the Dewalt arbor system to ensure safe and reliable operation. Always verify compatibility before purchasing accessories.

This model stands out with a high-power 1750 W motor, 4700 RPM no-load speed, and a robust die-cast aluminum base plus dual dust ports for visibility. At the moment, there are no exact direct equivalents listed on Fepy with the same spec combination; you can browse related 235 mm saws on Fepy for alternatives that best fit your needs.

Yes, the saw includes a detachable base, which aids transport and storage and can simplify use when pairing with other compatible tools or jigs.

When not in use, keep the saw in a dry, clean environment. Use the detachable base to reduce setup time, and store with the blade removed or covered when possible. Transport in a protective case or padded bag to prevent impact damage.

Maximize value by using the correct blade for each material, performing regular maintenance (clean the dust ports, inspect the guard, and lubricate moving parts as recommended), and replacing worn components only with genuine or compatible parts. Regular, safe operation helps extend tool life and maintain cutting accuracy.
