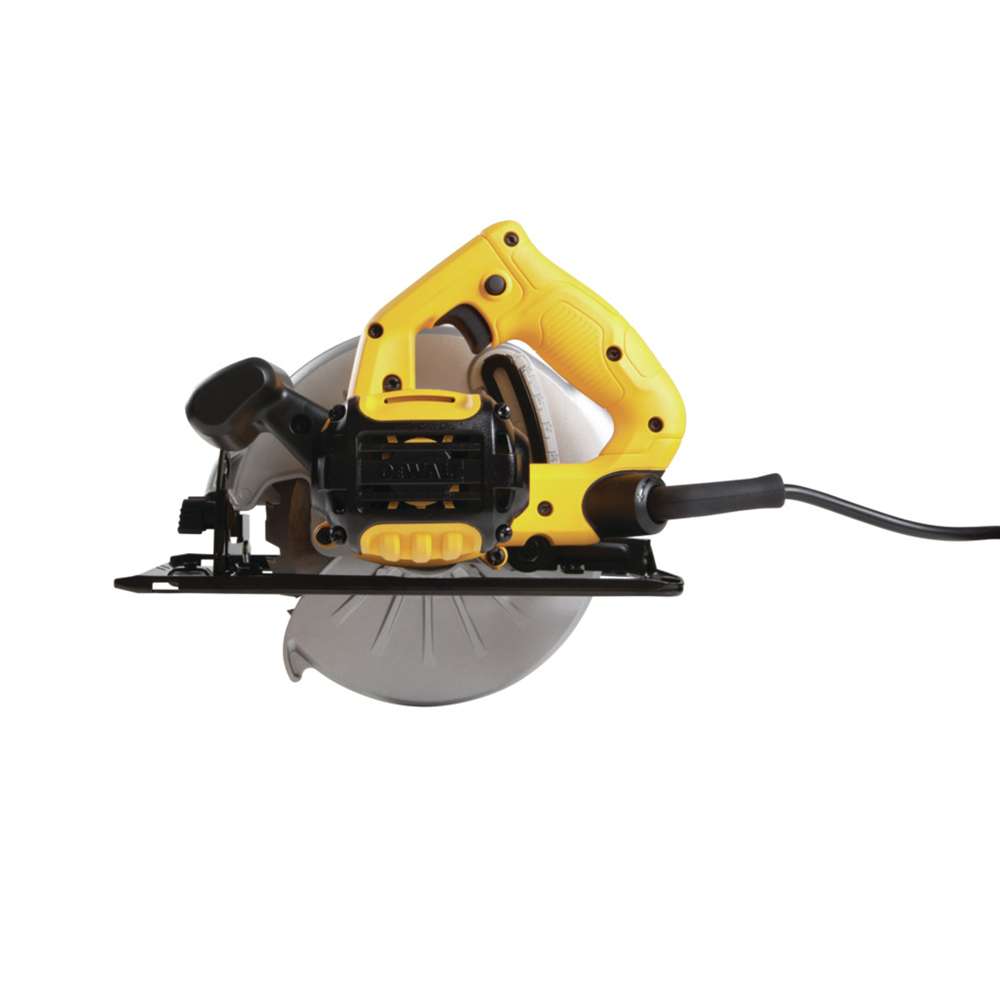

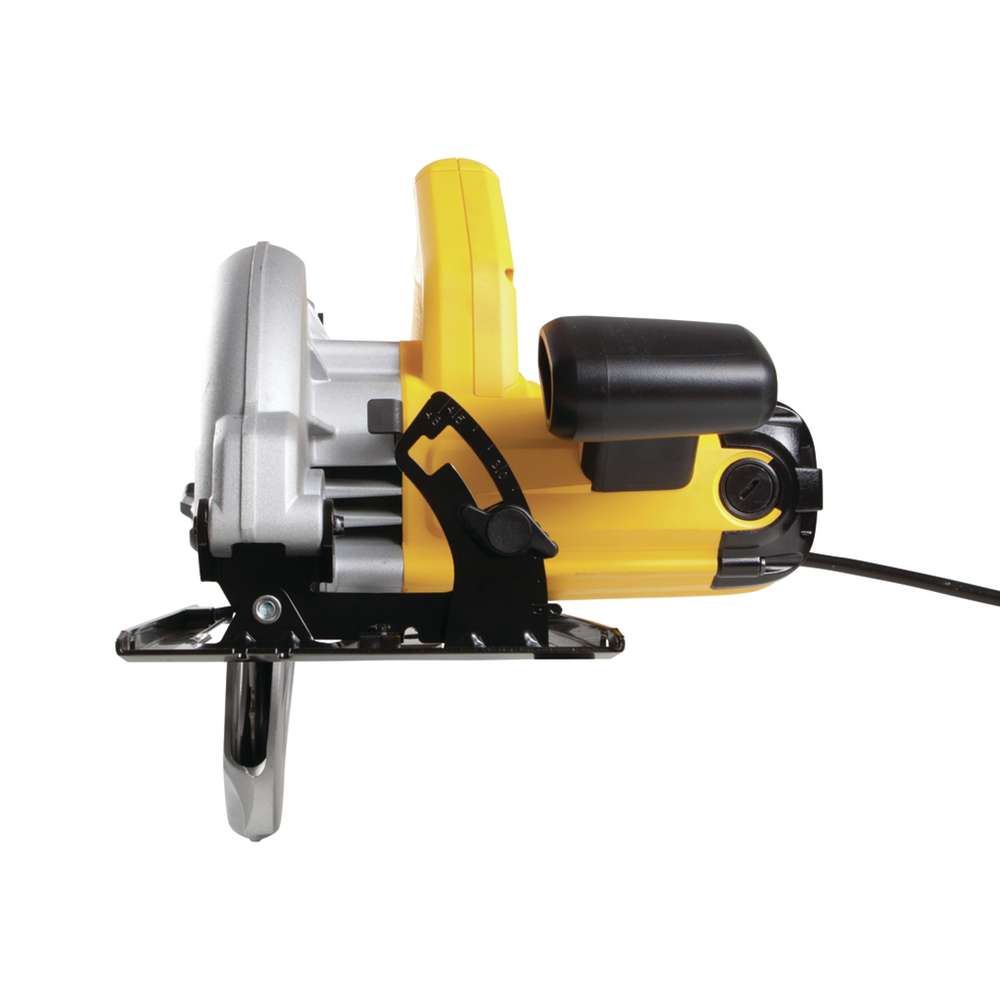

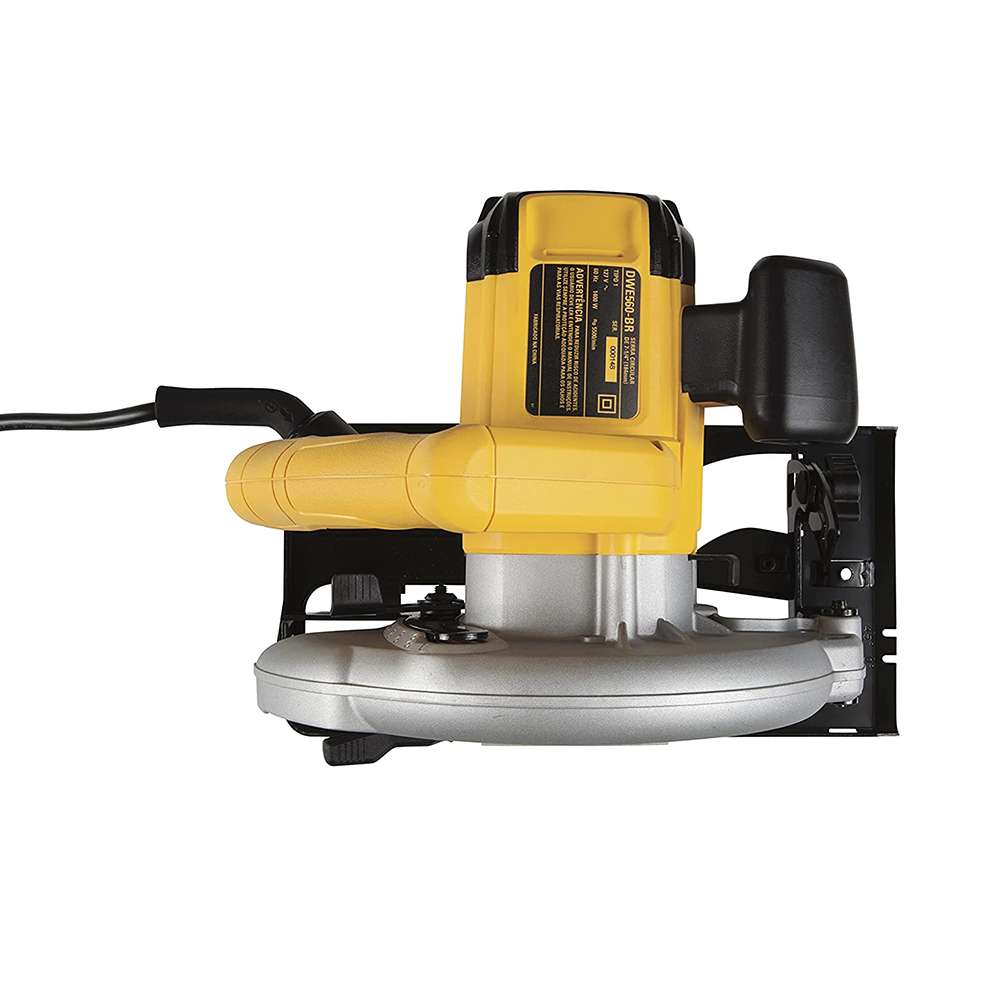

Dewalt 185mm Compact Circular Saw

blade diameter: 185 mm; maximum cut depth: 67 mm; no-load speed: 3400–4500 RPM with electronic feedback for stable performance; included blade: 24T carbide-tipped; features: tool-free blade change, spindle lock, adjustable guide plate for miters, dust extraction port, robust base plate with anti-slip design.

Unplug the saw, use the spindle lock to immobilize the arbor, rotate the blade to align and remove the old one, then install a new 185 mm blade and securely tighten. The spindle lock and tool-free blade change system are designed for quick, easy blade swaps.

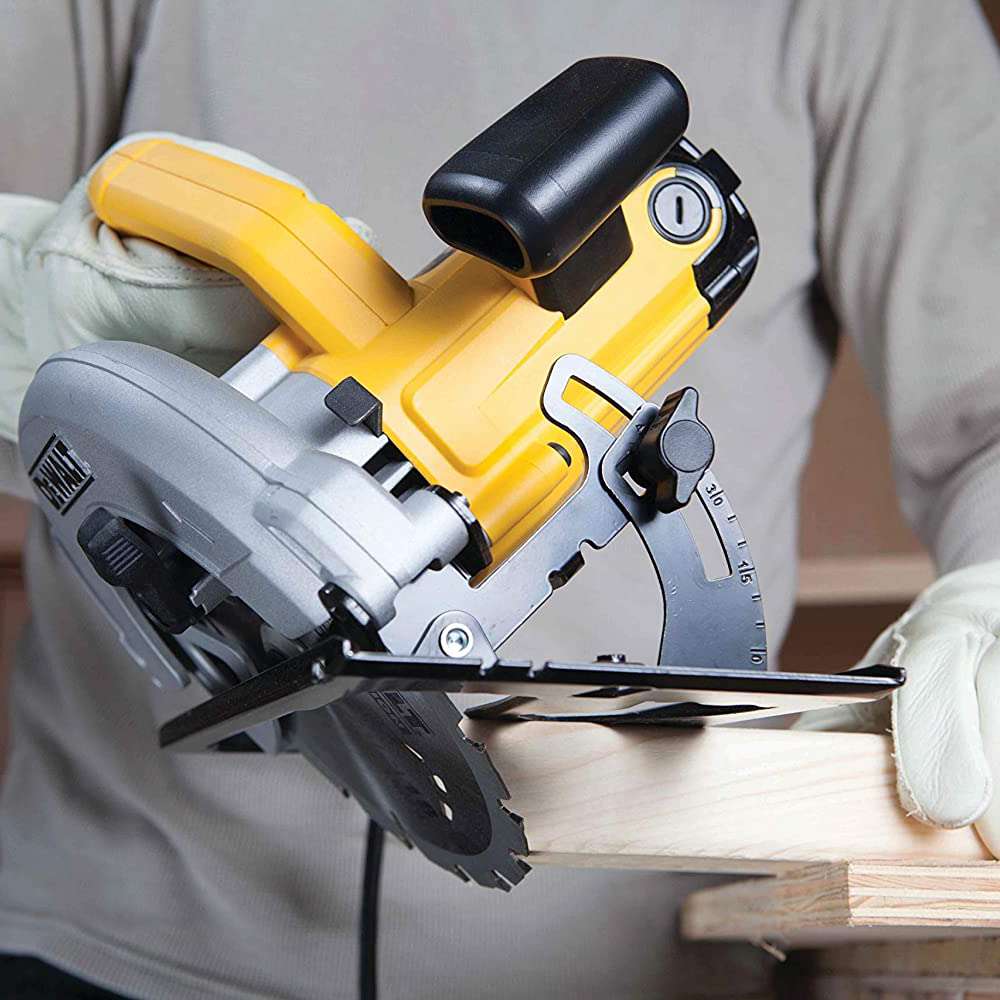

The product description highlights an adjustable guide plate for mitre cuts, enabling angled straight cuts. Bevel tilt (sloping cuts) is not specified, so it’s best used for straight cuts and mitre-style cuts as described.

Set the blade depth to slightly above your workpiece, align the cut line with the guide plate, connect a dust extractor to the integrated port, secure the workpiece, wear PPE, and push the saw steadily through the cut after ensuring the blade guard and base plate are properly engaged.

Always wear appropriate PPE (eye, ear, and hand protection), keep hands away from the blade, ensure the blade guard moves freely, unplug before blade changes, and use the dust extraction system to minimize airborne dust for a cleaner, safer workspace.

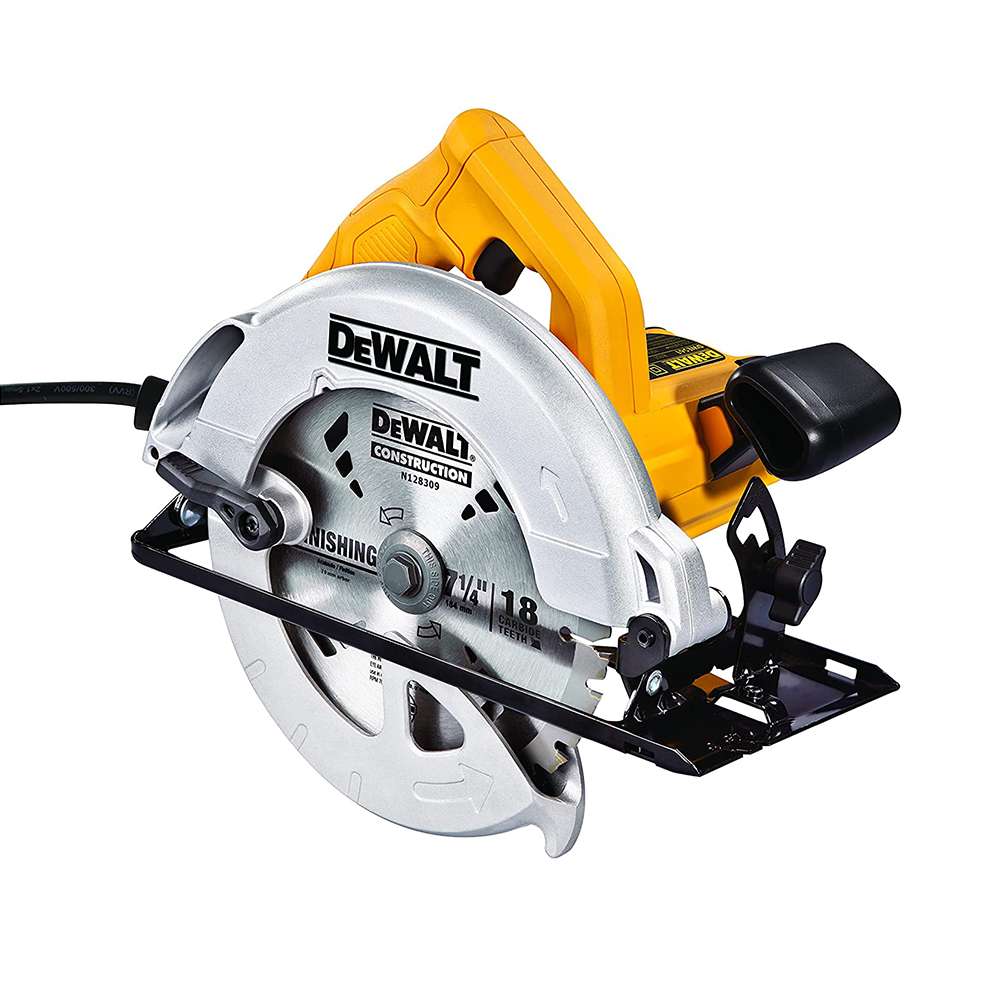

The package includes the Dewalt DWE560-B5 compact circular saw and a 24T carbide-tipped blade. The saw features a spindle lock for quick blade changes and a durable dust extraction port.

Compared to other compact 185mm saws on Fepy, this model emphasizes a lightweight, ergonomic design with a robust anti-slip base, a 24T carbide blade, tool-free blade changes, and a flexible dust extraction port for better dust control. For side-by-side options, you can explore similar offerings here: https://fepy.com/product/dewalt-165mm-compact-circular-saw and https://fepy.com/product/bosch-185mm-compact-circular-saw

It's well-suited for framing tasks, decking, cabinetry work, and other projects requiring precise straight cuts in wood. The compact size makes it easy to maneuver in tight spaces, while the 67 mm depth and mitre-capable guide plate support a range of common carpentry applications.

The included 24T carbide blade handles general-purpose wood cutting. For different materials, use 185 mm blades with appropriate tooth counts and carbide tips (e.g., higher TPI blades for plywood or hardwood). Always ensure blades are compatible with the 185 mm arbor and that you follow the tool’s blade mounting instructions.

Keep the dust extraction port clear and connected to a vacuum, check the base plate and guide for wear, clean off accumulated debris after use, and periodically verify the blade is sharp and properly mounted with the spindle lock engaged during blade changes.
