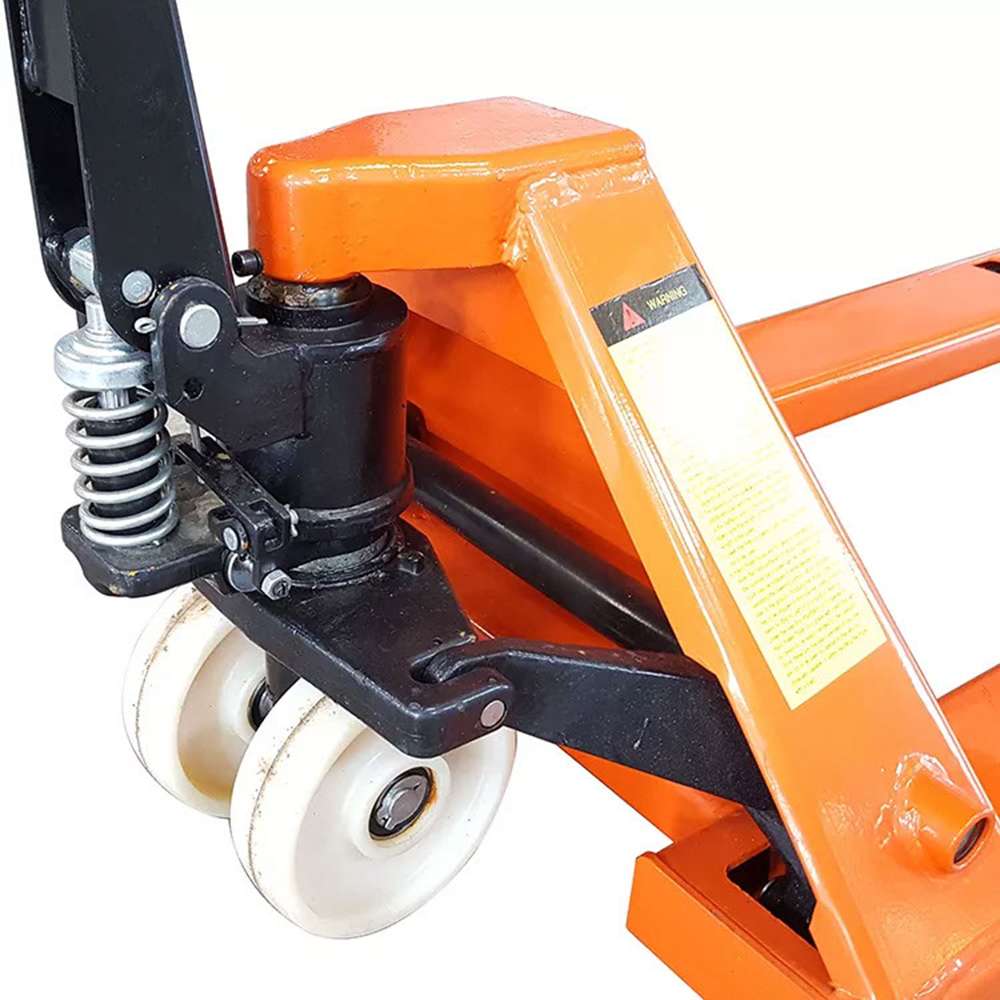

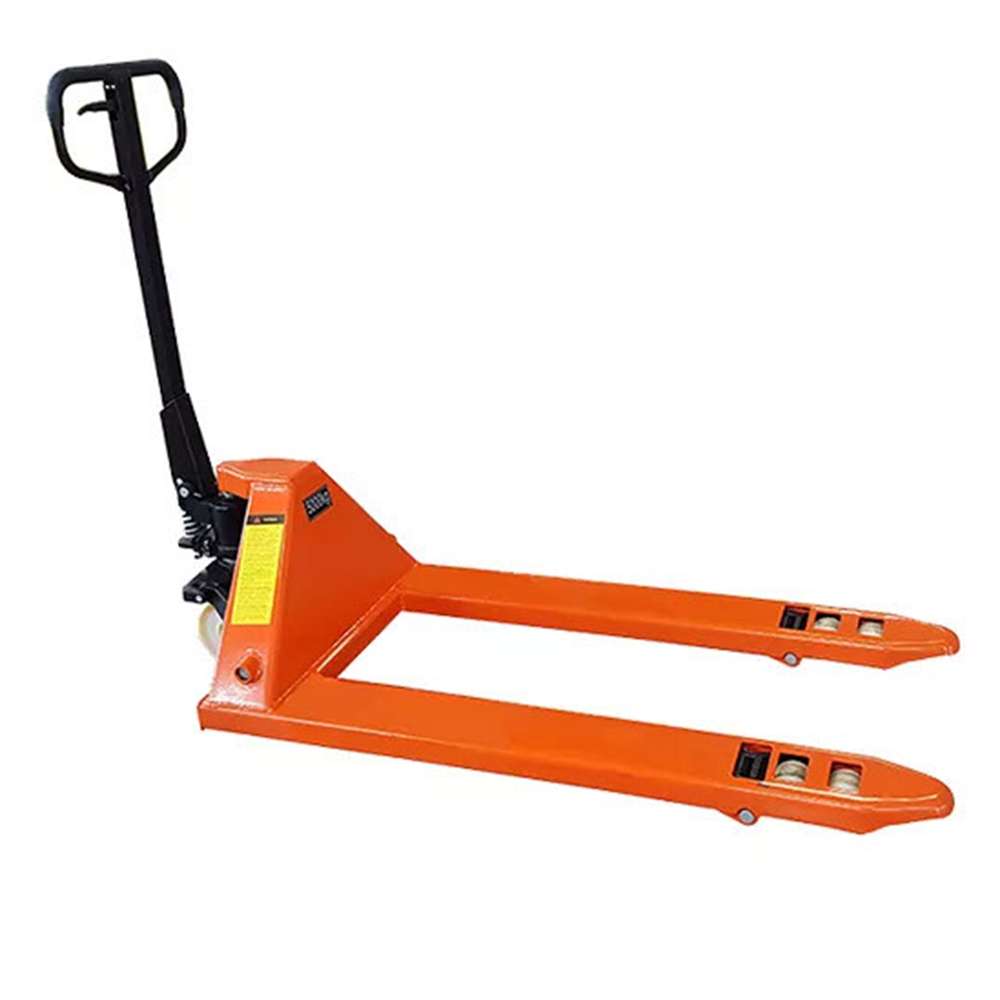

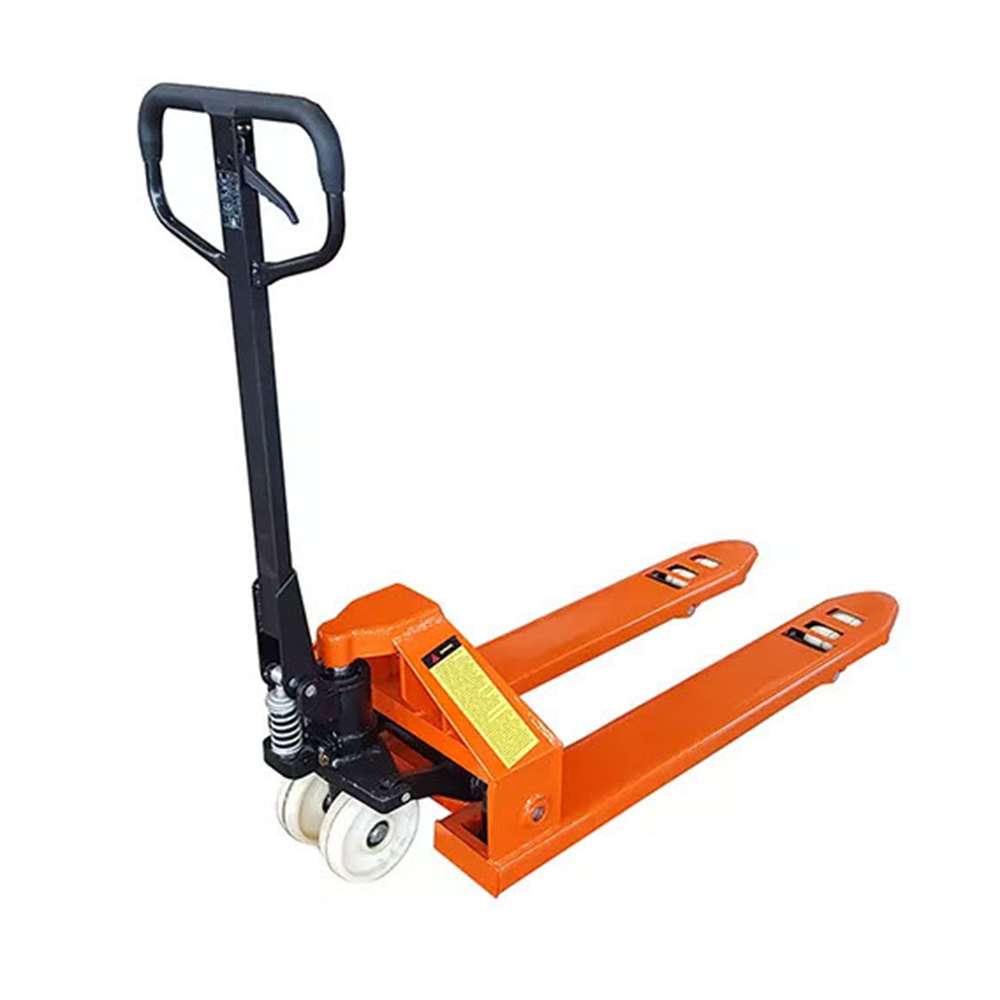

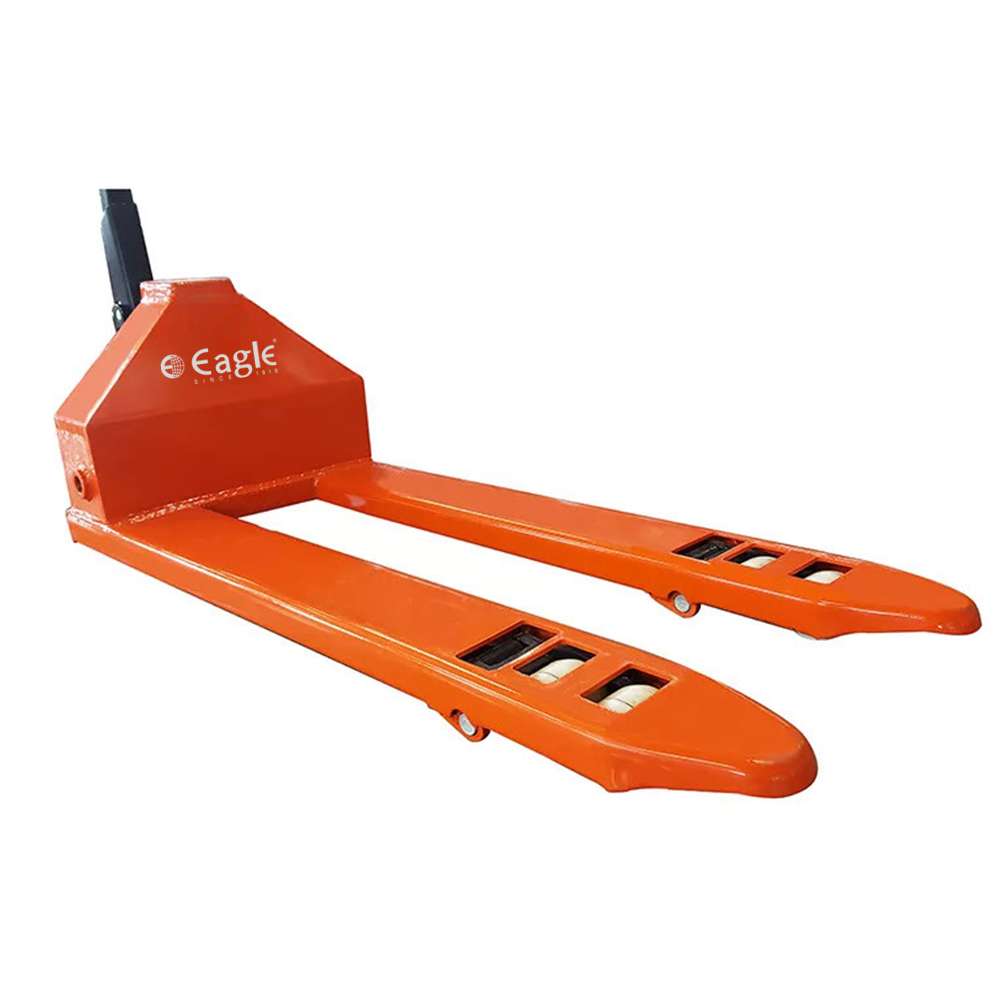

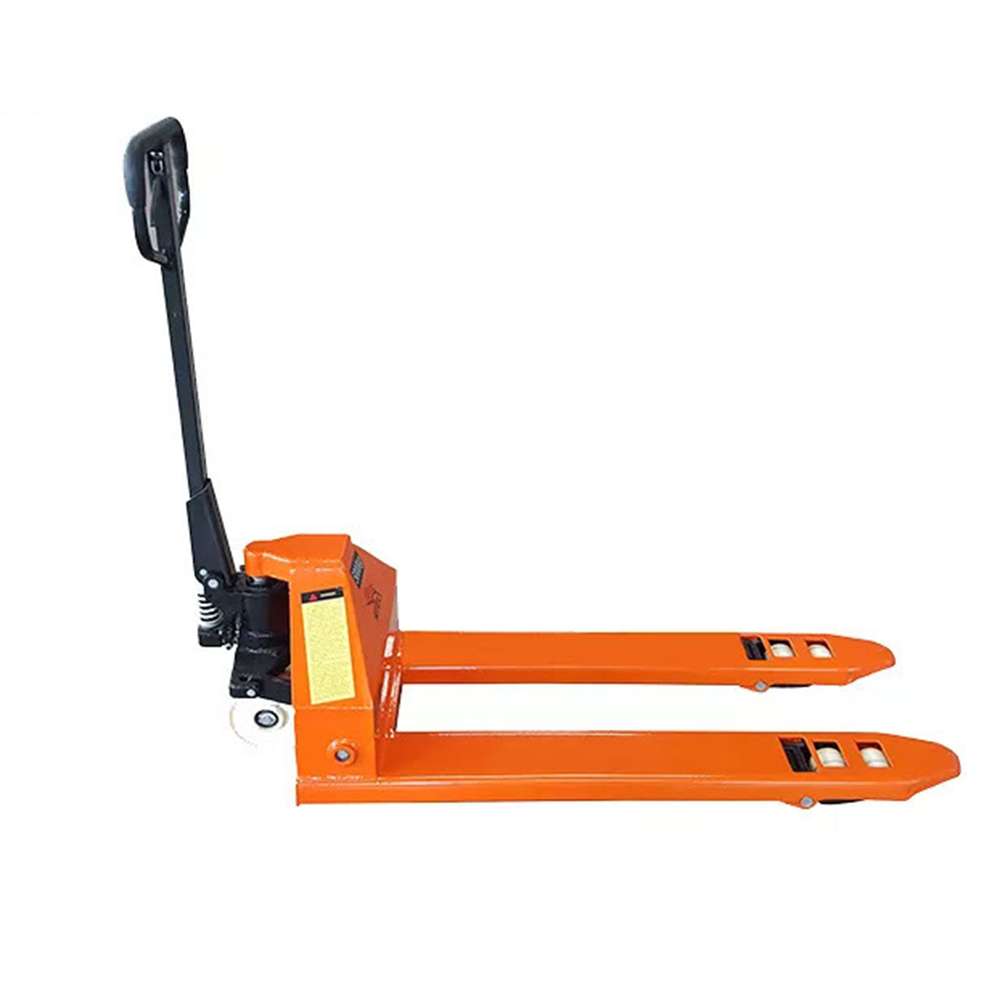

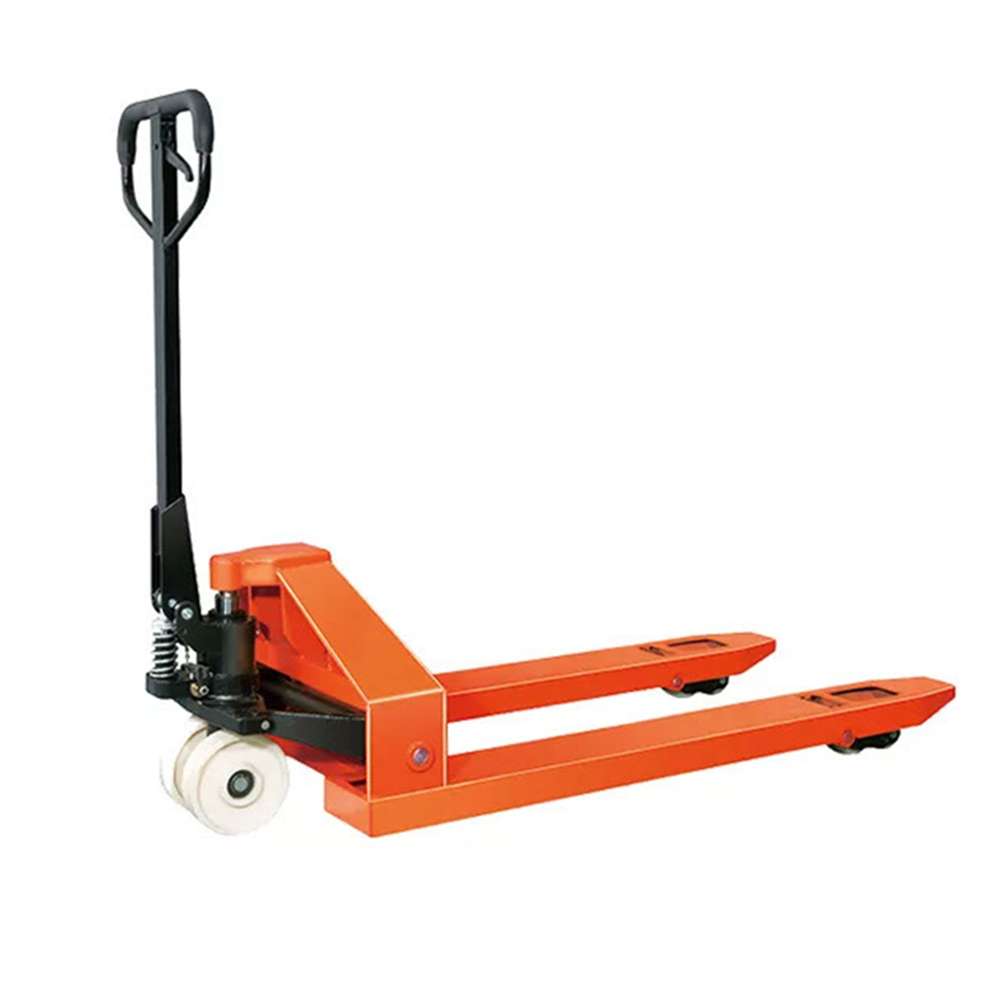

Eagle Hand Pallet Truck, Fork Size 1150 x 550 mm

Key specs: load capacity up to 3000 kg; fork size 1150 x 550 mm; wheel size 180 x 50 mm; minimum lifting height 80 mm; maximum lifting height 180 mm; turning radius 180°; color combination orange and black.

1) Position the forks under the pallet and center it. 2) Use the hydraulic pump to raise the pallet to the desired height. 3) Lock the handle in the upright position and push or pull slowly to move. 4) When you reach the destination, lower the pallet to the floor with the hydraulic lever and remove the forks.

Pallets sized to fit the 1150 x 550 mm fork span will be supported. This is typical for many standard industrial pallets, but always verify by measuring the pallet and ensuring the pallet’s stringers or deck fit within the fork length and weight limits.

The 180° turning radius allows tight turns in narrow aisles, while the 180 x 50 mm wheels provide stable travel and smooth rolling on level floors. This combination helps you maneuver loaded pallets more easily in confined spaces.

This model is part of the Eagle hand pallet truck family. Other Eagle models on Fepy.com offer different fork dimensions, capacities, and wheel configurations. See the following pages for alternatives: https://fepy.com/product/eagle-hand-pallet-truck-ept-55021, https://fepy.com/product/eagle-hand-pallet-truck-ept-55012, https://fepy.com/product/eagle-hand-pallet-truck-ept-55031.

Use it for moving and lifting heavy pallets in warehouses, distribution centers, and manufacturing floors—especially where space is limited and you need reliable manual handling for loads up to 3000 kg.

Regular checks should include inspecting forks for bends or cracks, confirming wheels rotate freely, lubricating moving joints as needed, checking hydraulic oil condition, and ensuring the handle mechanism operates smoothly. Do not use if any component shows obvious damage.

Best results are on smooth, level concrete or similar surfaces. In tight spaces, use the 180° turning capability to maneuver gradually. Avoid rough, uneven, or slippery surfaces to prevent instability.

This model uses an orange/black finish as shown. Other Eagle models may have different color schemes, but this page specifies the orange/black finish for this truck.

The truck supports lifting pallets up to 180 mm high and a minimum lift height of 80 mm. Do not exceed the 3000 kg rated capacity, keep loads centered, move slowly, and keep hands and feet clear of the forks while lifting or lowering.

Lower the forks to the floor when parked, store in a dry area away from moisture, and keep the truck out of extreme temperatures. Regularly inspect wheels and forks to ensure safe long-term use.
