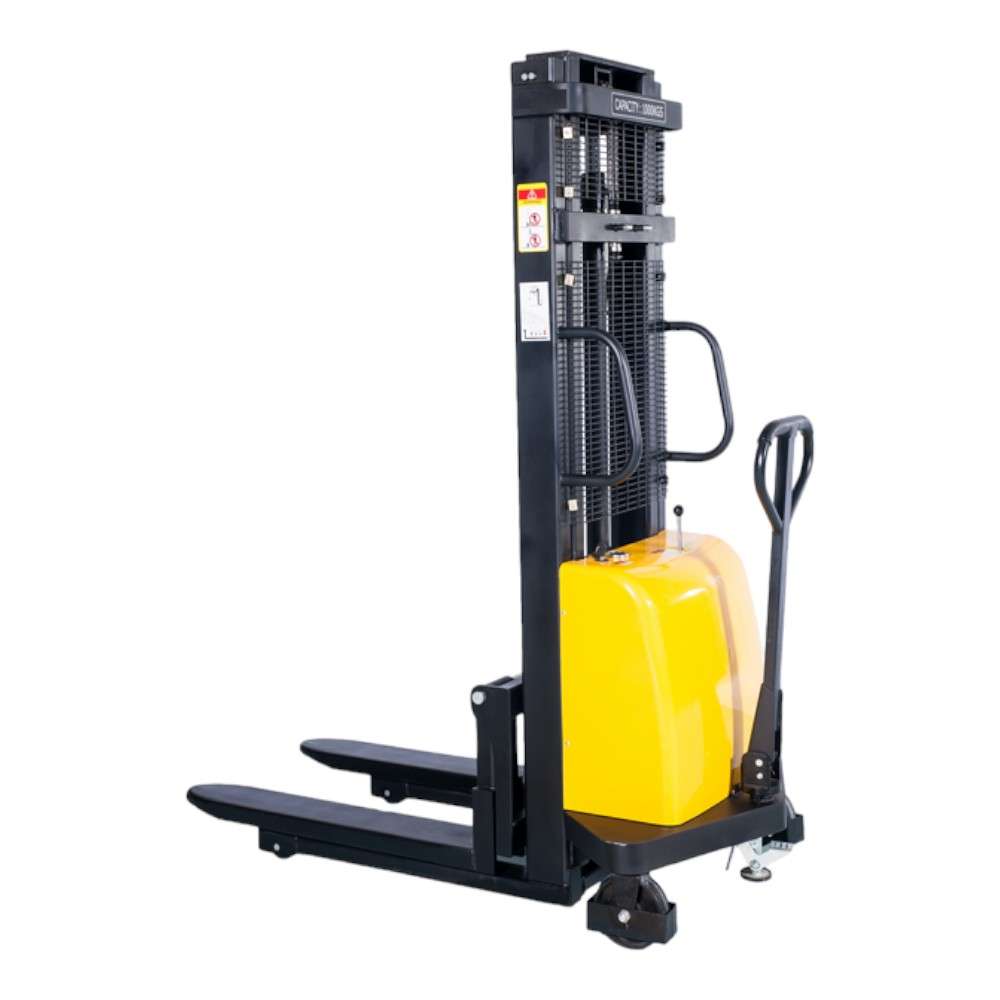

Eagle Semi Electric Stacker, Lifting Height 1600 mm, Capacity 1500Kg, Used for Lifting Pallets

Lifting capacity: 1500 kg; Maximum lift height: 1600 mm; Battery: 120 Ah; Motor: 12/1.6 V/kW; Turning radius: 1326 mm. It’s finished in yellow and black and supports semi-electric operation for smoother lifting and positioning.

In semi-electric stackers, lifting is powered to reduce operator effort, while steering and horizontal movement are typically manual. This balances ease of lift with maneuverability in tight spaces.

It’s well-suited for warehouses and loading docks where pallets need to be lifted to rack levels, transferred between locations, or positioned in narrow aisles, thanks to its compact design and lifting capability.

Power on the unit, ensure the forks are under the load and level, use the lifting controls to raise to the desired height, maneuver slowly with steering controls, and lower the load gently to rest. Always keep loads within the 1500 kg capacity and follow standard operator guidelines.

Ensure the operator is trained and uses appropriate PPE. Do not exceed the 1500 kg capacity. Regularly inspect the battery, hydraulics, forks, and wheels, and operate on suitable surfaces. Follow local workplace safety regulations for material handling equipment.

Keep the battery charged (as specified by the manufacturer), inspect connections and terminals, and perform routine checks on hydraulic cylinders and forks. Schedule periodic service checks per your facility maintenance plan to ensure optimal performance.

Its compact design and a turning radius of 1326 mm allow maneuvering in narrow aisles and confined areas, making it practical for warehouses with limited space.

The SPN-1516 offers a higher lift height (1600 mm) with the same general semi-electric operation and similar capacity, making it better for rack-level loading. The SPN-1510 may be preferable if you don’t need the extra lift height and want a potentially smaller footprint or lower cost. See related product page for exact specs: https://fepy.com/products/eagle-spn-1510-semi-electric-stacker

The SPN-1616 may offer different lift heights or dimensions suitable for other warehouse layouts. If you need a similar capacity but different lift height or footprint, compare the two models’ lifted height, turning radius, and overall dimensions. See the related product page for SPN-1616 here: https://fepy.com/products/eagle-spn-1616-semi-electric-stacker

Yes, you can explore other stackers and pallet handling equipment on Fepy.com to find compatible tools and attachments. For a manual alternative that may suit smaller operations, you can review the Manual Pallet Stacker options at https://fepy.com/products/manual-pallet-stacker-1500kg

Warehousing operations that require frequent pallet lifting to rack heights, order assembly in tight aisles, or cross-docking in compact spaces will benefit from the SPN-1516’s lifting capacity, 1600 mm lift height, and tight turning radius.
