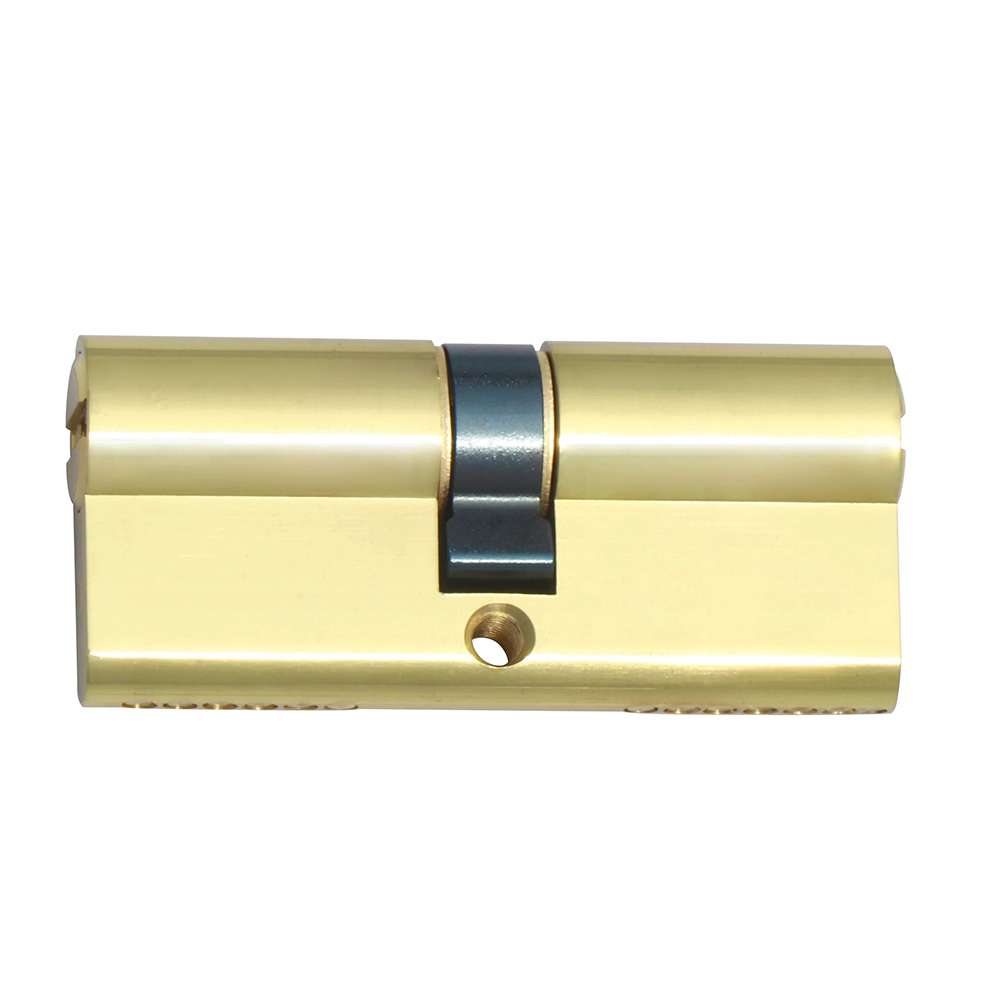

Yale 70mm Door Lock Cylinder

The overall length of the Yale 70mm cylinder is 70mm, with a case length of 35mm on both sides. This design allows it to fit standard Euro profile mortise locks effectively.

The cylinder body and keys are made of brass, providing durability and resistance to wear. The finish options include satin nickel and polished brass, which add aesthetic appeal while maintaining functionality.

The Yale 70mm cylinder can be incorporated into a master keying system, allowing for multiple levels of key access. It supports up to four levels of master keying, making it ideal for complex security needs in larger facilities.

Typically, the Yale 70mm Door Lock Cylinder is supplied with three keys. Additional keys, including master and control keys, must be specified separately when ordering.

This cylinder features a unique dimple key design that enhances security by making unauthorized duplication more difficult. It conforms to EN 1303:2005 standards, ensuring it meets high-security requirements.

It is suitable for both wooden and steel doors, making it versatile for various installation environments. Its robust construction ensures reliable performance across different materials.

There are several variants available, including single cylinders, double cylinders, and privacy cylinders. Each variant is designed to meet specific locking needs while maintaining the same high-security standards.
