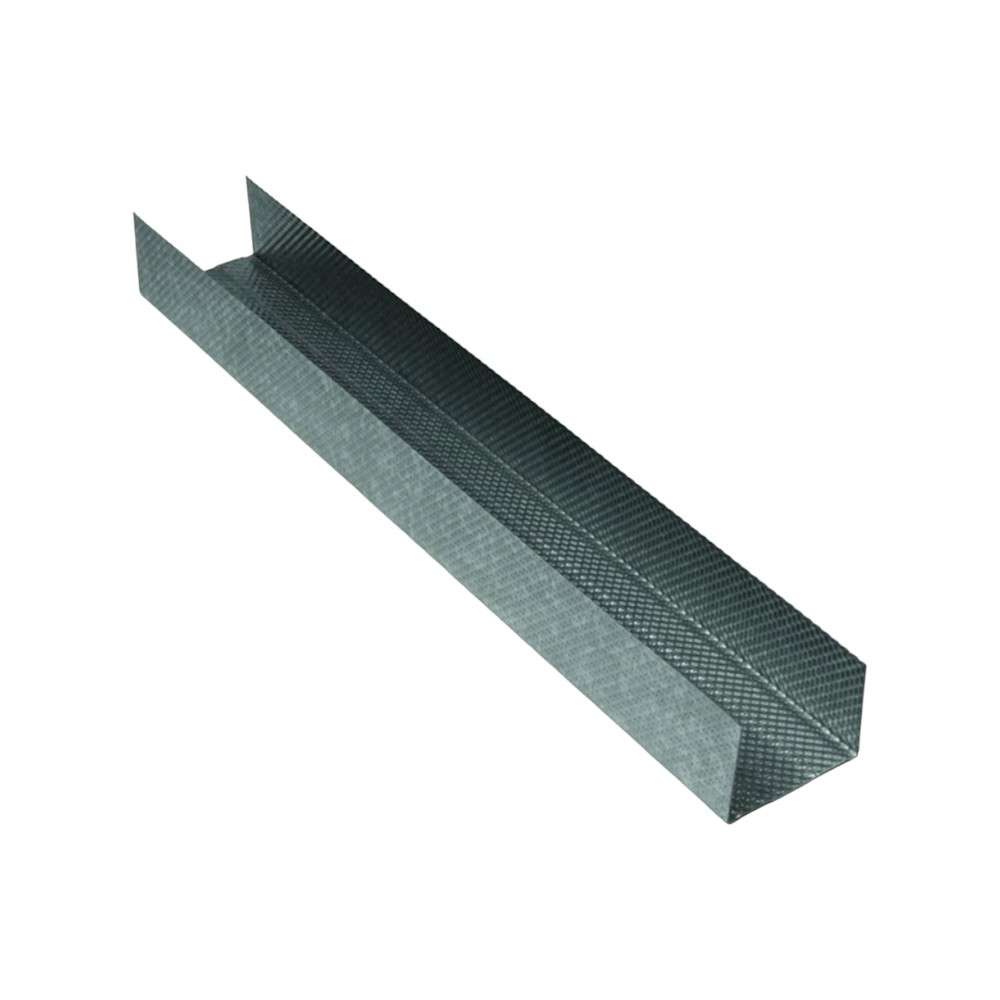

Gyproc Gypframe Extra Deep Channel 94DC50 3000mm Heavy-Duty Track for Partitions

Length: 3000 mm. Depth: 50 mm (extra deep). Material: galvanised steel with perforations. Features pre-punched mounting holes for screws. Designed for high-strength insulation and plasterboard applications in domestic and commercial settings.

The extra-deep 50mm profile creates a larger cavity for insulation and improves the structural rigidity of the frame. This can enhance overall sound attenuation and reduce sag when supporting plasterboard and insulation materials.

It's ideal when joining two ceiling joists in drop ceilings or suspended ceiling projects where you need a strong, deep channel to support insulation and plasterboard. Suitable for both domestic and commercial ceiling and partition applications.

1) Measure and cut the channel to length as needed. 2) Align with ceiling joists and mark through the pre-punched mounting holes. 3) Fix the channel using appropriate screws for your joist material (timber or metal). 4) Ensure the channel is level and securely fastened before attaching plasterboard or insulation.

The channel is galvanised steel, offering corrosion resistance. Wear cut-resistant gloves when handling sharp edges, deburr any cut ends, and follow local building codes for framing and insulation installations. Ensure proper load handling and spacing per project requirements.

The 60 DC variant provides an even deeper profile for greater rigidity, while the 40 DC is shallower and lighter. The 50 DC depth sits between them, offering substantial strength with a moderate cavity for insulation. For exact product pages: 60 DC option: https://fepy.com/product/saint-gobain-gyproc-gypframe-3000mm-94-dc-60-deep-channel and 40 DC option: https://fepy.com/product/saint-gobain-gyproc-gypframe-3000mm-94-dc-40-deep-channel

Use it in ceiling joist assemblies where robust support is needed for insulation, in soundproofing projects, and in installations requiring a strong framing channel to reduce movement and give a solid backing for plasterboard.

Being galvanised steel, the channel can be reused if undamaged and can be recycled at end-of-life. Proper removal and disposal should follow local recycling guidelines.

Use galvanised screws appropriate for the joist material (timber screws for timber joists, self-drilling screws for metal frames). The pre-punched holes simplify alignment and fastening, maintaining secure, consistent spacing.

Yes. Gyproc Gypframe channels are designed to integrate with standard Gyproc framing components and plasterboard systems, providing a cohesive solution for ceiling and partition installations.
