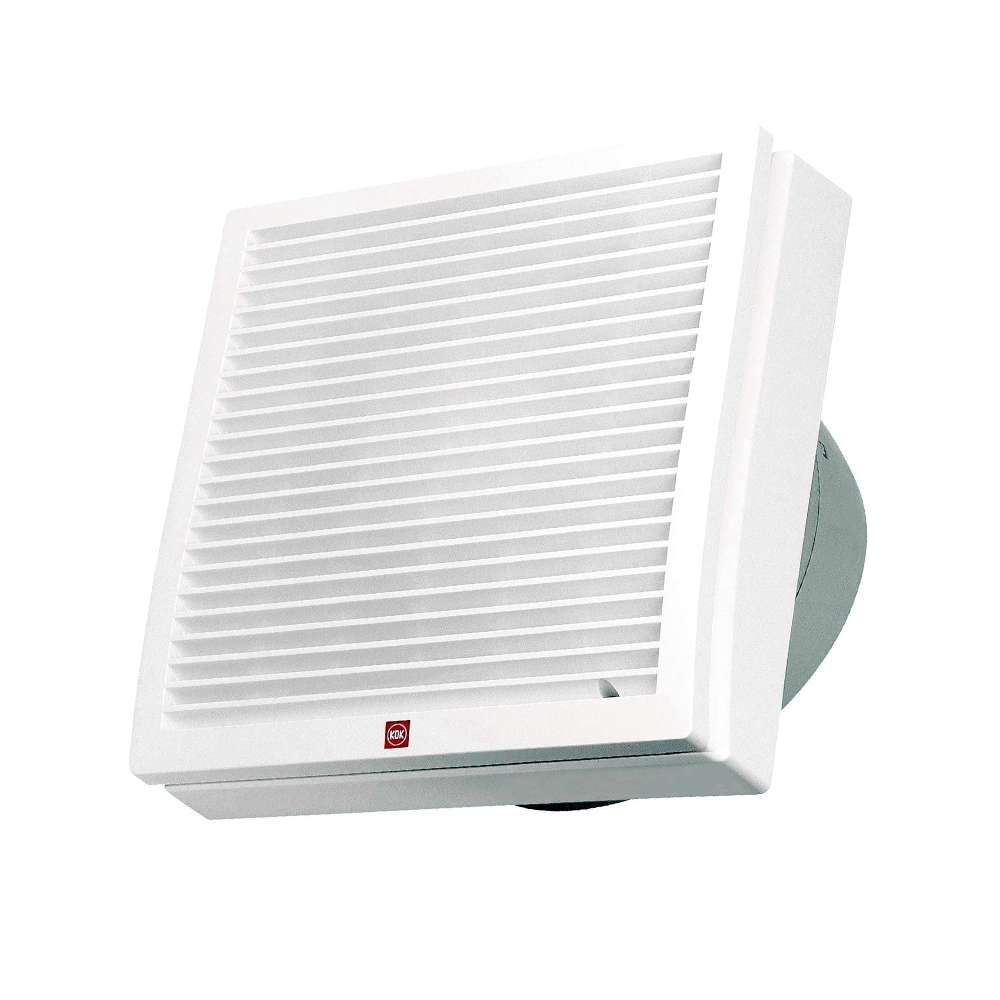

KDK Window Mount Exhaust Fan 6" Pull Cord Shutter 129 CFM 8.8W White 15WUD
FREE Returns
Upgrade to Fepy Pro and get up to 10% off all orders.
- Window or wall mount, pull cord shutter
- 150 mm blade, opening 186 to 188 mm
- 220 m3/h, 129 CFM at 230V 50Hz
- 8.8W power, 35 dB(A) noise level
- HP condenser motor with thermal cut-off
- Weight 0.9 kg, colour white
Key Features

- 100% free subscription
- Easy Registration
Features & Benefits
KDK Window Mount Exhaust Fan 6" Pull Cord Shutter 129 CFM 8.8W White 15WUD
The KDK 15WUD is a 6 inch window mount ventilating fan from the Cord-operated Shutter Series. It extracts 220 m3/h (129 CFM) at 230V 50Hz while drawing only 8.8W, and runs at a quiet 35 dB(A). A pull cord opens and closes the back draft shutter, and an HP condenser motor with thermal cut-off and a long life bearing keeps it running reliably in daily use.
• HP condenser motor with thermal cut-off protects the motor against overheating
• Well lubricated bearing for long, quiet operation (rated life up to 40,000 hours)
• Advanced propeller blade with leading edge and air foil chip for smooth airflow and low noise
• Back draft shutter opened and closed by pull cord, held on a metallic shutter axis for strength in strong wind
• Blade detaches by loosening the spinner for easy cleaning
• Low power consumption and IPX4 splash protection on the outside
Brand
KDK
Model
15WUD
Series
Window mount, cord-operated shutter
Fan size
6 inch, 150 mm blade diameter
Installation space
Ø186 to Ø188 mm
Air volume
220 m3/h, 129 CFM at 230V 50Hz; 230 m3/h, 135 CFM at 240V 50Hz
Power consumption
8.8W at 230V 50Hz; 9.5W at 240V 50Hz
Noise level
35 dB(A) at 230V; 36 dB(A) at 240V
Voltage / frequency
220 to 240V, 50Hz
Motor
HP condenser motor with thermal cut-off
Shutter
Pull cord operated, metallic shutter axis
Overall size
210 mm outer diameter, 97 mm depth
Weight
0.9 kg
Colour
White
How to Use
Fix the fan in a round opening of the stated installation space in the window glass or wall using the supplied fixings, with the shutter facing outside. Connect to a 220 to 240V 50Hz supply through a switch or isolator installed by a qualified electrician. Pull the cord to open the shutter and run the fan; pull again to close the shutter when the fan is off. Isolate the power and loosen the spinner to remove the blade for cleaning every few months.
Applications
Extracting moisture, steam and odours from bathrooms, toilets, kitchens, pantries, laundry rooms, offices and store rooms in villas, apartments, staff accommodation and commercial buildings.
Key Specifications
Custom Stock Status
In Stock
Weight
0.90 kg
Brands
KDK
Color
White
Size
6"
Quantity Unit
PCS
Best Seller
No
Unit
Individual
Model No
15WUD
Item Type
Exhaust Fan
Voltage (V, Hz, Ph)
220v 50hz, 230v 50hz
Air Flow Volume
124 CFM
Power Consumption
8.1 W
Dimension
210 x 210 x 97 mm
Application
Extracting moisture, steam and odours
Special Features
Compact size; energy-saving ventilation
Country Of Origin
Japan
Products Ranking
#3 in Exhaust Fans
Frequently Asked Questions
What is the KDK 6" Exhaust Fan and what is it used for?
The KDK 6" Exhaust Fan is a compact, wall‑mount ventilation fan designed to move air in small spaces. It helps reduce humidity and odors in rooms like bathrooms, kitchens, and utility spaces, while prioritizing quiet operation and energy efficiency.
What are the main specifications and features of this 6" model?
Key specs include a 6-inch fan size, a durable plastic body, an efficient motor for lower energy use, low vibration and quiet operation, and a quick‑fit design to simplify installation and maintenance. It’s intended for bathrooms, kitchens, and utility rooms.
Which rooms are best suited for this fan?
It’s ideal for bathrooms, kitchens, and utility rooms or any confined space where you want to improve air circulation, remove moisture, and eliminate odors.
How do I install the KDK 6" Exhaust Fan?
Installation is designed to be quick and straightforward. Start by turning off power, remove the front cover to access mounting points, secure the housing to the wall, connect the electrical wiring, attach any ducting to vent air outside, reattach the cover, and test the unit to ensure proper operation.
What kind of venting or ducting should I plan for?
Plan to vent the air outside through an appropriate duct run. Use the shortest practical duct length with a fewest possible elbows to minimize resistance and noise, and seal joints to prevent leaks.
How loud is this fan, and is it energy efficient?
The model emphasizes quiet operation with low vibration, making it suitable for spaces where noise is a concern. Its efficient motor helps reduce energy costs compared to older or less efficient exhaust fans.
How should I maintain and clean the fan?
Periodically remove the grille and clean accumulated dust from the grill and housing. Avoid getting water on the motor, and reassemble after cleaning to maintain optimal airflow and performance.
Are there safety or electrical considerations I should follow?
Yes. Always follow local electrical codes when wiring, ensure the power is off before servicing, and install in a location protected from direct contact with water. If you’re unsure about electrical work, consult a professional.
What are some similar 6" exhaust fans available on Fepy.com for comparison?
If you’re exploring alternatives on Fepy, you can compare with these similar options: 1) Broan 6-Inch Bathroom Exhaust Fan — https://fepy.com/product/broan-6-inch-bathroom-exhaust-fan 2) Panasonic WhisperCeiling 6-Inch Exhaust Fan — https://fepy.com/product/panasonic-whisper-ceiling-6-inch-exhaust-fan 3) Delta 6-Inch Wall-Mount Exhaust Fan — https://fepy.com/product/delta-6-inch-wall-mount-exhaust-fan
How should I decide between this KDK model and the listed alternatives on Fepy?
Consider factors like noise level, energy efficiency, price, and ease of installation. If you need a brand you’re already using, or if you prioritize the lowest possible sound, compare the spec sheets and user reviews for each option to determine the best fit for your space.
Can this fan be installed in various orientations or only on walls?
This model is designed for wall mounting in typical configurations. Ensure your wall space and venting arrangement align with the recommended installation guidelines for best performance.
What is the expected lifespan and build quality of the KDK 6" Exhaust Fan?
With a durable plastic body and an efficient motor, the unit is built for long service life in standard bathroom/utility environments. Regular cleaning and proper installation help extend its lifespan.
Frequently Asked Questions
The KDK 6" Exhaust Fan is a compact, wall‑mount ventilation fan designed to move air in small spaces. It helps reduce humidity and odors in rooms like bathrooms, kitchens, and utility spaces, while prioritizing quiet operation and energy efficiency.
Key specs include a 6-inch fan size, a durable plastic body, an efficient motor for lower energy use, low vibration and quiet operation, and a quick‑fit design to simplify installation and maintenance. It’s intended for bathrooms, kitchens, and utility rooms.
It’s ideal for bathrooms, kitchens, and utility rooms or any confined space where you want to improve air circulation, remove moisture, and eliminate odors.
Installation is designed to be quick and straightforward. Start by turning off power, remove the front cover to access mounting points, secure the housing to the wall, connect the electrical wiring, attach any ducting to vent air outside, reattach the cover, and test the unit to ensure proper operation.
Plan to vent the air outside through an appropriate duct run. Use the shortest practical duct length with a fewest possible elbows to minimize resistance and noise, and seal joints to prevent leaks.
The model emphasizes quiet operation with low vibration, making it suitable for spaces where noise is a concern. Its efficient motor helps reduce energy costs compared to older or less efficient exhaust fans.
Periodically remove the grille and clean accumulated dust from the grill and housing. Avoid getting water on the motor, and reassemble after cleaning to maintain optimal airflow and performance.
Yes. Always follow local electrical codes when wiring, ensure the power is off before servicing, and install in a location protected from direct contact with water. If you’re unsure about electrical work, consult a professional.
If you’re exploring alternatives on Fepy, you can compare with these similar options: 1) Broan 6-Inch Bathroom Exhaust Fan — https://fepy.com/product/broan-6-inch-bathroom-exhaust-fan 2) Panasonic WhisperCeiling 6-Inch Exhaust Fan — https://fepy.com/product/panasonic-whisper-ceiling-6-inch-exhaust-fan 3) Delta 6-Inch Wall-Mount Exhaust Fan — https://fepy.com/product/delta-6-inch-wall-mount-exhaust-fan
Consider factors like noise level, energy efficiency, price, and ease of installation. If you need a brand you’re already using, or if you prioritize the lowest possible sound, compare the spec sheets and user reviews for each option to determine the best fit for your space.
This model is designed for wall mounting in typical configurations. Ensure your wall space and venting arrangement align with the recommended installation guidelines for best performance.
With a durable plastic body and an efficient motor, the unit is built for long service life in standard bathroom/utility environments. Regular cleaning and proper installation help extend its lifespan.
