KDK Window Mount Exhaust Fan 8" Pull Cord Shutter 224 CFM 17.9W White 20WUD

KDK Window Mount Exhaust Fan 8" Pull Cord Shutter 224 CFM 17.9W White 20WUD

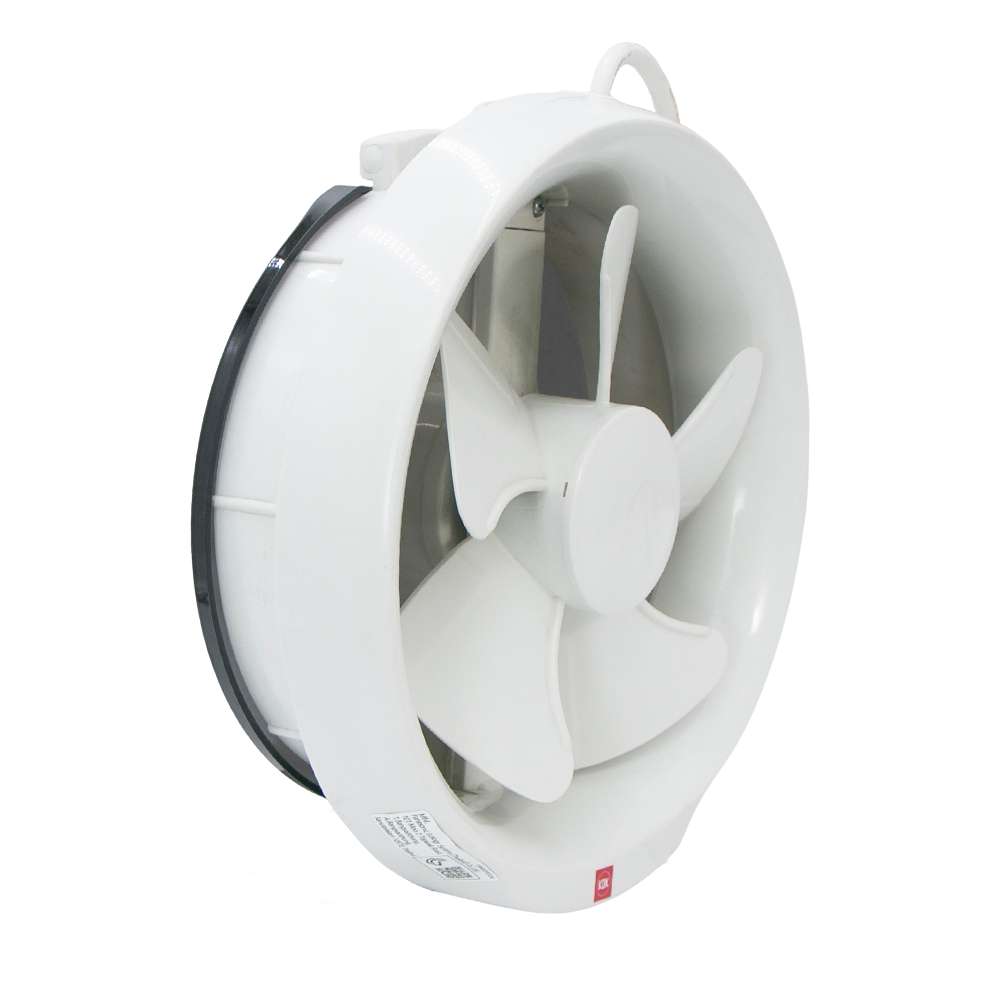

The KDK 20WUD is an 8 inch window mount ventilating fan from the Cord-operated Shutter Series. It extracts 380 m3/h (224 CFM) at 230V 50Hz with 17.9W consumption and a low 34 dB(A) noise level. A pull cord operates the back draft shutter, and the HP condenser motor with thermal cut-off and long life bearing suits larger bathrooms, kitchens and utility rooms.

• HP condenser motor with thermal cut-off protects the motor against overheating

• Well lubricated bearing for long, quiet operation (rated life up to 40,000 hours)

• Advanced propeller blade with leading edge and air foil chip for smooth airflow and low noise

• Back draft shutter opened and closed by pull cord, held on a metallic shutter axis for strength in strong wind

• Blade detaches by loosening the spinner for easy cleaning

• Low power consumption and IPX4 splash protection on the outside

Brand

KDK

Model

20WUD

Series

Window mount, cord-operated shutter

Fan size

8 inch, 200 mm blade diameter

Installation space

Ø247 to Ø250 mm

Air volume

380 m3/h, 224 CFM at 230V 50Hz; 400 m3/h, 235 CFM at 240V 50Hz

Power consumption

17.9W at 230V 50Hz; 19.5W at 240V 50Hz

Noise level

34 dB(A) at 230V; 36 dB(A) at 240V

Voltage / frequency

220 to 240V, 50Hz

Motor

HP condenser motor with thermal cut-off

Shutter

Pull cord operated, metallic shutter axis

Overall size

271 mm outer diameter, 98 mm depth

Weight

1.1 kg

Colour

White

How to Use

Fix the fan in a round opening of the stated installation space in the window glass or wall using the supplied fixings, with the shutter facing outside. Connect to a 220 to 240V 50Hz supply through a switch or isolator installed by a qualified electrician. Pull the cord to open the shutter and run the fan; pull again to close the shutter when the fan is off. Isolate the power and loosen the spinner to remove the blade for cleaning every few months.

Applications

Extracting moisture, steam and odours from bathrooms, toilets, kitchens, pantries, laundry rooms, offices and store rooms in villas, apartments, staff accommodation and commercial buildings.
