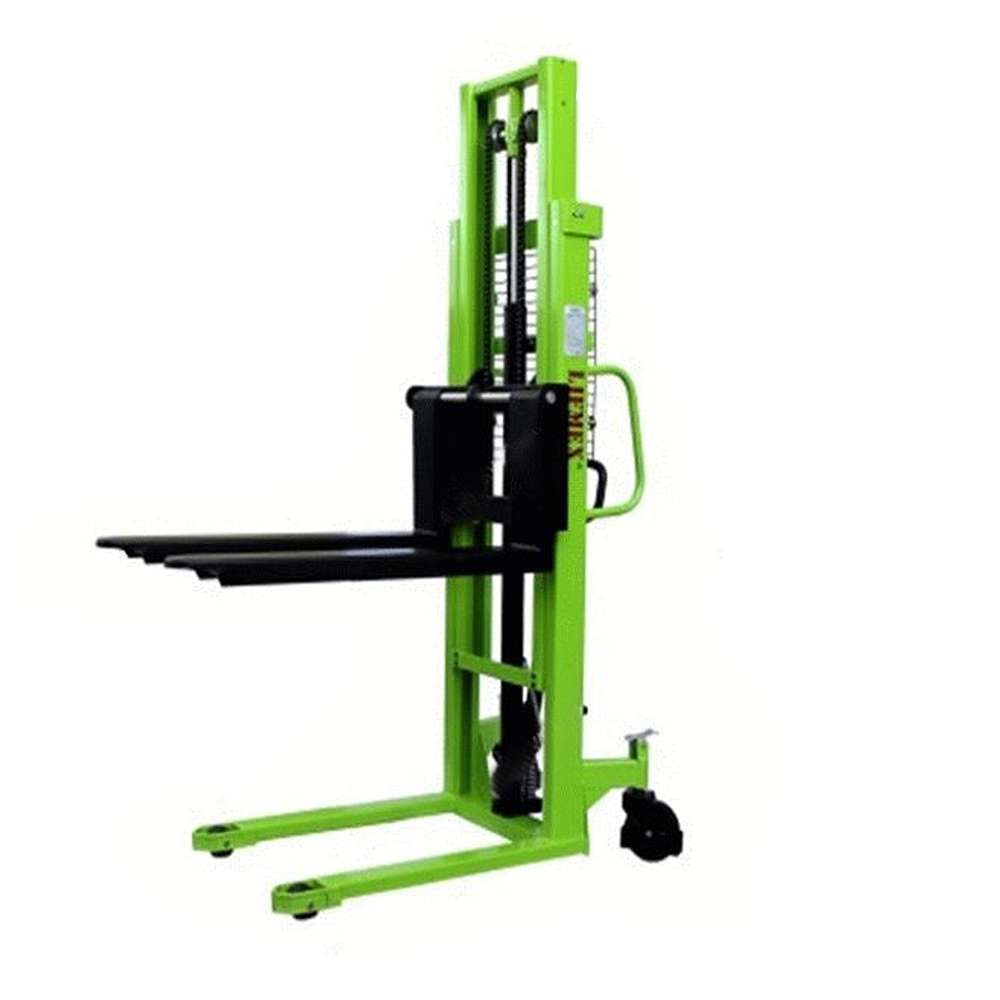

Lifmex 1 Ton (1.6Mtr) Hydraulic Hand Stacker, LHS1T

Capacity: 1,000 kg; Lift height: 0.6 m to 1.6 m; Platform: large steel-mesh; Handle: oversized ergonomic design; Controls: three-position lift and tilt; Safety: overload safety valve and pressure relief system; Construction: durable steel, compact and portable design.

Ideal for warehouses, factories, and order-picking environments where pallets or heavy items need to be raised, moved, stacked or destacked in tight spaces. Its compact design helps maneuver in narrow aisles while its 1-ton capacity covers a wide range of standard pallet loads.

1) Inspect the unit and ensure you are within the rated load. 2) Slide the forks under the pallet or load and lock the wheels if applicable. 3) Use the pump handle to raise to the desired height with the three-position lift control. 4) If tilting is needed, use the tilt control to adjust load orientation. 5) Move the stacker carefully to the destination, then slowly lower the load using the lowering control and set the load down steadily.

It includes an overload safety valve to prevent lifting beyond capacity, a pressure relief system, an anti-skid lock mechanism to prevent unwanted movement, and an oversized ergonomic handle plus sturdy steel construction for stability and safer handling.

Regularly inspect for hydraulic leaks, check the hydraulic oil level and top up with the recommended fluid if needed, lubricate moving joints, inspect wheels and rollers for wear, keep the unit clean and dry, and store it in a dry area to prevent corrosion.

First, verify that the load is within capacity and the tilt/lift controls are functioning. Check for hydraulic oil level and any visible leaks. Ensure the wheels and wheels locks are properly engaged if equipped. If issues persist, stop use and contact support for service guidance.

Compared with other 1-ton hydraulic hand stackers on Fepy, the Lifmex LHS1T emphasizes a longer lift height (up to 1.6 m), a robust steel construction, and a three-position lift/tilt control with an overload safety valve for added safety. For a direct side-by-side, you can review other 1-ton stackers like Lifmex 1T variants or other brands on Fepy to evaluate differences in height range, control features, and platform size. Example comparison links: Lifmex 1 Ton vs Lifmex 0.8 Ton and Liftech 1 Ton hand stackers at https://fepy.com/product/lifmex-0-8-ton-hydraulic-hand-stacker-lhs08t and https://fepy.com/product/liftech-1-ton-hydraulic-hand-stacker-lhs1t (verify live pages on Fepy).

The stacker is designed for standard pallet loads and similar heavy items. While it can handle various shapes that fit on the steel-mesh platform, ensure the dimensions fit within the fork width and height range and that the load is stable and balanced before lifting.

Common workflows include lifting pallets from dock height to shelving or racking, transporting loads across a warehouse floor, stacking pallets onto racks within the 0.6–1.6 m height range, and destacking items from higher positions down to the floor for sorting or transfer.

If you’re not satisfied, you can review the return policy for eligible items on Fepy and initiate a return within the specified window, following the conditions for unused or original packaging items. Be sure to preserve all components and packaging during return.

Store the stacker in a dry, clean area away from moisture and corrosive vapors. Keep the hydraulic system clean and covered, and ensure the unit is fully lowered when stored to reduce height and save space. When transporting, use the ergonomic handle and maintain control to prevent sudden movements.
