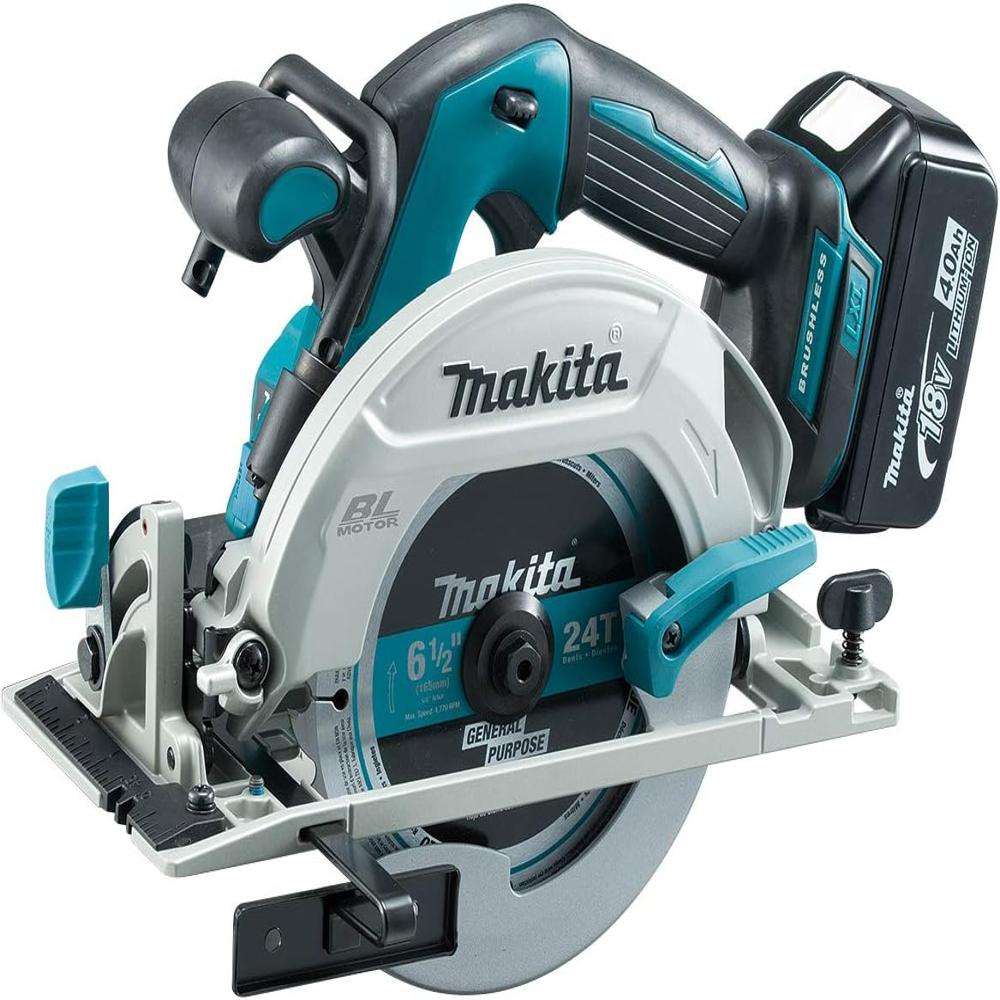

Makita DHS680RFJ 18V Cordless Circular Saw 165mm 3Ah Brushless Motor

165 mm blade diameter; cordless 18V lithium-ion; brushless motor; cutting depth up to 57 mm; bevel capacity up to 45°; tool-less blade change; built-in LED light; sawdust blower; dust extraction port; compatible with Makita 18V LXT batteries and chargers (3Ah battery included in this model).

The brushless motor delivers higher efficiency, longer tool life, and better battery runtime because there are fewer moving parts and less energy is wasted as heat. You get smoother starts, consistent power under load, and extended work time on a single 3Ah battery compared with brushed motors.

Adjust the cutting depth by raising or lowering the foot plate until the blade just clears your workpiece at the desired depth (up to 57 mm). Change the bevel by loosening the bevel lock, rotating the mechanism to the desired angle up to 45°, and re-locking. The LED continues to illuminate the cut line for accuracy.

The DHS680RFJ features a tool-less bladeChange system. Simply release the blade clamp, lift the old blade away, align a new 165 mm blade with the arbor, and re-secure the clamp. Always ensure the battery is removed before blade changes for safety.

Attach a compatible dust extraction hose to the dust port to collect debris during cuts. The built-in dust blower helps blow away sawdust from the cut line, improving visibility and cut accuracy, especially when working with fine dust or in dim environments.

Yes. The DHS680RFJ is part of Makita’s 18V LXT system, so it works with other Makita 18V batteries and compatible chargers. This lets you swap batteries across multiple tools in the Makita lineup for better on-site flexibility.

This saw is well suited for framing, cabinetry, trim work, and general wooden construction tasks. It handles cutting framing lumber, plywood sheets, MDF, and other common woodworking materials with precise depth and bevel control, all without a cord getting in the way.

Compared to the Makita DHS680Z (body-only) and the DHS681Z, the DHS680RFJ offers a complete cordless setup with an included 3Ah battery and bevel/depth capabilities designed for versatility. See: DHS680Z (https://fepy.com/product/makita-dhs680z-18v-cordless-circular-saw) and DHS681Z (https://fepy.com/product/makita-dhs681z-18v-cordless-circular-saw) for side-by-side features and pricing on Fepy.

If you need true cordless mobility with solid cutting depth, bevel versatility, a robust 165mm blade, and a reliable 18V Li-ion platform, the DHS680RFJ offers strong value with a brushless motor, built-in lighting, dust management, and tool-less blade changes. Its 3Ah battery provides extended runtime for typical demanding tasks without frequent recharges.

Wear eye and hearing protection, keep hands away from the blade, secure the workpiece, and ensure the blade guard is functioning properly before each cut. Always disconnect the battery when changing blades or performing maintenance, use proper stance and kickback awareness, and follow the tool’s user manual for safe operation.

Keep the blade sharp and clean, attach the dust extraction hose for a cleaner work area, position the workpiece securely, and use the LED light to illuminate the cut line in dim environments. Check that the battery is adequately charged and that you’ve set the correct depth and bevel before making each cut.
