Matsuda E100 Floor Standing Eye Washer, GI
FREE Returns
Sign in & get 10% off your first order. Use code WELCOME10.
Upgrade to Fepy Pro and get up to 10% off all orders.
Delivery by Friday, 22 May
- Free-standing eye/face wash with GI construction.
- Comprehensive water flow control for impurity removal.
- Easy-to-operate with flag handle or foot treadle.
- Durable ABS plastic bowl and galvanized steel pipe.
Key Features
Features & Benefits

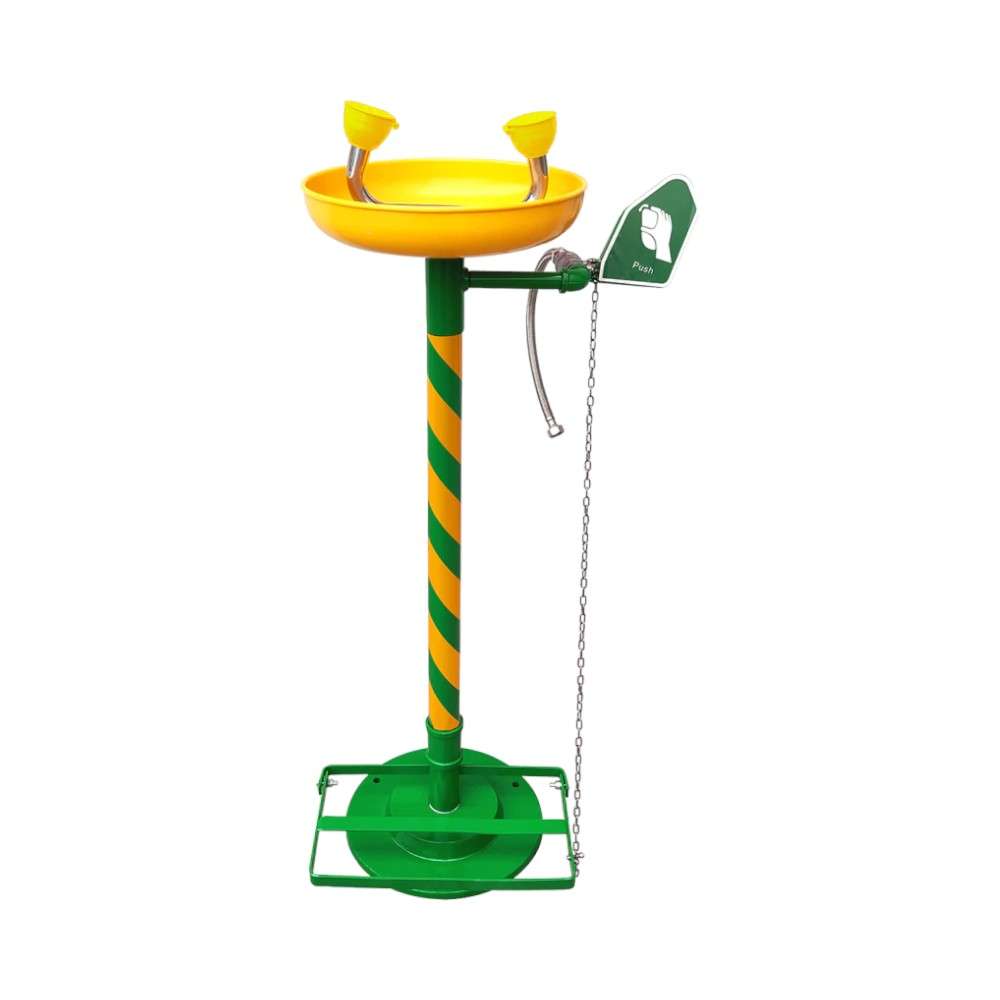

The E100 Eye Washer is a free-standing, pedestal mounted eye/face wash with a GI construction. It provides a comprehensive solution for emergency eye and face rinsing. Equipped with two spray heads, each with a dust cover, internal flow control and filter, the unit efficiently removes impurities from the water flow. Choose to activate water flow with the convenient flag handle or foot treadle. The sturdy 11-1/2" ABS plastic bowl ensures durability, while the corrosion-resistant yellow polyethylene covers on the galvanized steel piping offer added protection.
Designed for efficiency and safety, the E100 Eye Washer features a 1/2" Stainless steel stay-open ball valve, which can be easily activated with either the flag handle or foot treadle. The unit will remain in operation until the valve is returned to its closed position, ensuring thorough rinsing in emergency situations. With a 1/2" NPT male inlet and 1-1/4"NPT female outlet, the unit is compatible with most plumbing systems. It can withstand a working pressure of 0.2-0.8Mpa flow pressure, with a maximum static pressure of 0.9Mpa.
The E100 Eye Washer is designed with quality and convenience in mind. Its valve and spray head assembly is factory assembled, making installation and maintenance a hassle-free experience. The galvanized steel piping is furnished with yellow polyethylene covers for added corrosion resistance, ensuring long-lasting performance. The unit is compatible with standard plumbing systems, making it a versatile solution for various industrial settings.
Keep your workplace safe and prepared with the E100 Eye Washer. With its efficient design, comprehensive water flow control, and durable construction, it provides peace of mind in emergency situations. Its easy-to-operate features, including the flag handle and foot treadle, allow for quick and convenient use. Don't compromise on safety - choose the E100 Eye Washer for your industrial setting.
Key Specifications
Custom Stock Status
Available On Request
Weight
10.00 kg
Brands
Mastuda
Quantity Unit
BOX
Product Color
Green,Yellow
Pack
1Piece/Box
Item Type
Eyewash Stations & Showers
Standards
EN 15154-1:2006 EN 15154-2:2006
Material
Galvanized Steel
Country Of Origin
China
Flow Rate
11L/min
Included Components
Supply 1/2", Waste 1-1/4",Spray Head Assembly Two spray heads, each head has a dust cover, internal flow control, and filter to remove impurities from water flow.Bowl 11-1/2" diameter ABS plastic bowl,Valve 1/2" stainless steel stay-open ball valve.
Package Dimension
91 X 41 X 30CM
Usage
Laboratories,Manufacturing facilities,Healthcare facilities,Chemical plants, Cleanroom environments,Construction sites,Industrial facilities,Emergency response vehicles,Research facilities
Frequently Asked Questions
What is the Matsuda E100 Floor Standing Eye Washer and what does it do?
The E100 is a free-standing eye/face wash designed for emergency rinsing in industrial settings. It features GI construction, two spray heads with dust covers and internal flow control with filters, and a large 11-1/2 inch ABS bowl. Activation can be performed using a flag handle or a foot treadle, and corrosion-resistant yellow covers protect the galvanized steel piping.
How does the water flow control work on the E100?
Water flow is activated by either the flag handle or the foot treadle and is maintained by a 1/2 inch stainless steel stay-open ball valve, which stays open during rinsing until you return it to the closed position for thorough flushing.
What are the main materials and construction details of the E100?
The unit uses GI construction with a durable ABS plastic bowl and galvanized steel piping. The yellow polyethylene covers protect the piping, and the valve/spray-head assembly is factory assembled for easier installation and maintenance.
What are the inlet and outlet sizes and the operating pressure ranges?
The E100 has a 1/2" NPT male inlet and a 1-1/4" NPT female outlet. It supports a working pressure of 0.2–0.8 MPa and a maximum static pressure of 0.9 MPa.
How many spray heads does it have and what features do they include?
The unit includes two spray heads. Each head has a dust cover, an internal flow control mechanism, and a filter to help remove impurities from the water flow.
How is the E100 installed and mounted?
The E100 is a free-standing, pedestal-mounted eye washer. The valve and spray-head assembly are factory assembled, and the galvanized piping is equipped with protective yellow covers for corrosion resistance, making installation straightforward in standard plumbing setups.
How do you operate the E100 during an emergency?
In an emergency, activate the rinsing flow using either the flag handle or the foot treadle. The stay-open ball valve keeps the flow running until you manually return it to the closed position, ensuring adequate rinsing of the eyes and face.
What maintenance does the E100 require to stay reliable?
Periodically inspect and clean the spray heads and dust covers, check the internal flow control and filters for debris, and verify the valve operation remains smooth. The factory-assembled components simplify routine maintenance.
What are typical use cases or applications for this eye washer?
Ideal for industrial and laboratory environments where immediate eye/face rinsing may be required, including manufacturing facilities, chemical plants, and workplaces with potential exposure to eye irritants or contaminants.
What safety and compliance features does the E100 offer?
The E100 uses corrosion-resistant materials and standard plumbing connections, two spray heads for effective rinsing, and a stay-open valve for continuous flow until closed, supporting rapid and thorough emergency rinsing in line with common industrial safety practices.
How does the Matsuda E100 compare to the Matsuda E120 Floor Standing Eye Washer on Fepy.com?
The E120 is a larger-capacity floor-standing model with similar installation. The E100 provides essential emergency rinsing with two heads and solid flow control, while the E120 offers increased flow and capacity. See the product page here: https://fepy.com/product/matsuda-e120-eye-washer-floor-standing
How does the Matsuda E100 compare to the Matsuda E80 Floor Standing Eye Washer on Fepy.com?
The E80 is a smaller-capacity alternative with a similar free-standing design. The E100 delivers a larger bowl and higher flow capacity, while the E80 offers a more compact option. See the product page here: https://fepy.com/product/matsuda-e80-eye-washer-floor-standing
Frequently Asked Questions
The E100 is a free-standing eye/face wash designed for emergency rinsing in industrial settings. It features GI construction, two spray heads with dust covers and internal flow control with filters, and a large 11-1/2 inch ABS bowl. Activation can be performed using a flag handle or a foot treadle, and corrosion-resistant yellow covers protect the galvanized steel piping.
Water flow is activated by either the flag handle or the foot treadle and is maintained by a 1/2 inch stainless steel stay-open ball valve, which stays open during rinsing until you return it to the closed position for thorough flushing.
The unit uses GI construction with a durable ABS plastic bowl and galvanized steel piping. The yellow polyethylene covers protect the piping, and the valve/spray-head assembly is factory assembled for easier installation and maintenance.
The E100 has a 1/2" NPT male inlet and a 1-1/4" NPT female outlet. It supports a working pressure of 0.2–0.8 MPa and a maximum static pressure of 0.9 MPa.
The unit includes two spray heads. Each head has a dust cover, an internal flow control mechanism, and a filter to help remove impurities from the water flow.
The E100 is a free-standing, pedestal-mounted eye washer. The valve and spray-head assembly are factory assembled, and the galvanized piping is equipped with protective yellow covers for corrosion resistance, making installation straightforward in standard plumbing setups.
In an emergency, activate the rinsing flow using either the flag handle or the foot treadle. The stay-open ball valve keeps the flow running until you manually return it to the closed position, ensuring adequate rinsing of the eyes and face.
Periodically inspect and clean the spray heads and dust covers, check the internal flow control and filters for debris, and verify the valve operation remains smooth. The factory-assembled components simplify routine maintenance.
Ideal for industrial and laboratory environments where immediate eye/face rinsing may be required, including manufacturing facilities, chemical plants, and workplaces with potential exposure to eye irritants or contaminants.
The E100 uses corrosion-resistant materials and standard plumbing connections, two spray heads for effective rinsing, and a stay-open valve for continuous flow until closed, supporting rapid and thorough emergency rinsing in line with common industrial safety practices.
The E120 is a larger-capacity floor-standing model with similar installation. The E100 provides essential emergency rinsing with two heads and solid flow control, while the E120 offers increased flow and capacity. See the product page here: https://fepy.com/product/matsuda-e120-eye-washer-floor-standing
The E80 is a smaller-capacity alternative with a similar free-standing design. The E100 delivers a larger bowl and higher flow capacity, while the E80 offers a more compact option. See the product page here: https://fepy.com/product/matsuda-e80-eye-washer-floor-standing
