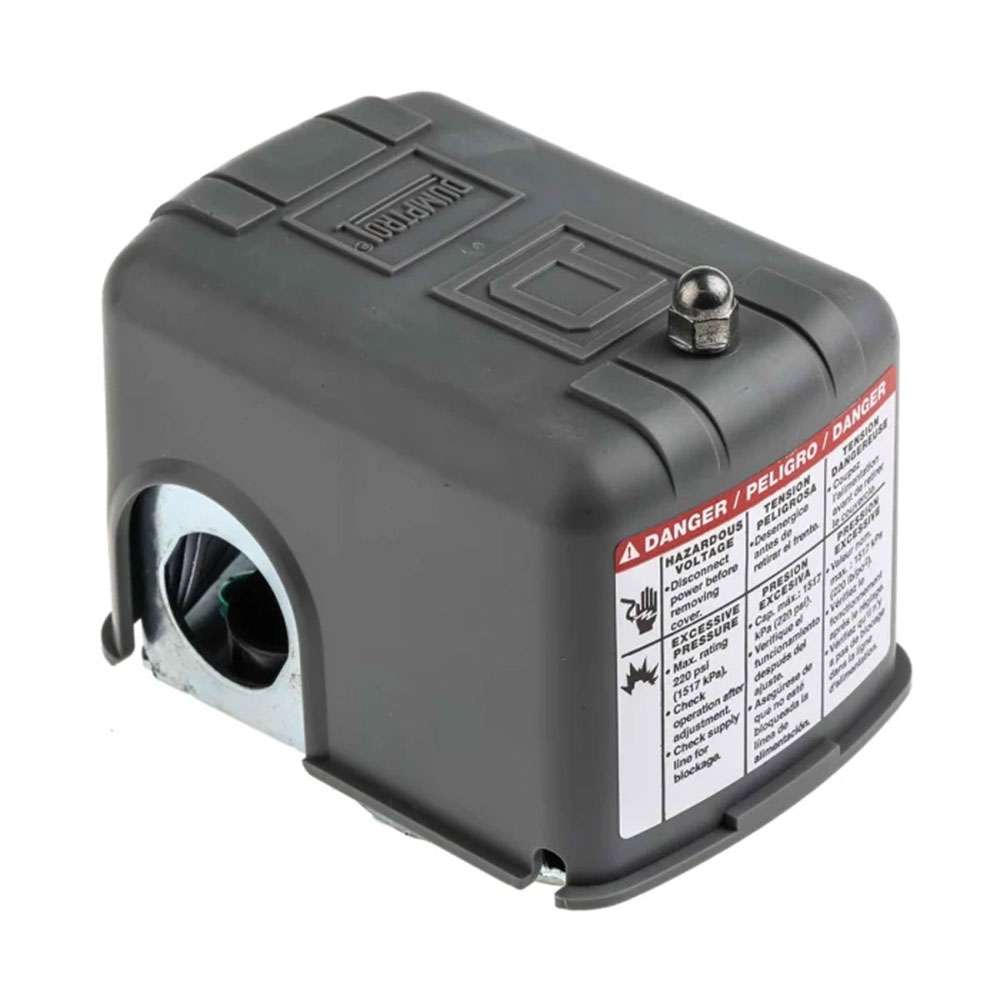

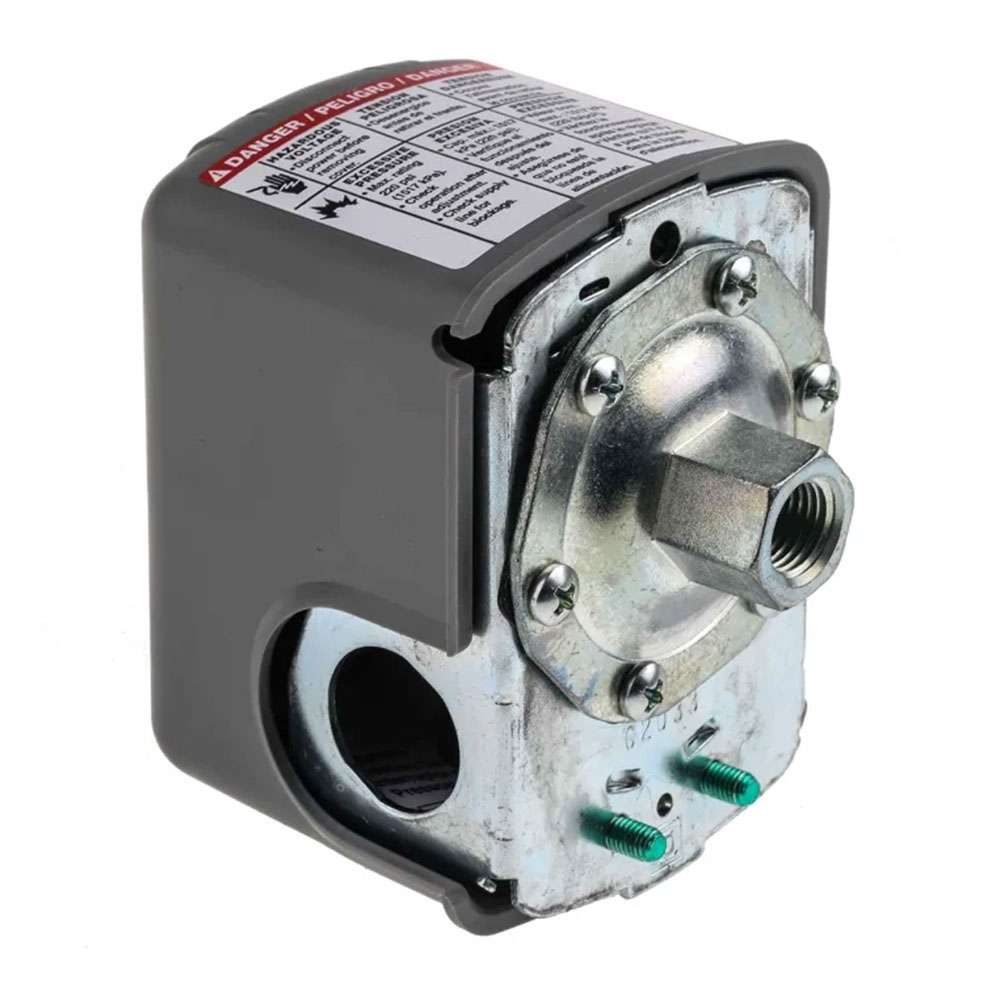

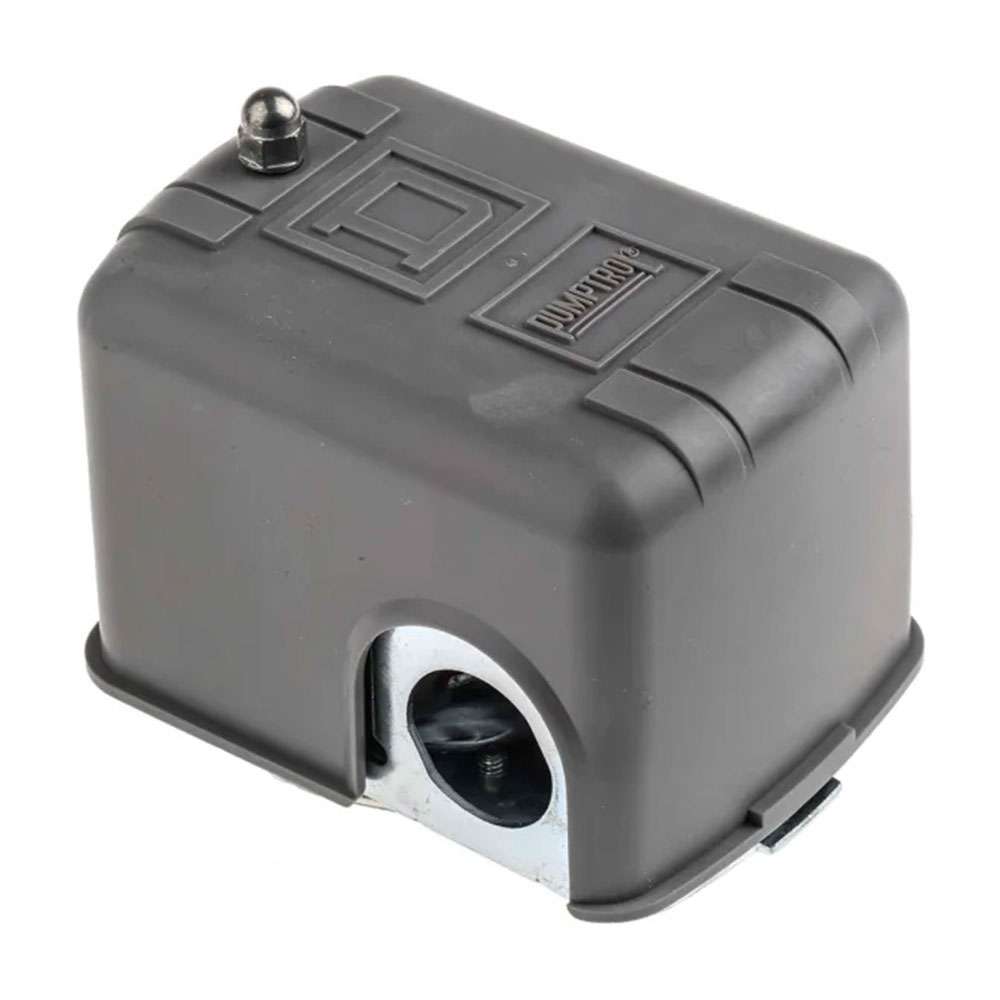

Square D Pressure Switch

It is designed for versatile use with jet pumps, submersible pumps, and reciprocating pumps, making it suitable for a wide range of residential and industrial pump applications.

Key features include durable construction for long-lasting performance, a maintenance-free design, reliable pressure regulation to keep system pressure stable, and a compact form factor for easy installation and integration with existing equipment.

Power must be shut off before installation. Mount the switch near the pump, connect the intake and output as per the wiring diagram, and attach it to the pump’s electrical circuit. Use a pressure gauge to set turn-on and turn-off pressures within the manufacturer’s recommended range, and ensure all connections are secure and protected from moisture.

The design is maintenance-free for typical use. Regular visual inspections to ensure there are no signs of damage, corrosion, or water ingress are advisable. If you notice any malfunction or wear, inspect or replace the switch as needed.

It's well-suited for residential pump systems, irrigation setups, and small to medium industrial pumping and air compressor setups where consistent pressure control and reliable operation are important.

Always disconnect power before installation or servicing, ensure proper enclosure protection against moisture and dust, verify electrical ratings match your system, and follow local electrical codes. The switch is designed with safety features to help prevent pump or compressor damage from pressure fluctuations.

This switch emphasizes versatile compatibility (jet pumps, submersible pumps, and reciprocating pumps), durable construction, and a maintenance-free design. When comparing, look at pressure range, electrical ratings, enclosure size, and how easily it can be integrated with your existing pump or compressor.

Check that your pump type matches the supported categories (jet, submersible, reciprocating), confirm the operating pressure range aligns with your system’s requirements, and ensure the electrical ratings and enclosure size are compatible with your setup.

Use cases include home well-water systems, irrigation setups, small commercial pumping, and air compressor applications where stable pressure and reliable cut-in/cut-off behavior are important.
