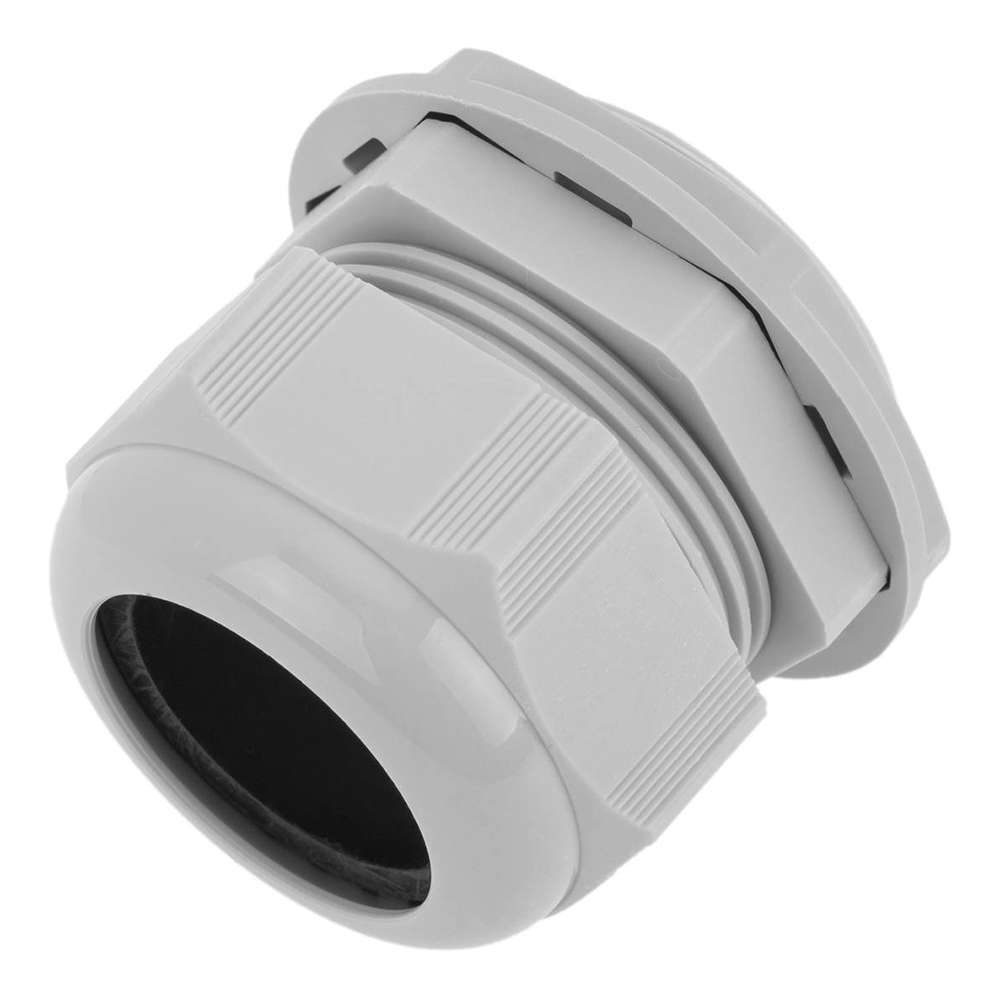

32mm PVC PG Cable Gland

This cable gland has an IP68 rating, indicating that it is dust-tight and can withstand continuous immersion in water, making it suitable for outdoor and harsh environments.

The operational temperature range for this cable gland is between -40°C to +100°C in static conditions, with short-term heat resistance up to 120°C. This allows it to function effectively in a variety of temperature conditions.

The cable gland has a thread outer diameter of 47mm and a thread length of 15mm. It is designed to accommodate cables with a diameter ranging from 22mm to 32mm.

The design of the cable gland includes claws and seals that firmly grip the cable, preventing any movement or strain on the connection. This feature helps maintain earth continuity and protects against environmental damage.

This cable gland is ideal for use in electrical enclosures, machinery, and equipment that require secure cable entry points. It is commonly used in industrial settings where protection against moisture and dust is critical.

Yes, the PVC material used in this cable gland offers resistance to various chemicals, including weak acids, oils, and greases. This makes it suitable for applications in environments where chemical exposure may occur.

The standard colours for the 32mm PVC PG Cable Gland are grey, white, and black. Custom colours may also be available upon request to meet specific project requirements.

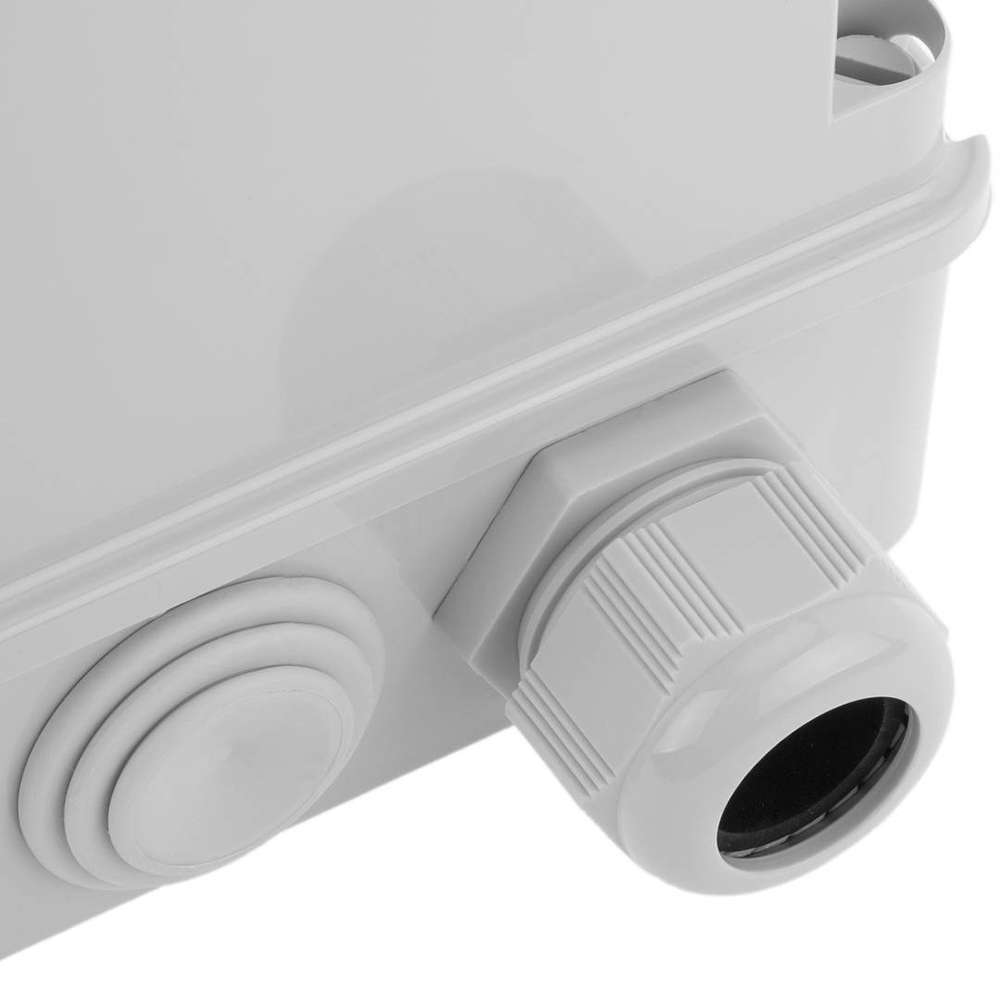

This PVC PG Cable Gland is designed to secure and seal cables as they enter an electrical enclosure. Its low-profile design helps in tight spaces, and it provides anti-vibration support along with chemical, dust, and UV resistance for both indoor and outdoor use.

The gland features a PVC body with a PG entry, offering UV resistance, chemical resistance, dust resistance, and anti-vibration properties. It is lightweight yet durable and is sold per piece.

Yes. The UV-resistant PVC construction makes it suitable for outdoor environments as well as indoor installations, providing protection against harsh conditions.

Install by selecting the correct PG size for your enclosure, insert the cable through the gland into the enclosure, place any seals as applicable, and tighten the gland nut with a suitable tool or by hand to achieve a snug, sealed fit. Then verify that the connection remains Secure and capped against dust and moisture.

PG thread sizes vary by product variation. Check the product page for the available sizes to choose the one that fits your cable and enclosure.

This gland works with standard cables that fit the gland’s PG entry size. Ensure the cable diameter falls within the gland’s approved range for a proper seal and secure fit.

The anti-vibration design reduces movement at the cable entry, helping prevent loosening or wear of connections in environments with machinery or movement, which extends the life of the seal.
