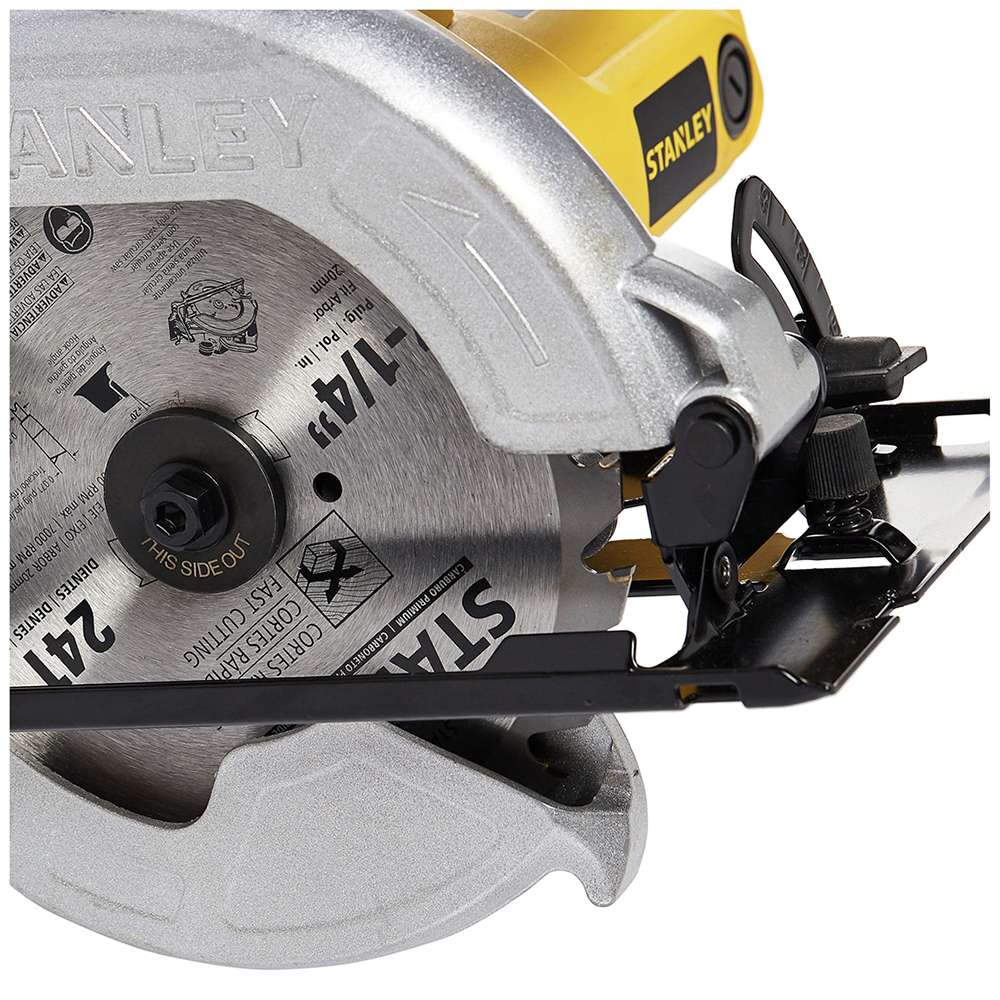

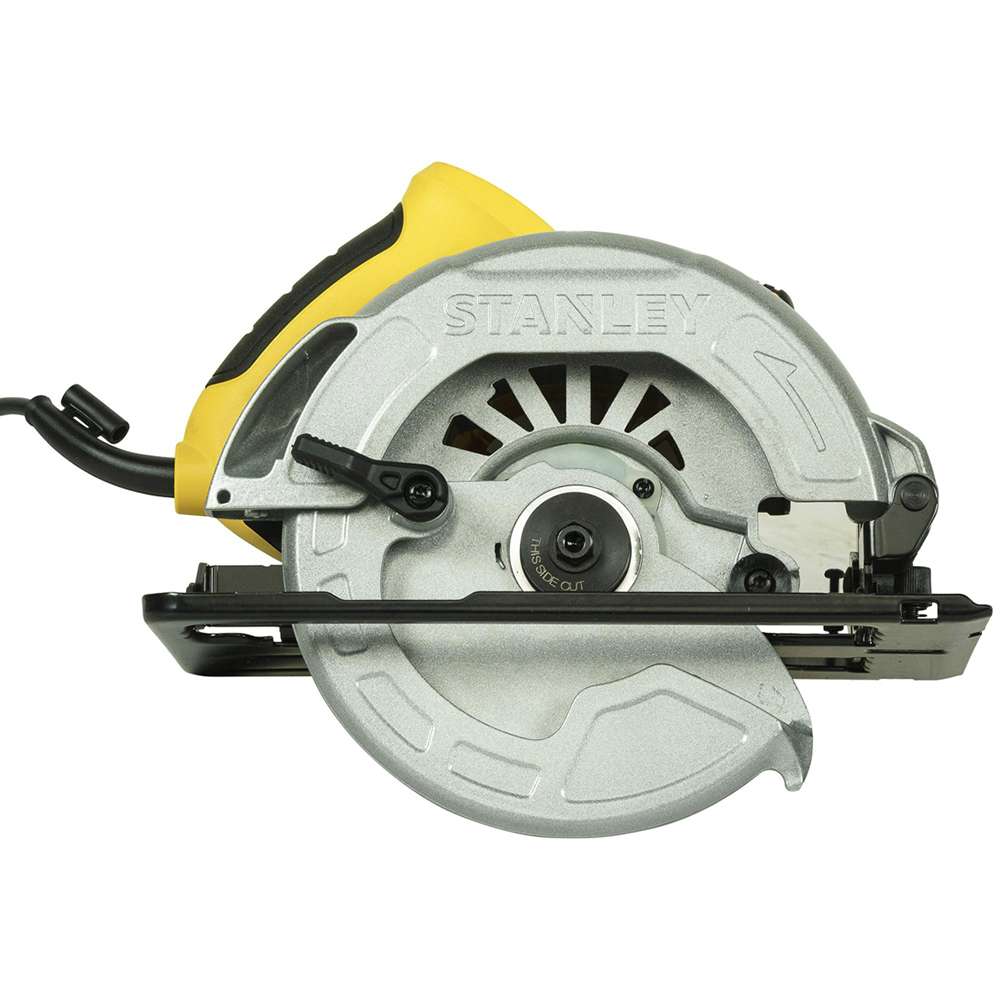

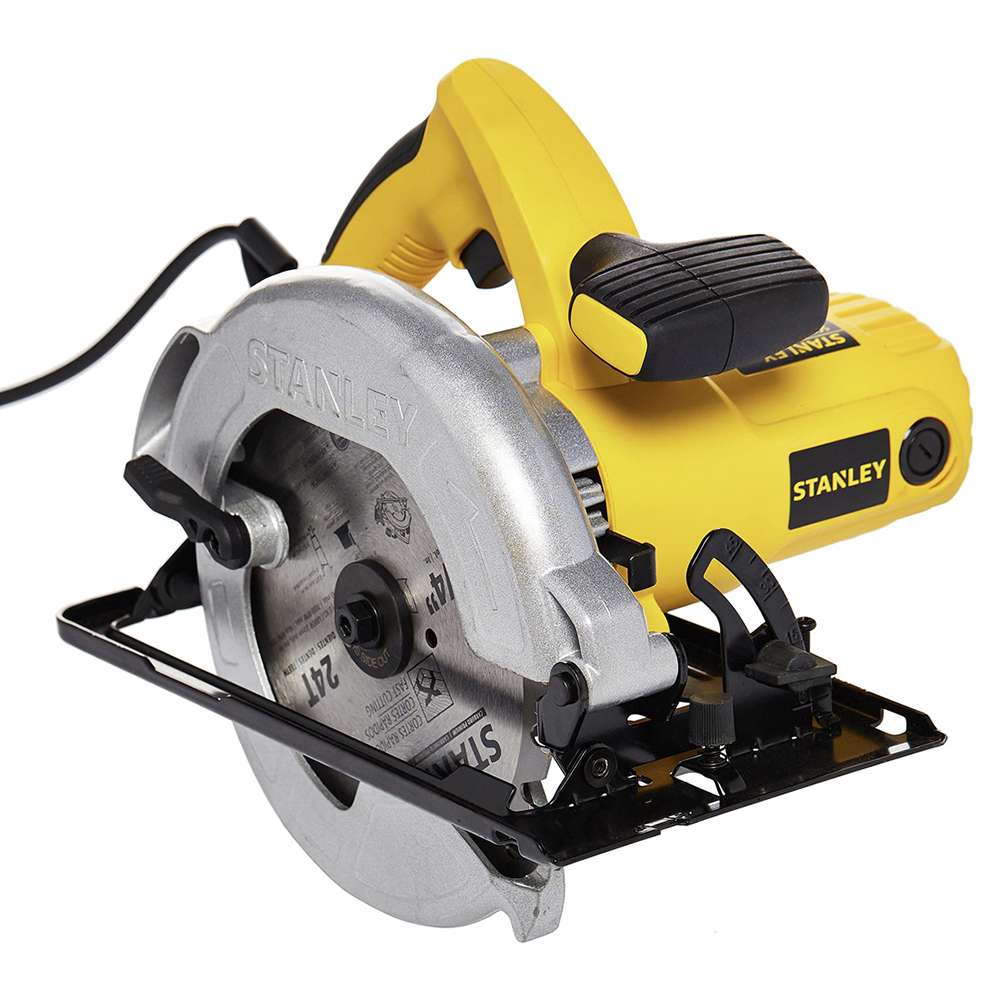

Stanley 190mm 1600W Circular Saw

Key specs include a 1600W motor, 190 mm blade diameter, cutting depth up to 57 mm at 90°, a 180° pivoting/adjustable footplate for bevel cuts, an accurate laser guide for precise cuts, a soft-start engine, an ABS body with anti-slip surface, and a dust port for extraction. It also comes with a 24-tooth TCT blade, dust bag, hex wrenches, blade wrench, work clamp, parallel fence, and carry case.

Inside the box you’ll find a 24T carbide-tipped blade, a dust bag, hex wrenches, a blade wrench, a work clamp, a parallel fence, and a carry case, providing the essentials for immediate use.

Unplug the tool, engage the spindle lock, loosen the blade bolt with the included blade wrench, remove the old blade, install the new 190 mm blade ensuring the teeth point forward, tighten securely, and release the spindle lock before testing on scrap material.

Connect a compatible dust extractor or vacuum to the dust port to remove sawdust during cutting. The design also includes a dust bag as a backup for collecting debris when a vacuum isn’t in use.

Safety features include a soft-start engine to prevent sudden jerks, an ergonomic rubberized handle for better control, an anti-slip ABS body, a dust protection guard, and a blade guard for enhanced protection during operation.

Yes. The saw has a 180° pivoting adjustable footplate, enabling bevel cuts. Always clamp and support the workpiece and verify the angle with a square or bevel gauge before cutting.

It’s best suited for wood and wood-based materials (like plywood and boards) when used with a suitable 190 mm blade. For other materials, use blades specifically designed for those materials and follow safety guidelines.

Yes. The combination of a soft-start, ergonomic grip, laser guide for alignment, and straightforward blade replacement makes it approachable for beginners while still delivering professional results for more experienced users.

This Stanley model emphasizes a robust 1600W motor, laser-guided precision, and a comprehensive accessory set. For close comparisons, you can explore similar 190mm options on Fepy such as the Stanley 1700W 190mm circular saw and the Stanley 1500W 190mm circular saw: https://fepy.com/stanley-1700w-190mm-circular-saw and https://fepy.com/stanley-1500w-190mm-circular-saw

Keep the blade clean and sharp, regularly clear dust from the guard and footplate, ensure the dust port is free of blockages, and store the tool in a dry place. Check blade alignment and securement after blade changes or any impact.

If you need higher power beyond 1600W, a deeper cut, or specialized features like integrated laser alignment variants or higher bevel ranges, compare with other 190mm options on Fepy to find a model that best matches your workload and budget. Use the linked alternatives for direct comparisons: https://fepy.com/stanley-1700w-190mm-circular-saw and https://fepy.com/stanley-1500w-190mm-circular-saw
