Stanley 1-77-160 24X Zoom IP54 Case Optical Level Kit

24x zoom provides clear views over longer distances, helping you read graduations accurately. IP54 means the unit is protected against dust and water splashes, suitable for typical outdoor conditions. The 36mm aperture enables brighter images, while a 0.3 m minimum focus distance lets you quickly focus on nearby targets. Together, these specs support reliable performance in construction sites and outdoor environments.

The wire-hung compensator balances the line of sight to compensate for minor tilts, improving level accuracy. Magnetic damping stabilizes the compensator’s movement, reducing bounce and aiding quick, stable readings even in less-than-perfect setups.

The 1:100 stadia ratio means that for every unit of vertical height seen on the lens reticle, the corresponding distance on the ground is 100 units. By reading the stadia lines through the telescope, you can estimate horizontal distances quickly without measuring every interval with a rod, which speeds up layout and leveling tasks.

IP54 indicates limited protection against dust ingress and protection from water splashes from any direction. This makes the kit suitable for most outdoor job sites where exposure to dust, light rain, or showers might occur, though it isn’t designed for submersion.

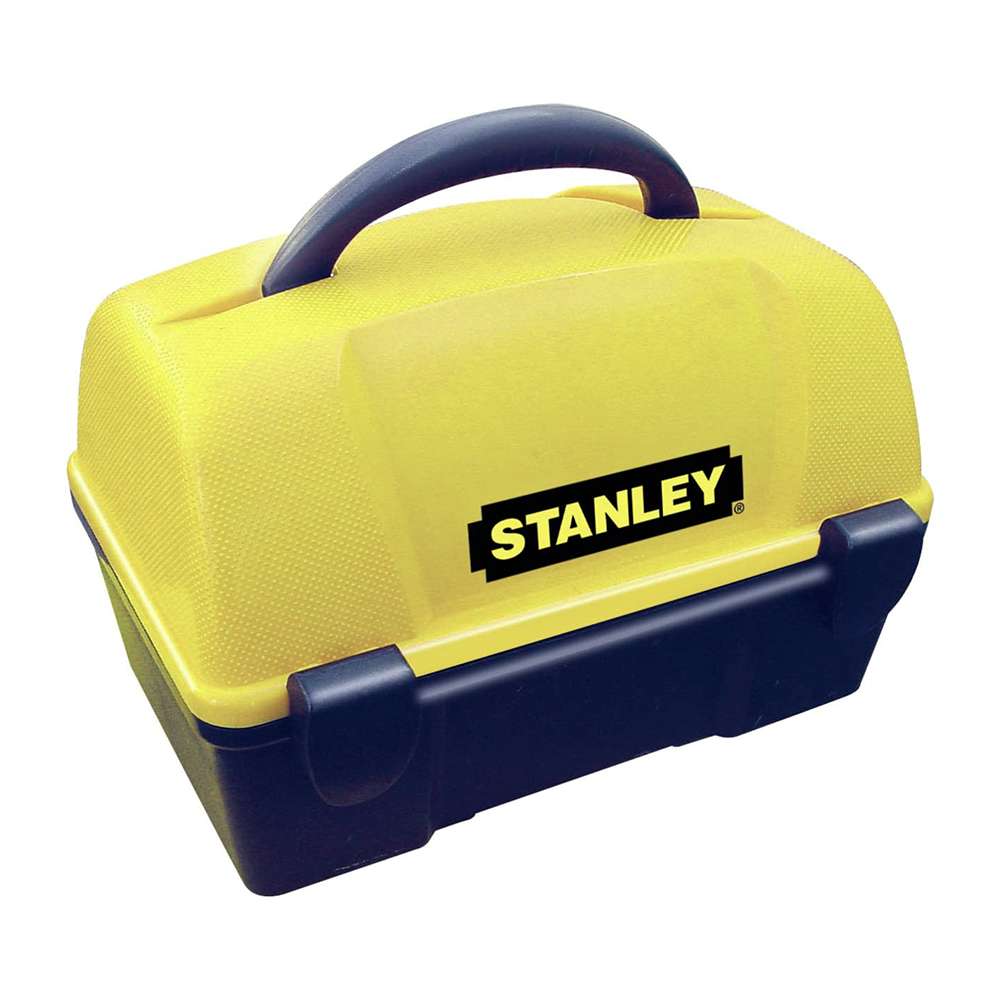

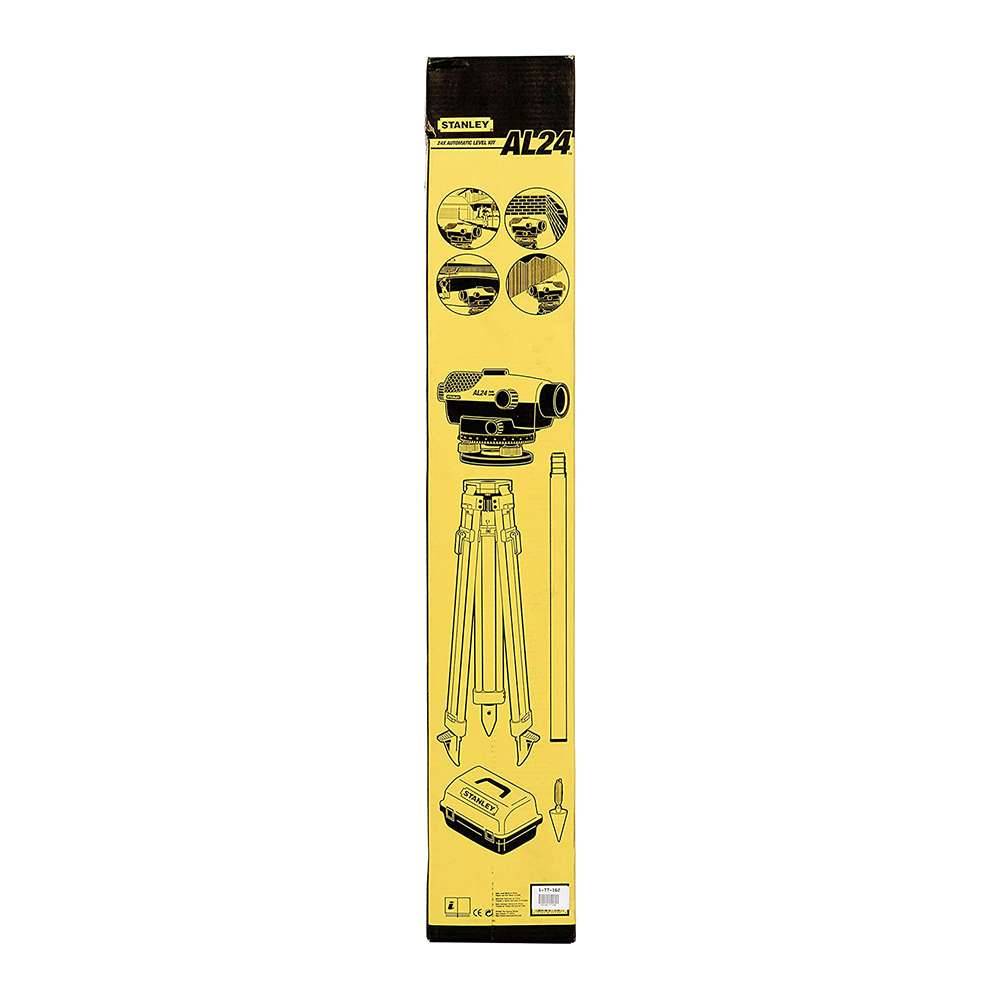

The kit comprises the AL24GVP automatic optical level, a sturdy tripod, a 5-meter aluminum leveling rod, a plumb bob, a lens cover, an Allen wrench, an adjusting pin, and a hard protective carry case, providing everything needed to set up and operate the level out of the box.

1) Mount the optical level on a stable tripod using the standard 5/8" x 11 thread. 2) Roughly level the tripod legs. 3) Sight through the eyepiece and adjust the leveling screws to bring the horizontal circle close to level. 4) Use the compensator to fine-tune the level, then lock the unit in place. 5) Attach the leveling rod and take vertical measurements, reading the horizontal circle and stadia lines for elevations.

Keep the lens clean with a soft, lint-free cloth; avoid aggressive cleaning. Store the kit in the provided hard case when not in use. Periodically check the leveling screws for dust buildup, calibrate if you notice drift, and protect the device from hard impacts. The IP54 rating helps with dust and splash resistance, but avoid prolonged exposure to heavy rain or submersion.

Yes. The kit uses a standard 5/8" x 11 thread, which is compatible with most common tripods used in surveying and construction. This makes it easy to pair with your existing tripod or replace the tripod if needed.

This kit bundles a high-magnification optical level, a robust tripod, a long leveling rod, and protective accessories in one package. It typically offers savings versus purchasing each item individually, along with a carry case for portability and protection—ideal for teams needing a ready-to-use setup on job sites.

If you’re considering alternatives on Fepy, you can compare with nearby Stanley optical level kits that share similar features like 24x zoom and IP54 protection. For reference, you can explore Stanley 1-77-161 24x Optical Level Kit at https://fepy.com/product/stanley-1-77-161-24x-optical-level-kit and Stanley 1-77-150 20x Optical Level Kit at https://fepy.com/product/stanley-1-77-150-20x-optical-level-kit to see how they differ in magnification, protection rating, and included accessories.

Common use cases include site leveling and transfer of elevations on construction sites, road and highway alignment, foundation layouts, and civil engineering surveys where precise horizontal and vertical measurements are required over moderate to long distances.

Yes. Start with a stable tripod and the rough leveling. Use the top optical peep sight to aid ranging alignment, then fine-tune with the compensator. When reading, focus on the horizontal circle for angle measurements and use the 1:100 stadia scale for distance estimation. Take multiple readings at the same point to verify consistency.
