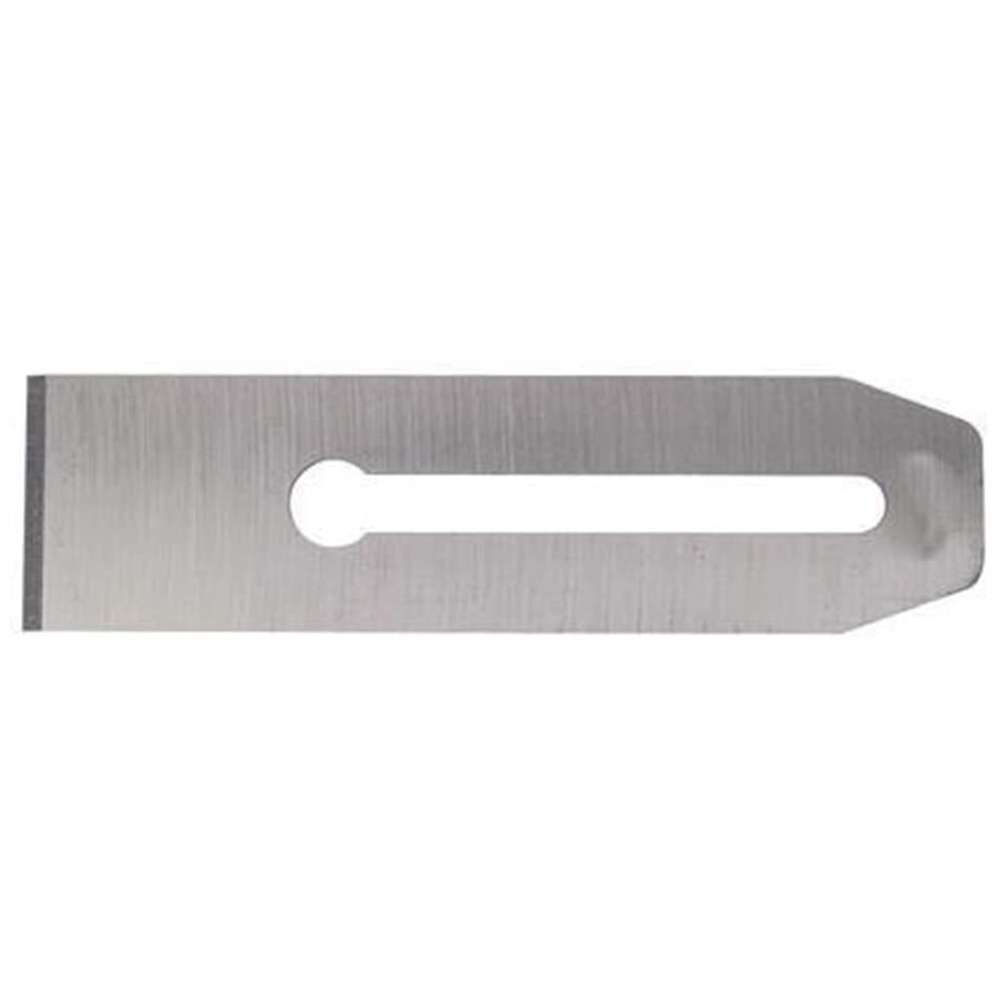

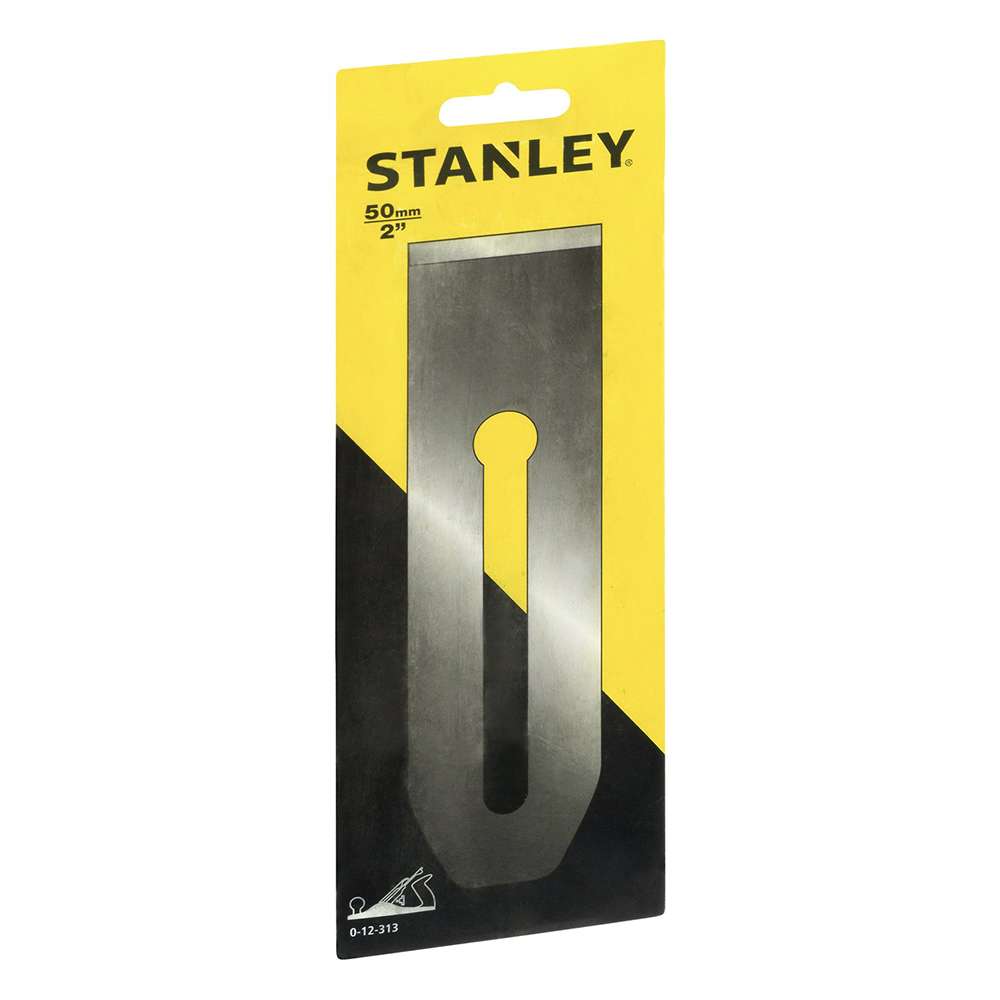

- Stanley supplies 50mm replacement irons like the 0-12-313 for Bailey pattern bench planes. The focus is on chrome carbon steel construction, a factory 25° ground bevel and flat back, helping users restore sharp, clean cutting performance on their No.4/5 size planes in everyday woodworking.
Key Features
Still need help? Contact on WhatsApp
Delivery by Thursday, 30 Jul
- 100% free subscription
- Easy Registration
Still need help? Contact on WhatsApp
Features & Benefits
Chrome Carbon Steel
Blade material offers excellent edge retention and allows a razor-sharp edge.
50mm Width
Standard 2" width fits common Stanley Bailey smoothing and jack plane bodies.
25° Bevel Ground
Supplied with a 25° primary bevel ready for honing to working sharpness.
Flat Ground Back
Flat back surface simplifies sharpening and reduces setup time at the stone.
Plane Refurbishment
Ideal for upgrading worn irons and reviving older bench planes in the shop.
Key Specifications
Custom Stock Status
In Stock
Weight
0.14 kg
Brands
Stanley
Color
Silver
Size
50 mm
Quantity Unit
PCS
Unit
Individual
Item Type
Replacement Plane Iron
Material
Carbon Steel
Frequently Asked Questions
What exactly is the Stanley 0-12-313 50mm plane iron and what is it used for?
The Stanley 0-12-313 is a 50 mm wide plane iron designed for Bailey-style planes. It’s made from high-carbon chrome steel to deliver a sharp, durable edge for precise wood removal, smoothing, and finishing tasks.
What are the key specifications of this blade?
Key specs: 50 mm width, high-carbon chrome steel for long-lasting sharpness, part number 0-12-313, designed for precise depth control and durable performance in woodworking.
Which planes or tools will it fit?
It’s intended for Bailey-style planes and any setup that accepts a 50 mm iron. Check your plane’s mouth width to confirm compatibility with a 50 mm blade.
How do I install this iron in a Bailey plane?
Steps: 1) Remove the plane’s lever cap and old iron. 2) Clean the bed and ensure it’s free of debris. 3) Insert the new iron with the bevel facing down toward the mouth. 4) Align the edge with the mouth opening. 5) Refit the lever cap and secure the iron. 6) Make a test cut and adjust the depth as needed.
How should I sharpen and maintain the blade for best results?
Sharpen by flattening the back and honing the edge on a fine stone. Start with a suitable primary bevel (commonly around 25–30 degrees for metal plane irons) and use a light micro-bevel as needed. Keep the edge clean and dry after use, and lightly oil to prevent corrosion. Regular maintenance helps preserve a razor-sharp edge.
How do I adjust the depth and alignment for controlled shavings?
Adjust the depth by using the plane’s depth adjustment mechanism to protrude the iron edge a precise amount. Start with a shallow cut and test on scrap wood, then increase depth gradually while keeping the iron aligned with the mouth for uniform shavings.
What are common use cases for this blade?
Ideal for smoothing, fine finishing, trimming, and light grooving on hardwoods or softwoods. Its 50 mm width supports controlled material removal with good stability in tighter workpieces.
What safety considerations should I keep in mind when handling a fresh blade?
Handle the blade with care, keep it pointed away from your body, wear cut-resistant gloves when handling, and store it with a blade guard or in a protective sheath to prevent accidental contact.
How does this blade compare to other 50mm irons on Fepy?
If you’re evaluating alternatives on Fepy, you can explore other 50 mm irons to compare edge retention and pricing. For example, you might look at a Stanley 0-12-315 50mm Plane Iron and a Fepy-brand 50mm Bailey-plane iron to see differences in finish and value.
Where can I find similar 50mm irons on Fepy for quick comparison?
You can browse similar options on Fepy at: https://fepy.com/search?q=plane+iron+50mm and https://fepy.com/search?q=bailey+plane+iron to see current availability and prices.
Frequently Asked Questions
The Stanley 0-12-313 is a 50 mm wide plane iron designed for Bailey-style planes. It’s made from high-carbon chrome steel to deliver a sharp, durable edge for precise wood removal, smoothing, and finishing tasks.
Key specs: 50 mm width, high-carbon chrome steel for long-lasting sharpness, part number 0-12-313, designed for precise depth control and durable performance in woodworking.
It’s intended for Bailey-style planes and any setup that accepts a 50 mm iron. Check your plane’s mouth width to confirm compatibility with a 50 mm blade.
Steps: 1) Remove the plane’s lever cap and old iron. 2) Clean the bed and ensure it’s free of debris. 3) Insert the new iron with the bevel facing down toward the mouth. 4) Align the edge with the mouth opening. 5) Refit the lever cap and secure the iron. 6) Make a test cut and adjust the depth as needed.
Sharpen by flattening the back and honing the edge on a fine stone. Start with a suitable primary bevel (commonly around 25–30 degrees for metal plane irons) and use a light micro-bevel as needed. Keep the edge clean and dry after use, and lightly oil to prevent corrosion. Regular maintenance helps preserve a razor-sharp edge.
Adjust the depth by using the plane’s depth adjustment mechanism to protrude the iron edge a precise amount. Start with a shallow cut and test on scrap wood, then increase depth gradually while keeping the iron aligned with the mouth for uniform shavings.
Ideal for smoothing, fine finishing, trimming, and light grooving on hardwoods or softwoods. Its 50 mm width supports controlled material removal with good stability in tighter workpieces.
Handle the blade with care, keep it pointed away from your body, wear cut-resistant gloves when handling, and store it with a blade guard or in a protective sheath to prevent accidental contact.
If you’re evaluating alternatives on Fepy, you can explore other 50 mm irons to compare edge retention and pricing. For example, you might look at a Stanley 0-12-315 50mm Plane Iron and a Fepy-brand 50mm Bailey-plane iron to see differences in finish and value.
You can browse similar options on Fepy at: https://fepy.com/search?q=plane+iron+50mm and https://fepy.com/search?q=bailey+plane+iron to see current availability and prices.
