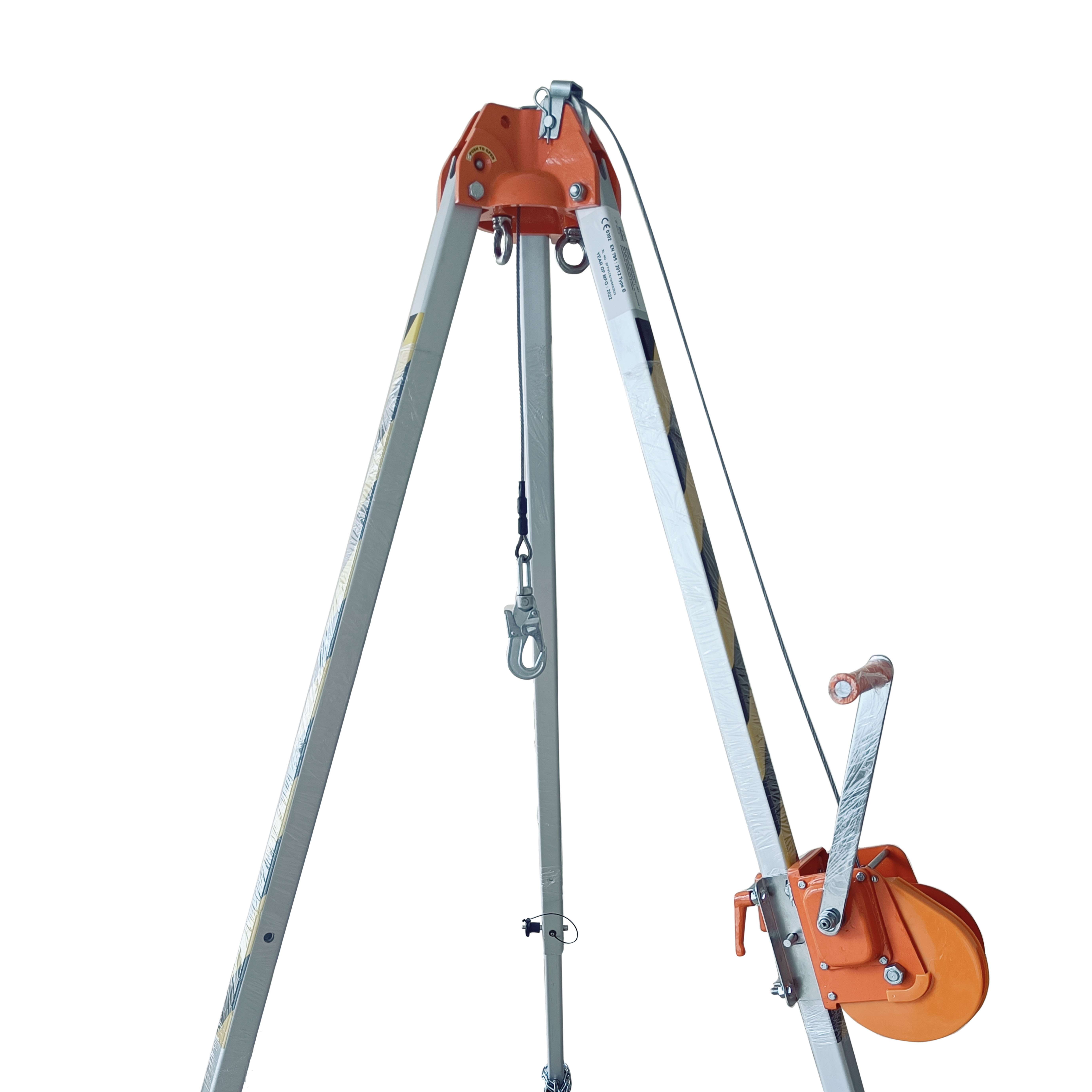

Vaultex OAB 20 Mtr Winch Tripod Set

Key specs include a 100 kgf maximum weight capacity, aluminum construction, auto-locking winch, adjustable legs with pin stops, a built-in anchor point for fall-arrest use, safety straps to prevent leg spreading, anti-skid foot-pads, and EN 795:2012 and EN 1496:2017 safety standard compliance. It also features a 20 m winch reach and an eye bolt for a secondary anchor point.

1. Clear a level working surface and inspect the tripod components. 2. Extend the legs and lock them at the desired height using the easy-pin adjustments. 3. Ensure safety straps are in place to prevent leg spread. 4. Attach the winch and route the line as instructed in the manual. 5. Connect the primary anchor point to your fall-arrest system and verify the auto-locking mechanism engages. 6. Check all connections and confirm stability before work begins.

Attach your full-body harness to the primary anchor point of the tripod’s built-in anchor system and connect your lanyard or lifeline per your safety plan. Use the eye bolt as a secondary anchor point if needed. Always ensure your fall-arrest equipment is EN-certified and rated for the work and never exceed the 100 kgf limit.

It includes an auto-locking winch to prevent free-fall, safety straps to keep legs from spreading, anti-skid foot-pads for stable footing, and a built-in anchor point for fall-arrest systems. The construction is designed to meet EN 795:2012 and EN 1496:2017 standards for compliant fall protection.

Yes. The aluminum tripod is designed for both indoor and outdoor use, including construction sites, industrial settings, and healthcare or office environments. Use on stable, level surfaces and avoid launching on wet, uneven, or unstable ground, which can affect stability.

Regularly inspect for any signs of wear, corrosion, or damage to legs, pins, straps, and the winch. Check the auto-locking mechanism, anchor points, and foot-pads for wear. After use, clean off dirt and store in a dry, protected area. If any component shows damage or excessive wear, replace or service before next use.

Typical applications include accessing elevated work areas on construction sites, performing maintenance in industrial facilities, healthcare facility tasks requiring safe height access, and any job that benefits from secure, compliant fall-protection overhead access.

The 20 Mtr variant offers a balance of reach, weight capacity, and portability. Shorter variants (e.g., 10–15 m) tend to be lighter and more compact, while longer variants (e.g., 30 m) provide greater reach but may be heavier and more expensive. See the following related options on Fepy for direct comparisons: 15 Mtr: https://fepy.com/product/vaultex-oab-15-mtr-winch-tripod-set, 30 Mtr: https://fepy.com/product/vaultex-oab-30-mtr-winch-tripod-set, 10 Mtr: https://fepy.com/product/vaultex-oab-10-mtr-winch-tripod-set

Value depends on your required reach, load, and environment. The Vaultex OAB 20 Mtr offers robust safety features and EN-compliant performance at a balanced price point relative to longer or shorter variants. Compare features, standards, and in-box components with other Vaultex options on Fepy to determine the best value for your specific use case.

The package includes the Vaultex OAB 20 Mtr Winch Tripod Set with its aluminum tripod frame, winch system, safety straps, anti-skid foot-pads, and an eye bolt for a secondary anchor point. The setup guide or manual is typically included as well to help with correct assembly and usage.

The product is listed as compliant with EN 795:2012 and EN 1496:2017. Always check the product page for the current compliance statement and any accompanying certificates or labeling on the unit. Ensure ongoing use adheres to those standards and your safety procedures.
