BRC A142 Mesh UAE: Specifications, Pricing & Installation Guide for Contractors

What Is BRC A142 Mesh? Specifications & Wire Gauge

BRC (British Reinforcement Contractor) is a mesh designation system widely adopted across the GCC. The "A" series denotes square mesh — both directions carry identical wire at identical spacing. A142 refers to the cross-sectional steel area per metre width: 142 mm²/m in each direction.

Wire Diameter & Spacing: Understanding the A142 Grid Pattern

• Wire diameter: 6 mm (both longitudinal and transverse)
• Mesh spacing: 200 mm × 200 mm centre-to-centre
• Steel area provided: 142 mm²/m in each direction [BS 4483:2005]
• Reinforcement type: Cold-drawn, welded wire fabric
• Yield strength (Re): ≥ 500 N/mm² [BS 4449 / BS 4483]
• Tensile strength (Rm): ≥ 550 N/mm² [BS 4483:2005]

Sheet Size & Weight: Handling & Storage on Site

• Standard sheet size: 2.4 m × 4.8 m (11.52 m² per sheet)
• Sheet weight: approximately 26 kg per sheet (calculated: 142 mm²/m × 2 directions × 7,850 kg/m³ × grid geometry, consistent with manufacturer mill certificates)
• Sheets per tonne: approximately 38–39 sheets

At 26 kg per sheet, two labourers can lift and position a sheet safely. In UAE summer temperatures exceeding 45°C, restrict manual handling of full sheets to early-morning pours — heated steel edges cause burns through standard gloves.

A142 vs A193: Which Reinforcement Mesh for Your Project?

A142 is the right call for residential villa ground slabs up to 125 mm thickness where the engineer has confirmed the steel area requirement. For anything carrying heavy point loads — racking systems, industrial plant — step up to A193 or consult your structural engineer for a custom specification.

BRC A142 Mesh Pricing in UAE: Cost per Sheet 2026

Steel mesh pricing in the UAE tracks global rebar commodity rates and local fabrication costs. As of Q2 2026, expect the following indicative range for A142 mesh:

Prices exclude VAT (5%) and delivery. Bulk orders placed through e-commerce platforms with direct supplier integration — such as FEPY — typically yield the contractor-tier rate without requiring a separate trade account setup. Always request a mill test certificate (MTC) alongside any bulk order; reputable UAE suppliers provide these as standard.

Installation & Overlap Requirements for A142 Mesh

How to Order: Sheets per m² of Slab

Each sheet covers 11.52 m² gross. However, you must account for lapping — the standard structural overlap for A142 mesh is one mesh pitch plus 50 mm minimum, which for 200 mm spacing gives a lap of at least 250 mm per joint [BS 8666 / Dubai Municipality structural guidelines].

Practical ordering formula:

• Net slab area (m²) ÷ 9.5 m² effective coverage per sheet = number of sheets required
• Add 5–8% waste factor for cut edges and irregular perimeters

Example: A 200 m² ground slab → 200 ÷ 9.5 = 21.1 → round up to 22 sheets + 5% waste = 24 sheets minimum.

Overlap Joints & Lapping Requirements per DM Guidelines

• Lap joints must be staggered — do not align all joints on the same grid line
• Tie wire (1.6 mm annealed) every alternate intersection along the lap zone

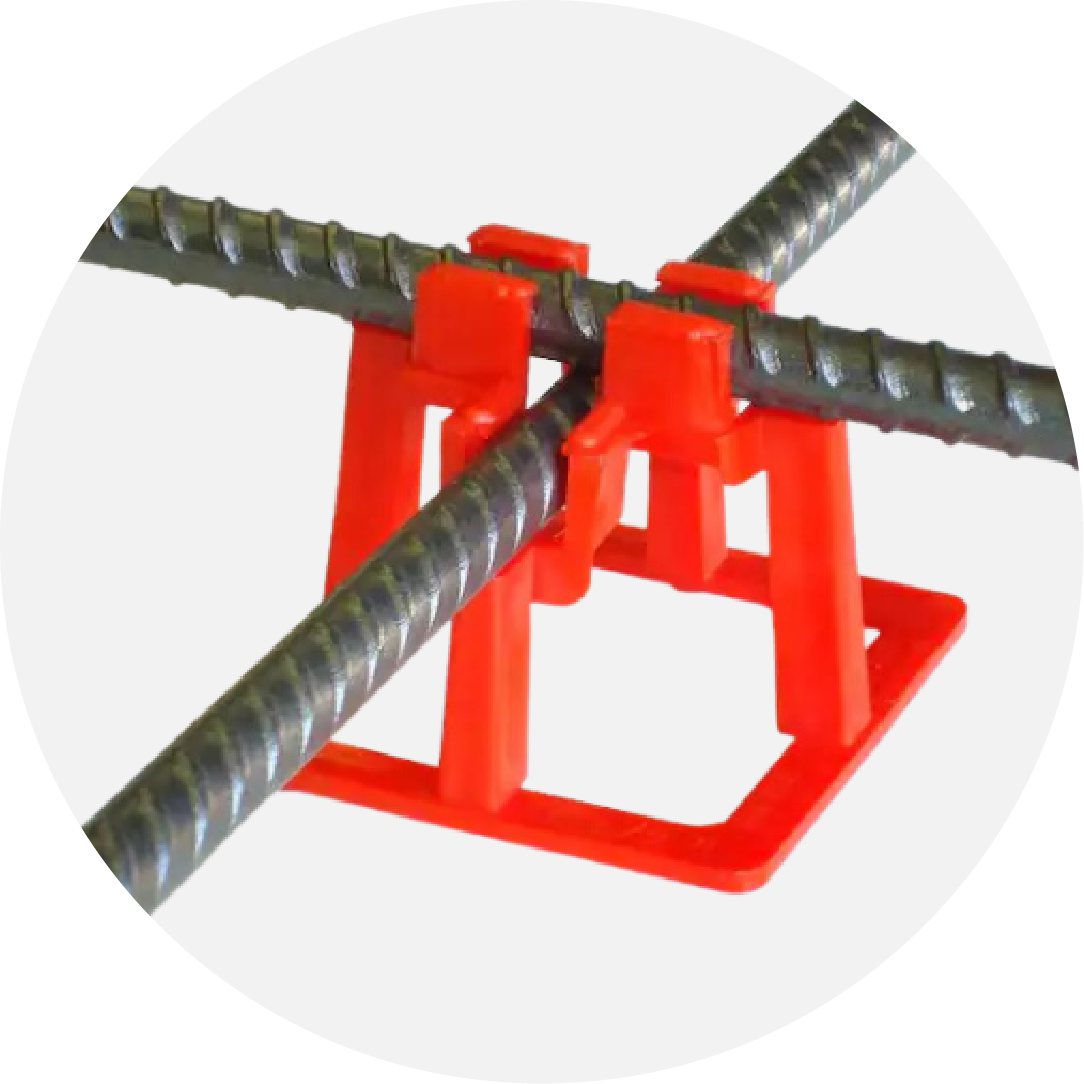

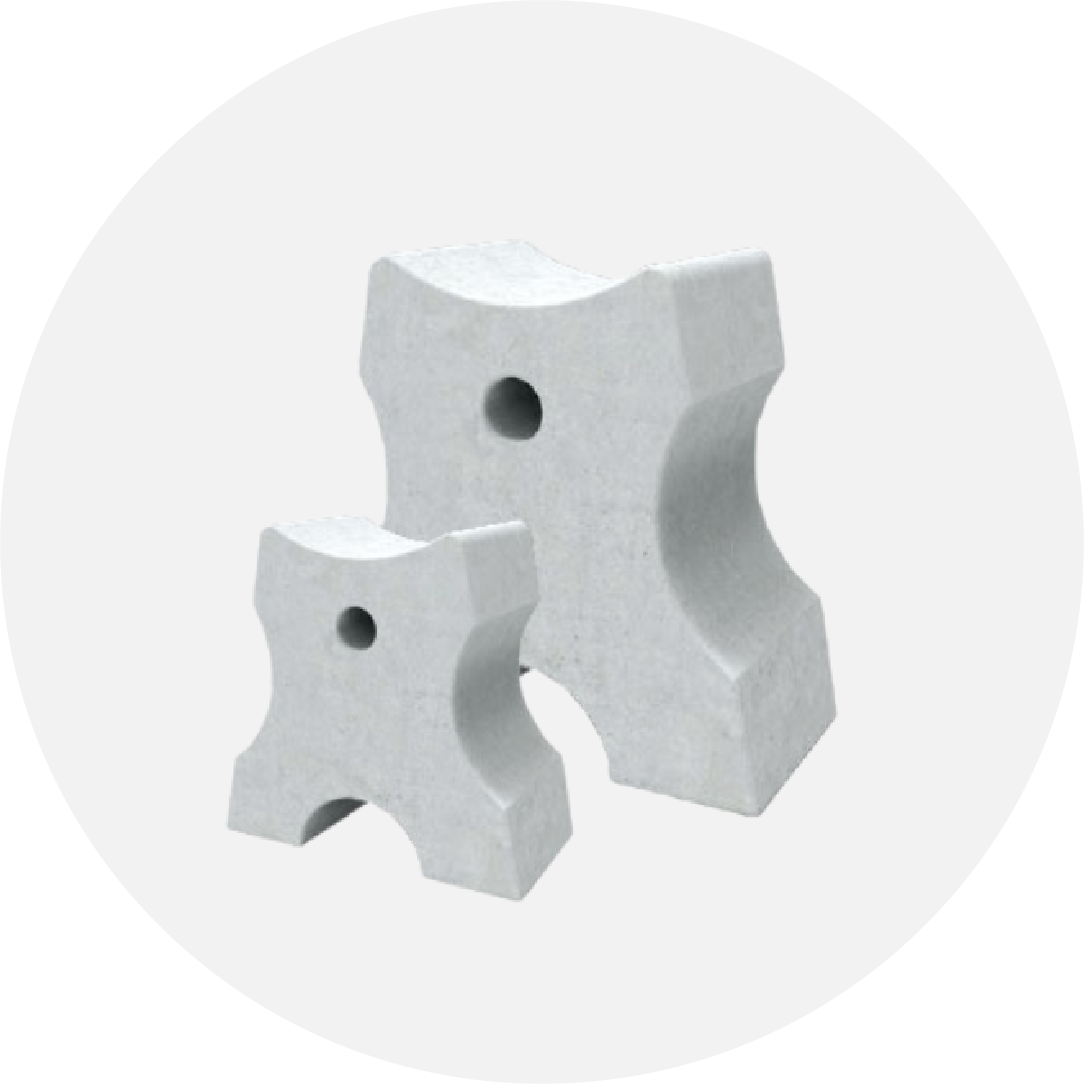

• Mesh must be supported on rebar chairs or concrete spacers to maintain correct cover — minimum 40 mm for slabs-on-ground in UAE exposure class XC2 [ACI 318 / BS 8110]
• Do not allow mesh sheets to rest directly on blinding concrete without spacers; this eliminates cover and accelerates corrosion in coastal humidity

Cutting & Bending A142 Mesh on Site

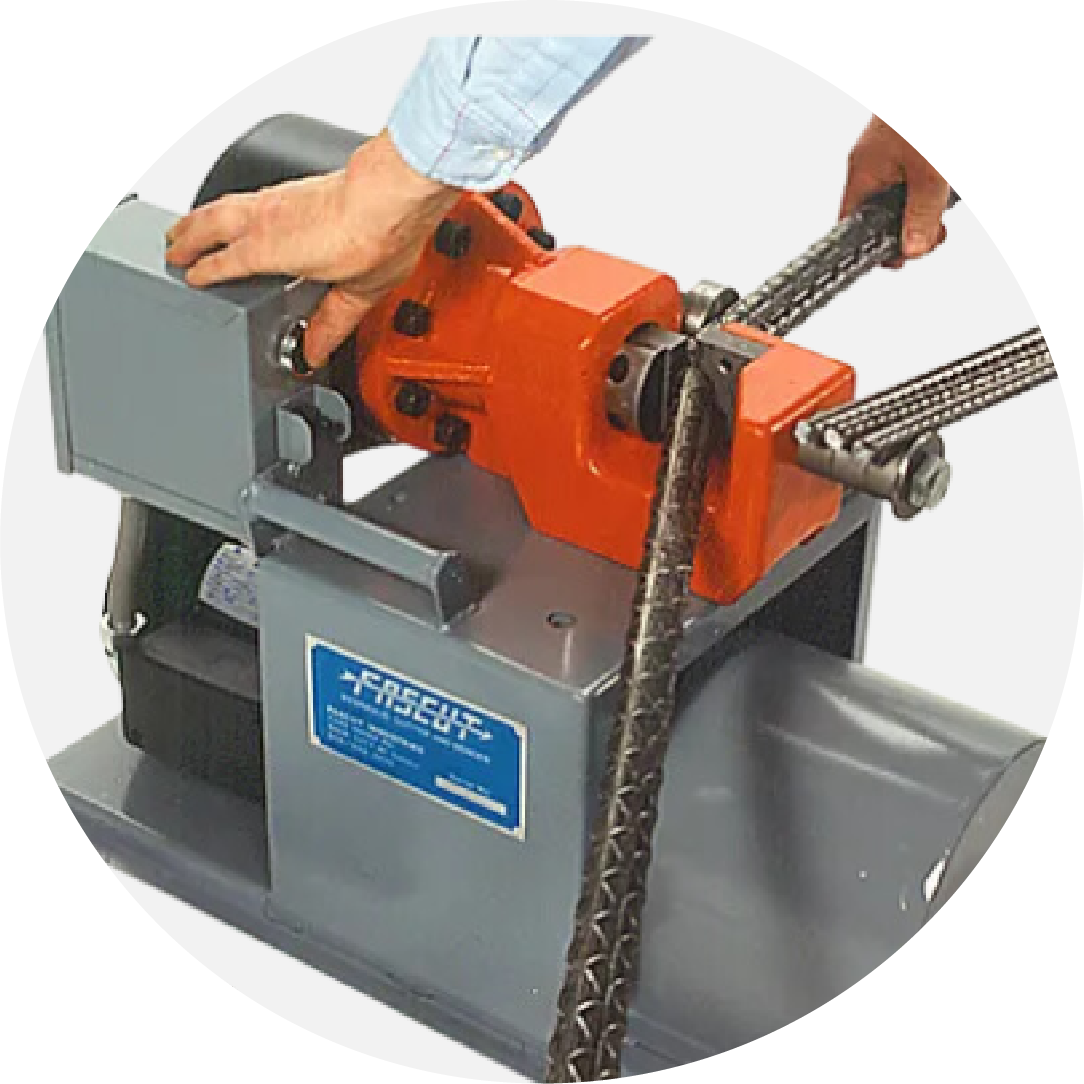

A 6 mm wire cuts cleanly with bolt croppers or an angle grinder. For volume cutting — fitting around columns, drainage pits, or service penetrations — a purpose-built rebar cutter and bender speeds the job considerably versus hand tools. Always wear cut-resistant gloves; freshly cut 6 mm wire ends are sharp enough to puncture standard work gloves.

Climate & Durability: A142 Mesh Performance in UAE Heat & Humidity

UV Resistance & Rust Prevention in Coastal Projects

Bare carbon steel mesh will begin surface oxidation within days in Abu Dhabi or Ajman coastal sites where relative humidity regularly exceeds 80% overnight. Key site practices:

• Store off ground: Stack sheets on timber bearers minimum 150 mm above grade; never store directly on soil
• Cover in transit: Exposed mesh on flatbed trucks in salt-air coastal zones will show red rust within 24 hours — use tarpaulin covers
• Pour within 48 hours of laying: Surface rust (light oxidation) is acceptable and does not reduce bond [BS 8500]; heavy flaking or pitting requires rejection and replacement
• Thermal expansion: Steel expands at ~12 × 10⁻⁶/°C [standard carbon steel coefficient]. A 4.8 m sheet at 50°C ambient versus 20°C baseline expands approximately 1.7 mm — negligible for standard slab design but relevant at long movement-joint spans

Major BRC A142 Suppliers & Brands in the UAE Market

Always verify that the supplier's product carries an ESMA conformity mark or a third-party tested mill certificate before acceptance on site. Dubai Municipality structural inspectors routinely request MTCs at slab inspection stage.

Safety & Compliance: UAE Building Standards for Welded Mesh

A142 mesh used in UAE structural applications must comply with:

• BS 4483:2005 — Steel fabric for the reinforcement of concrete: specification [BSI Group — BS 4483 Fabric Reinforcement Standard]
• ESMA UAE.S GSO 2031 — GCC conformity for steel reinforcement products [ESMA — Emirates Authority for Standardisation and Metrology]
• Dubai Municipality Building Code — structural concrete cover and reinforcement requirements for exposure classes relevant to UAE environment

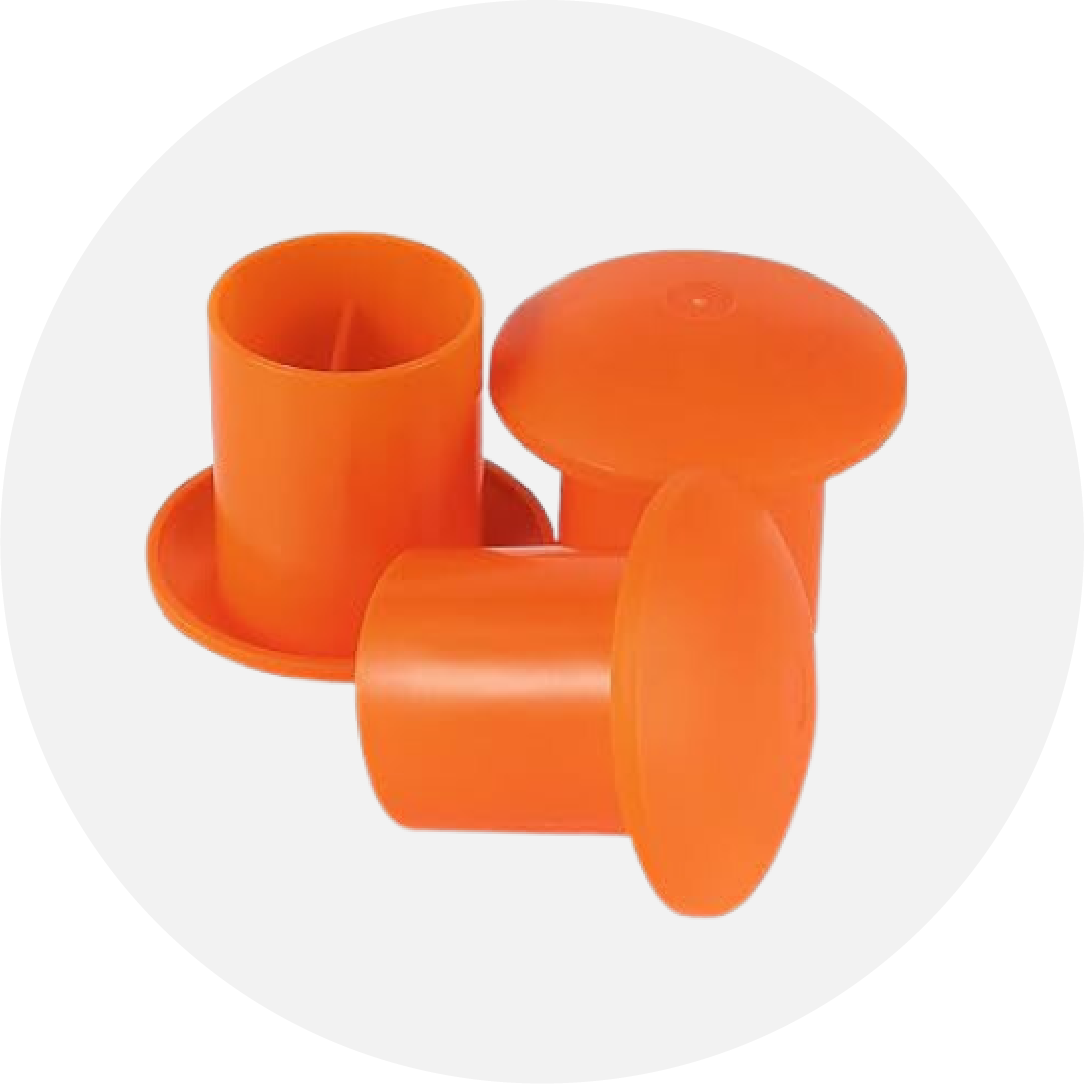

On safety: exposed rebar and mesh ends are a leading cause of puncture injuries on UAE construction sites. Cap all vertical protruding ends with rebar safety caps immediately after placement, before any other trades enter the slab area. This is enforced by Dubai Municipality site safety inspections.

Quality Certification & Mill Test Certificates

A mill test certificate must confirm: heat number, chemical composition, mechanical test results (yield strength, tensile strength, elongation), and reference to BS 4483 or equivalent GCC standard. Reject any delivery where the MTC references a different heat number from the bundle tags.

Where to Buy BRC A142 Mesh in Dubai, Abu Dhabi & Sharjah

FEPY supplies A142 mesh and the full range of steel rebar and accessories for UAE contractors, with online ordering and site delivery available across all seven emirates. You can also browse the full remesh category for other structural mesh designations.

For related structural materials:

• Rebar (deformed bar) — for column ties, starter bars, and top reinforcement
• Cement & concrete products — ready-mix admixtures and concrete accessories

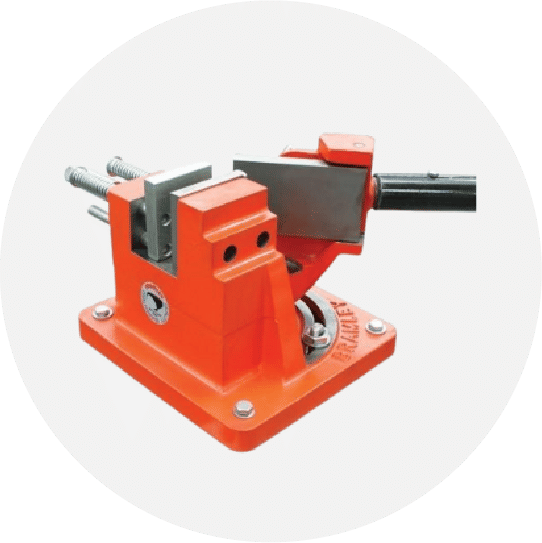

• Bar bending tools — for on-site mesh trimming and rebar shaping
• Building materials — full range for civil and fit-out works

For bulk contractor orders exceeding 50 sheets, contact FEPY's trade desk directly for volume pricing and delivery scheduling — most Dubai and Abu Dhabi sites receive next-day delivery on stock mesh designations.

Common Installation Mistakes & How to Avoid Them

• Wrong mesh designation: A142 has 6 mm wire at 200 mm spacing — confirm against your engineer's drawing before signing the delivery note. A252 looks similar on site but has 8 mm wire.
• Insufficient lap: A single-pitch lap (200 mm) is not compliant — minimum is 250 mm per BS 8666 for A142. Short laps are invisible after the pour and will only surface during crack surveys.
• No spacers: Mesh resting on blinding is a zero-cover detail. Inspectors will fail the slab and require coring to verify cover post-pour.
• Storing on ground: Sheets stacked directly on site soil will rust from the bottom up within a week in UAE humidity. Use timber bearers and tarpaulin.
• Skipping the MTC check: Substandard mesh entering the UAE without ESMA conformity does occur. A failed tensile test on a poured slab means demolition — there is no remedial option.

Frequently Asked Questions: A142 Mesh

How much does BRC A142 mesh weigh per sheet?

A standard A142 sheet measuring 2.4 m × 4.8 m weighs approximately 26 kg. This is calculated from the 6 mm wire diameter, 200 × 200 mm grid, and the steel density of 7,850 kg/m³, consistent with manufacturer mill certificates from major UAE suppliers.

What is the current price of A142 mesh in UAE 2026?

In Q2 2026, A142 mesh retails at approximately AED 110–130 per sheet for small quantities. Contractor bulk orders (50+ sheets) typically achieve AED 90–105 per sheet, excluding VAT and delivery. Prices vary with global steel commodity rates — request a live quote for large volumes.

What is the difference between A142 and A193 mesh?

Both are square-mesh fabrics at 200 × 200 mm spacing. A142 uses 6 mm wire (142 mm²/m steel area) while A193 uses 7 mm wire (193 mm²/m). A193 is heavier (~35 kg/sheet) and suited to thicker or more heavily loaded slabs. Use A142 where your engineer's drawings specify 142 mm²/m reinforcement.

What overlap (lap length) is required for A142 mesh in UAE slabs?

The minimum structural lap for A142 mesh is one mesh pitch plus 50 mm = 250 mm per BS 8666. Laps must be staggered so they do not all fall on the same grid line. Dubai Municipality structural inspectors check lap lengths during slab inspection; under-lapped mesh will result in a failed inspection and required remedial action before the pour.

Is A142 mesh suitable for villa ground floor slabs in UAE?

Yes — A142 is the most commonly specified mesh for residential villa ground floor slabs up to approximately 125 mm thick with standard residential loading, subject to your structural engineer's confirmation. For sites with expansive soils, heavy point loads, or elevated slabs, your engineer may specify A193 or A252. Always follow the project's structural drawings — do not substitute mesh grades without written engineer approval.

Sources & References

• BSI Group — BS 4483:2005 Steel Fabric for Reinforcement of Concrete
• ESMA — Emirates Authority for Standardisation and Metrology: Steel Reinforcement Conformity Requirements
• Dubai Municipality — Building Code: Structural Concrete and Reinforcement Requirements
